IP/RTP <-> ASI Gateway
Overview
SC-2232 IP-ASI Adapter/Gateway is one of the main equipments for digital TV head-end. It supports ASI input receiving data of DVB ASI transport stream from encoder, multiplexer, DVB gateway, scrambler, video server and other DVB head-ends, and outputs IP/RTP streams (TS over IP); and it can also support IP transport stream from network input and ASI TS stream output.
Main Feature
1. Full duplex
2. 8MB cache, anti-burst stream
3. Real-time stream monitoring
4. LCD/Keyboard control by front panel and network management by Ethernet

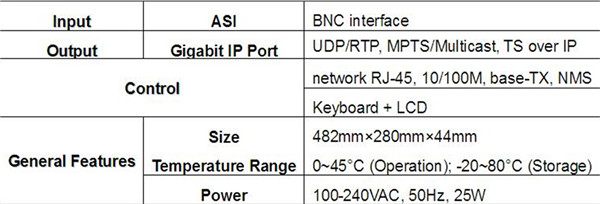

Technical Specification
Network Management
