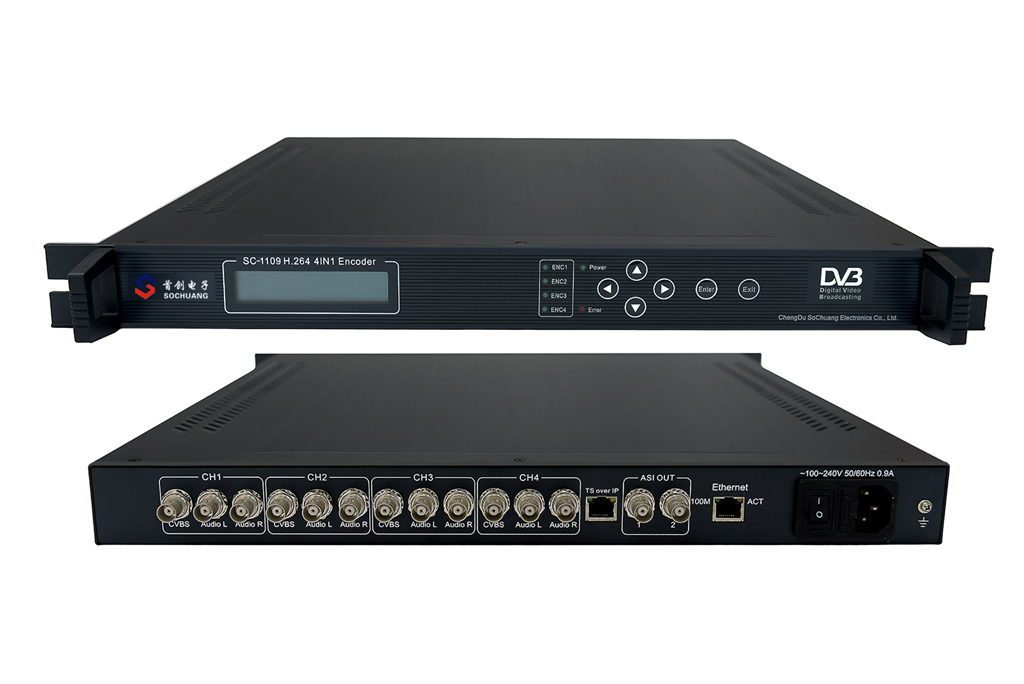

SC-1109 4IN1 H.264/MPEG-4 Encoder/4IN1 SD Encoder


Specification Word Download


Specification PDF Download


User Manual Download


4IN1 H.264/MPEG-4 Encoder

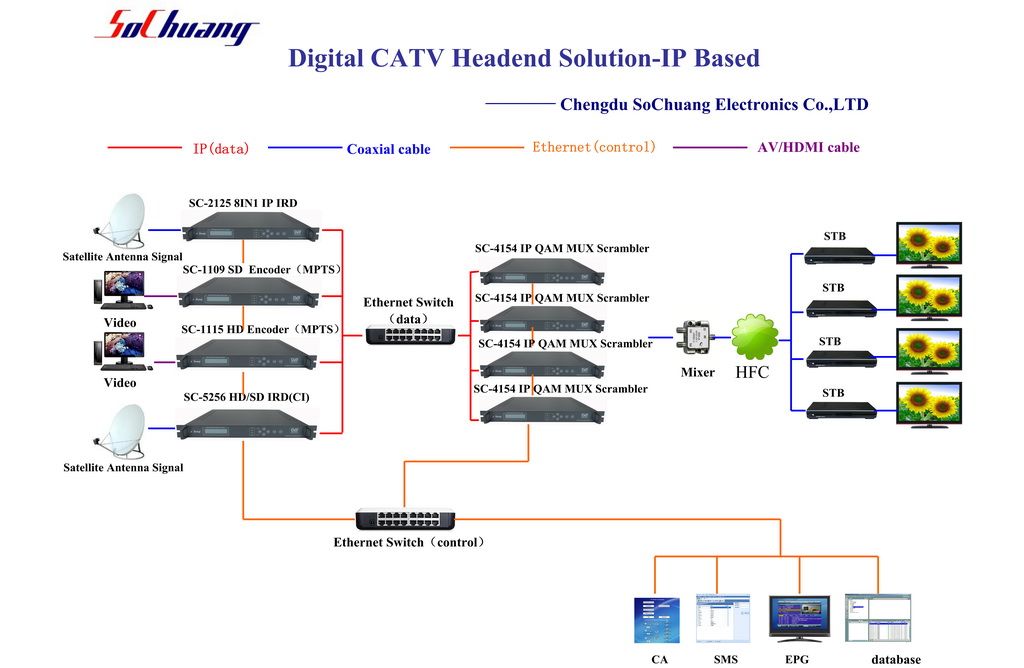

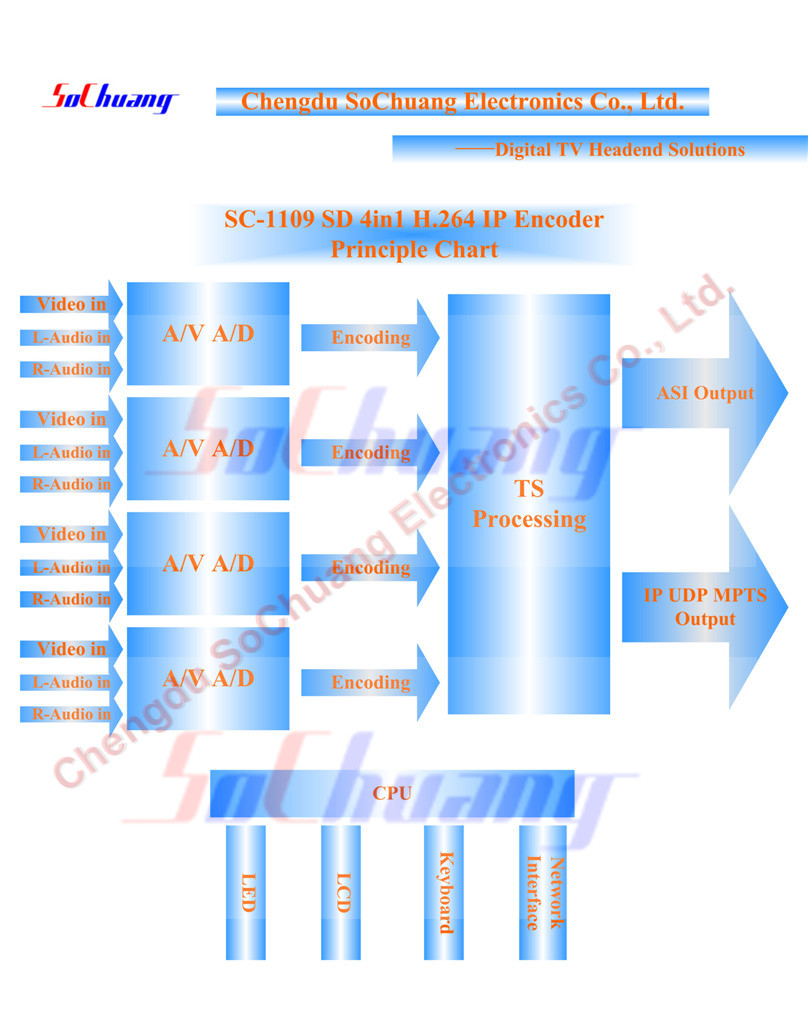

SC-1109 SD 4IN1 H.264/MPEG-4 AVC Encoder (with IP out) supports SD H.264/MPEG-4 AVC video and MPEG-1 audio encoding. It has 4 analog composite video and 4 pairs of unbalanced audio (mono or analog stereo) input interfaces and DVB transport stream (TS/ASI) and IP/MPTS (TS over IP) output interfaces. This encoder suits 1U rack and can be operated by front panel LCD and remotely controlled by Network Management Software. Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.


Main Feature

1. H.264/MPEG-4 AVC video and MPEG-1 audio encoding
2. 4*CVBS video and 4 pairs of unbalanced audio (high-fidelity mono/stereo) input
3. PID, program name and program number edit
4. Support NTSC and PAL video formats

5. LCD/Keyboard control by front panel and network management by Ethernet

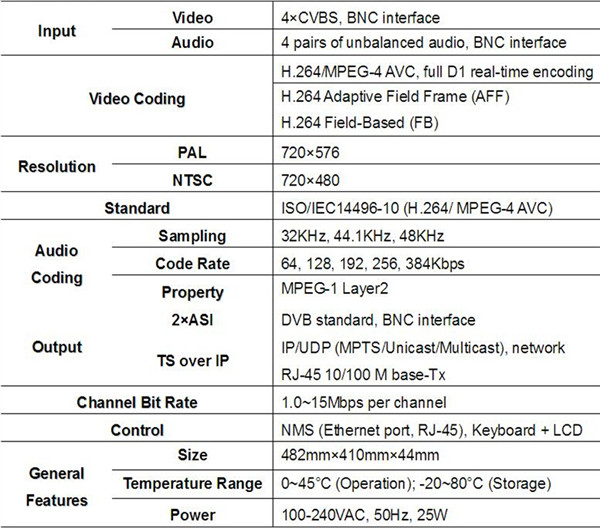

Technical Specification

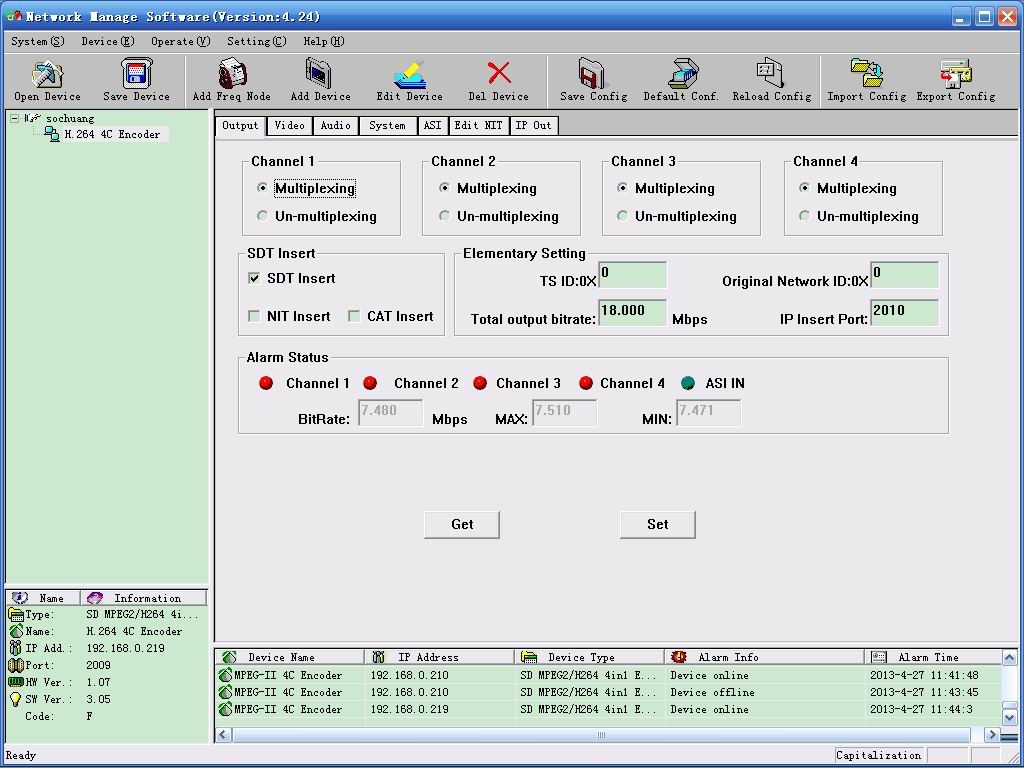

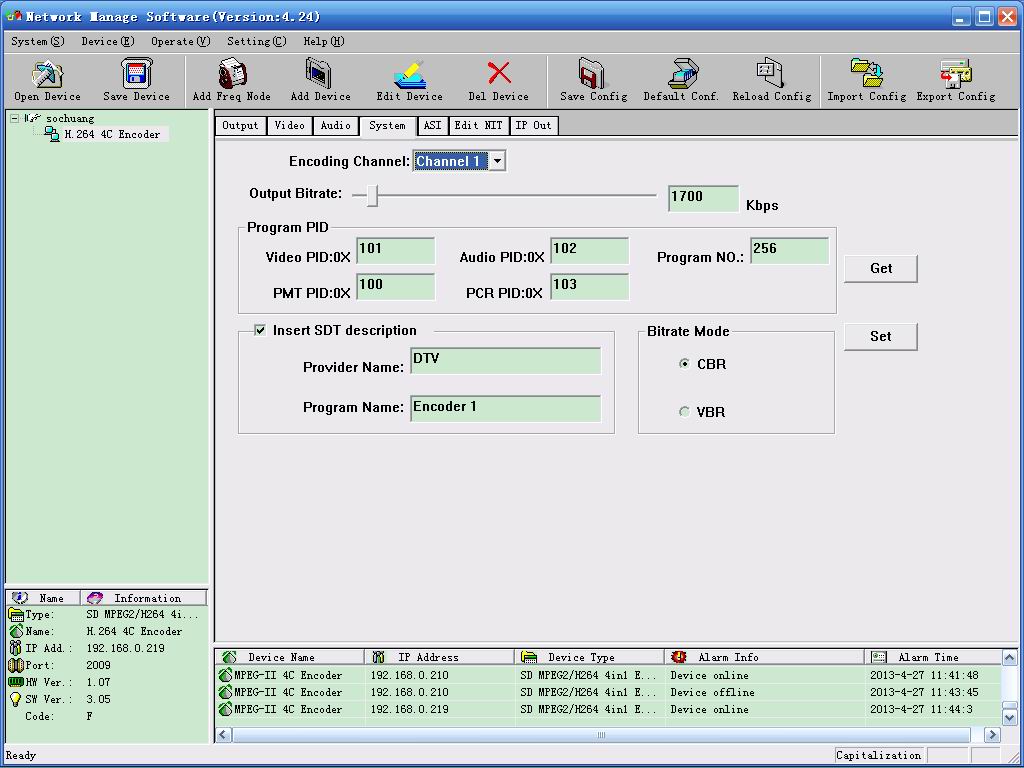

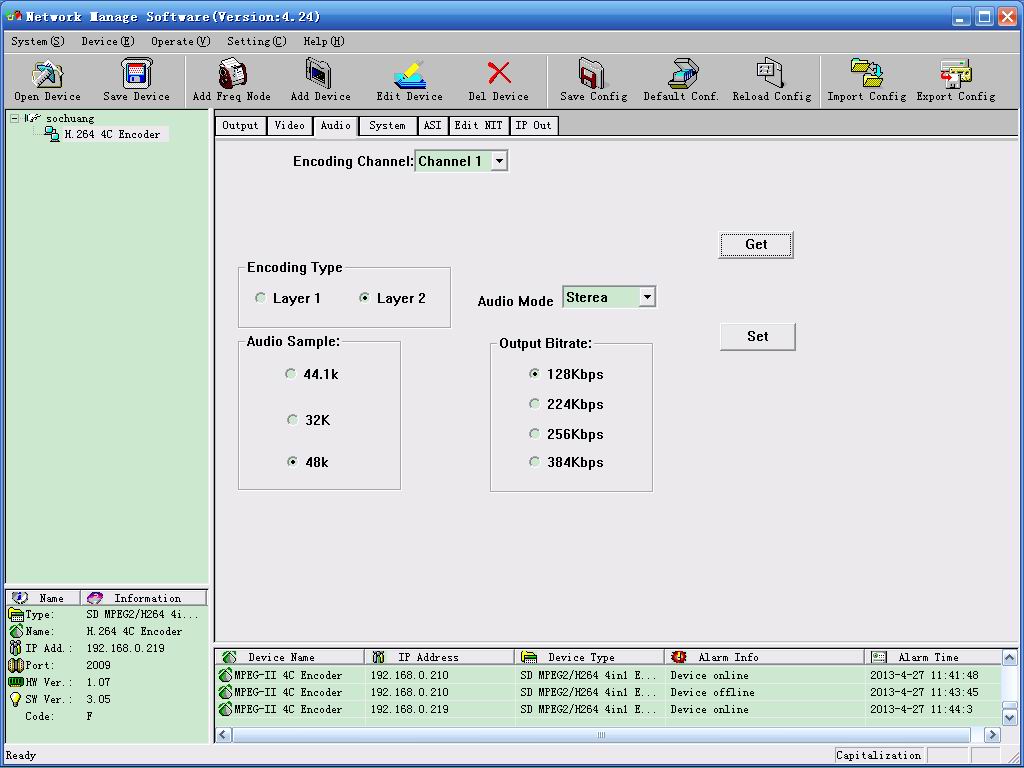

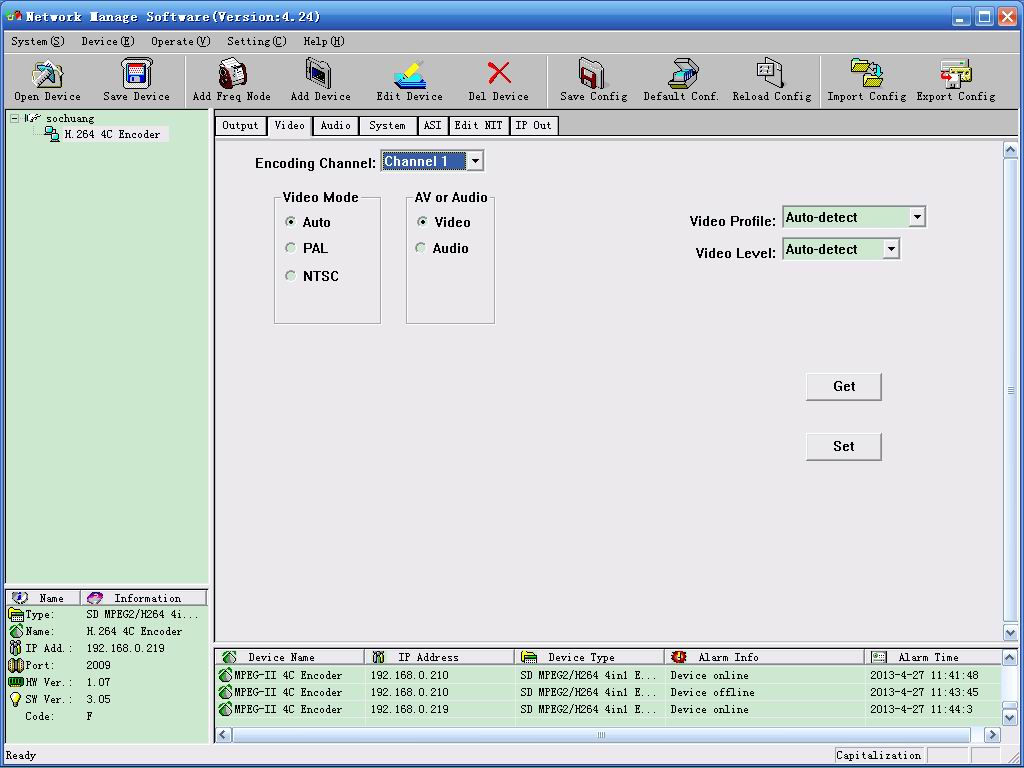

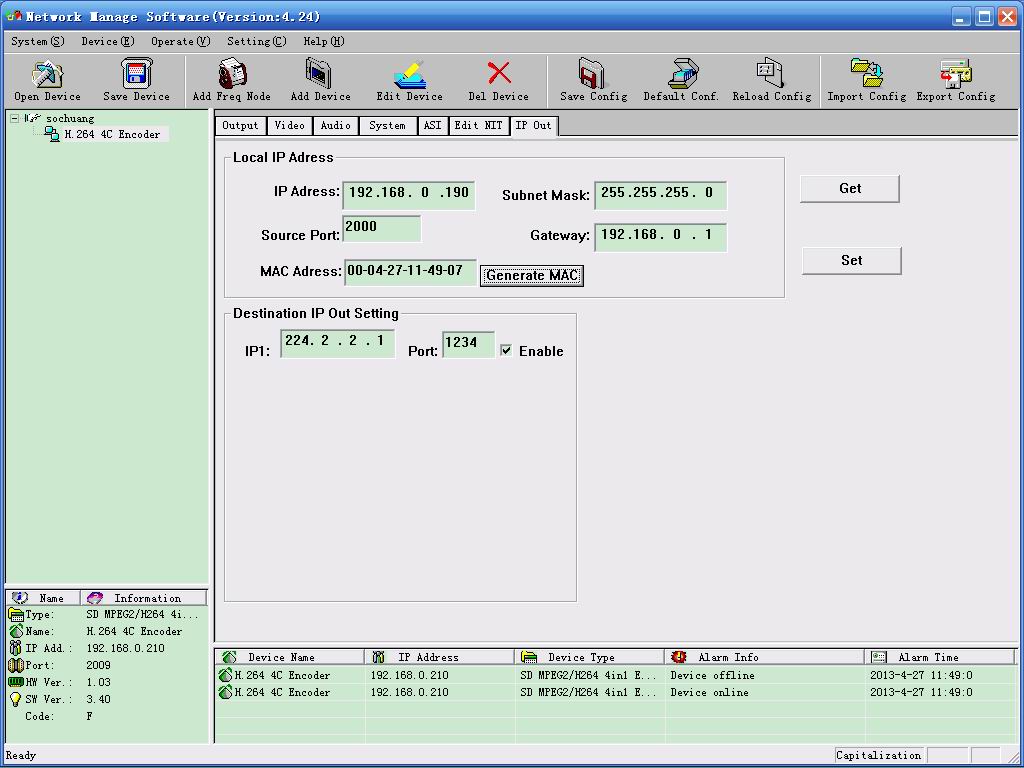

Network Management


1. Output



2. Video



3. Audio



4. System
