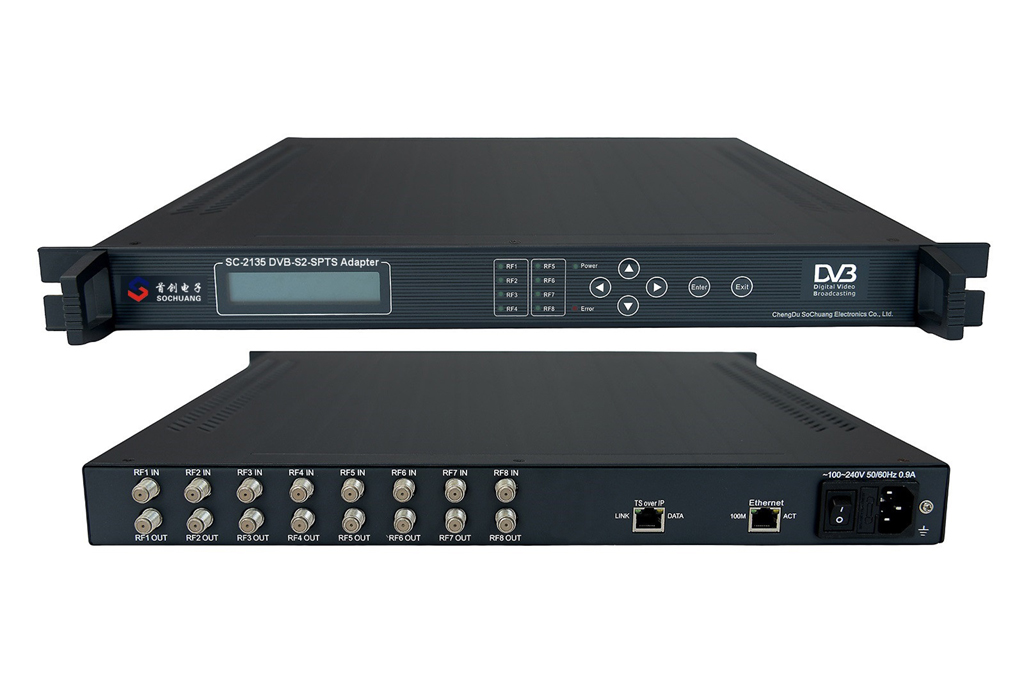

SC-2135 8*DVB-S/S2-64*SPTS IP Gateway(8*DVB-S2 in,64 UDP/multicast/Gigabit out)/Dish to IP Converter /RF to IP For Hotel IPTV,Streaming Server

8*DVB-S/S2-64*SPTS IPTV Gateway

Overview

SC-2135 8in1 DVB-S/S2 IP receiver (IRD) is one of the main equipments for digital TV head-end. It can receive 8 channels DVB-S/S2 signal (RF) transponders and output 64*SPTS IP transport stream (TS over UDP). It can convert 64 programs and is mainly applied to IPTV live broadcast system.

Main Feature

1. 8*DVB-S or 8*DVB-S2 RF (optional) input

2. 64*SPTS (Gigabit, Multicast, TS over UDP) output

3. Maximum 188*7 package supported

4. LCD/Keyboard control by front panel and network management by Ethernet

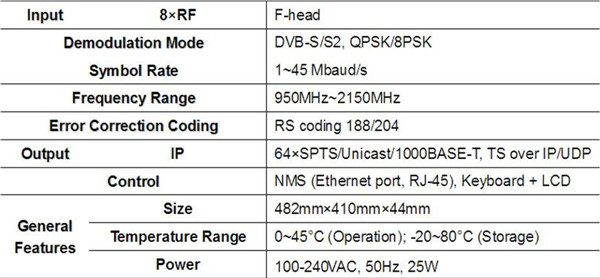

Technical Specification

Network Management

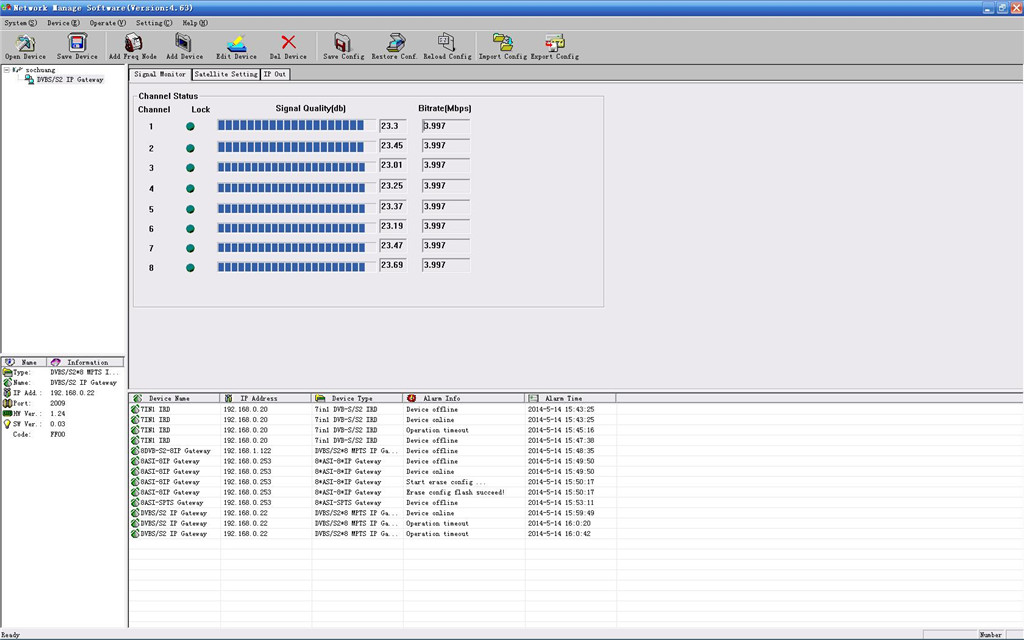

1. Signal Monitor

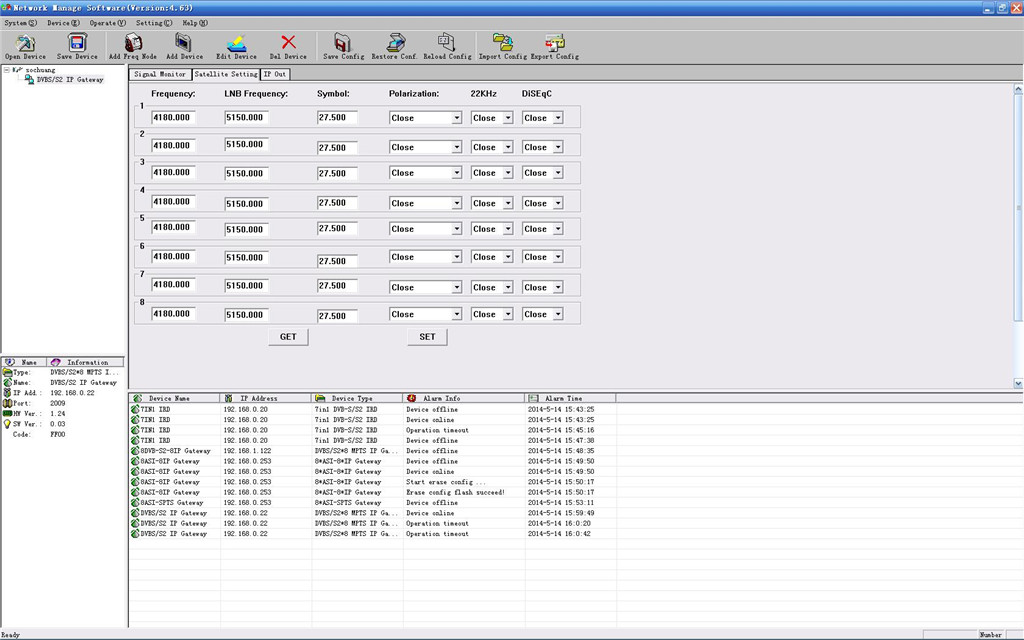

2. Satellite Setting

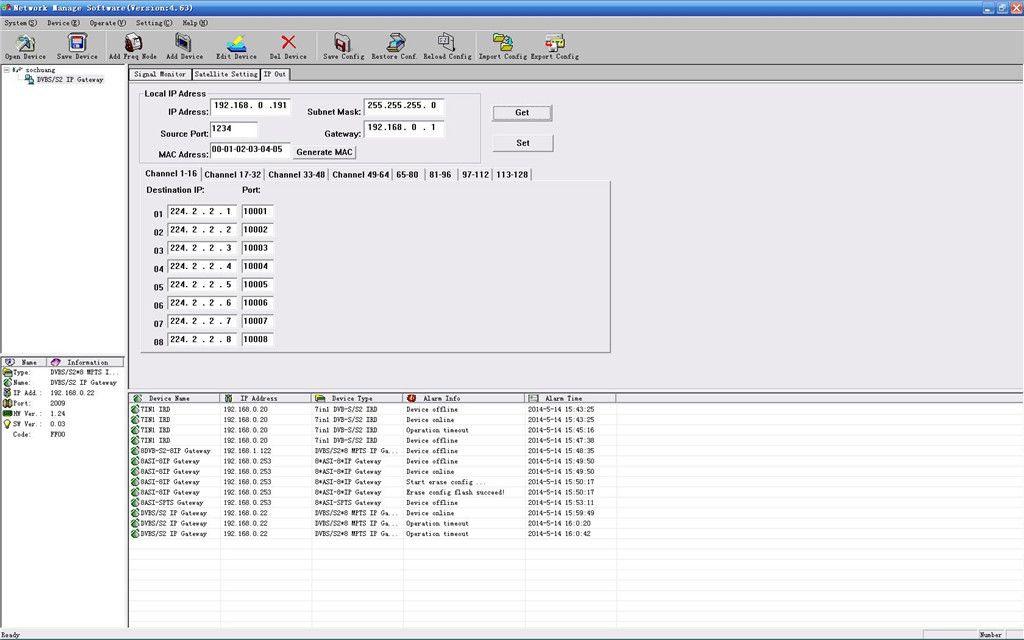

3. IP OUT
