4IN1 HD H.264 IP Encoder
Overview

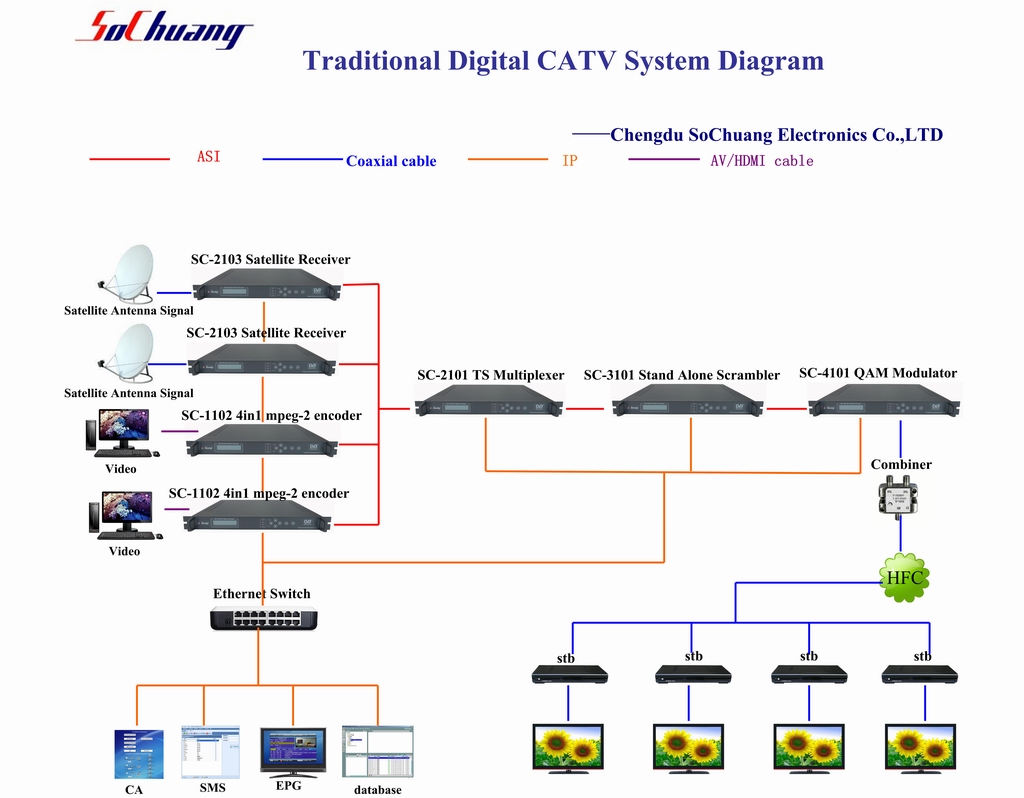

SC-1115 4IN1 MPEG-4 AVC/H.264 HD (High Definition) Encoder (with IP output) supports 4*HDMI input, and generates DVB transport stream (TS/ASI) and IP (TS over IP) output. It suits 1U rack and supports1080i/p, 720p and HDCP. Besides, SC-1115 can be operated by both LCD/Keyboard and NMS (Network Management Software). Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.
Main Feature
1. H.264/MPEG-4 AVC High Profile Level 4.0 video encoding, advanced video pretreatment algorithm, MPEG-1 audio encoding
2. 4*HDMI+ASI input
3. Support HDCP
4. Support multiple HD formats including 1080i/p and 720p
5. LCD/Keyboard control by front panel and network management by Ethernet

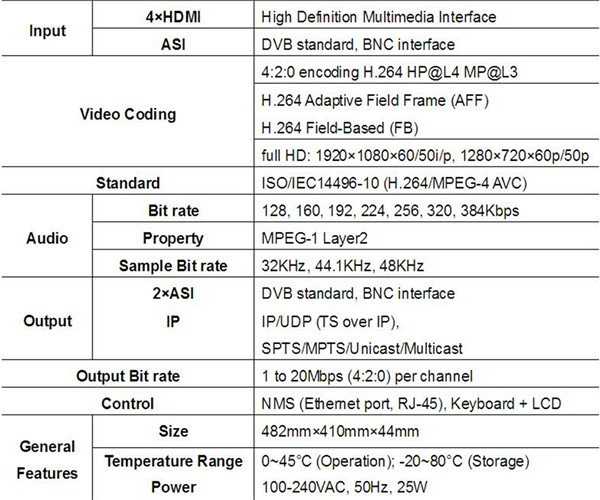

Technical Specification

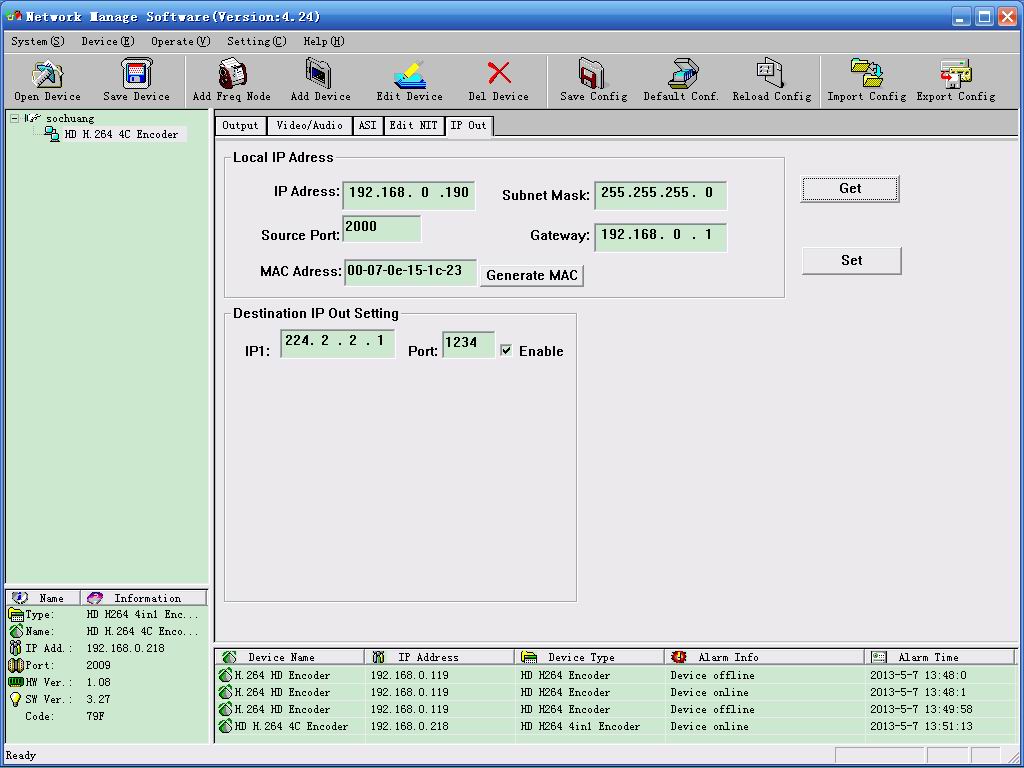

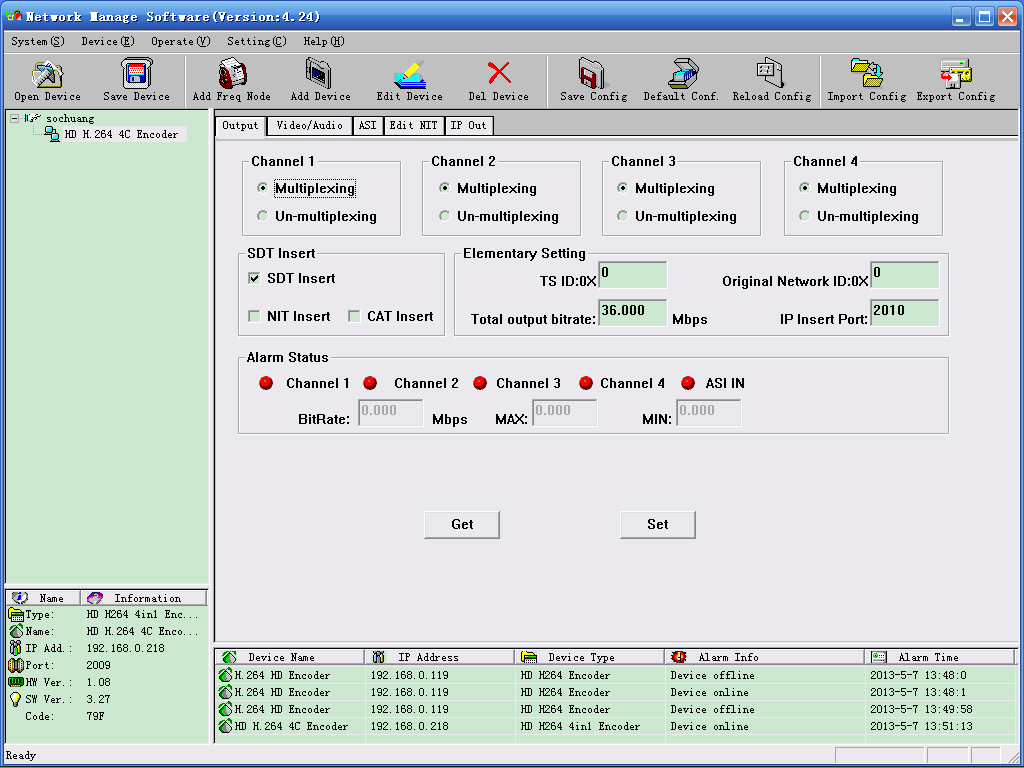

Network Management
1. Output
2. Video/Audio
