4-IN-1 HD-SDI H.264 IP Encoder
Overview

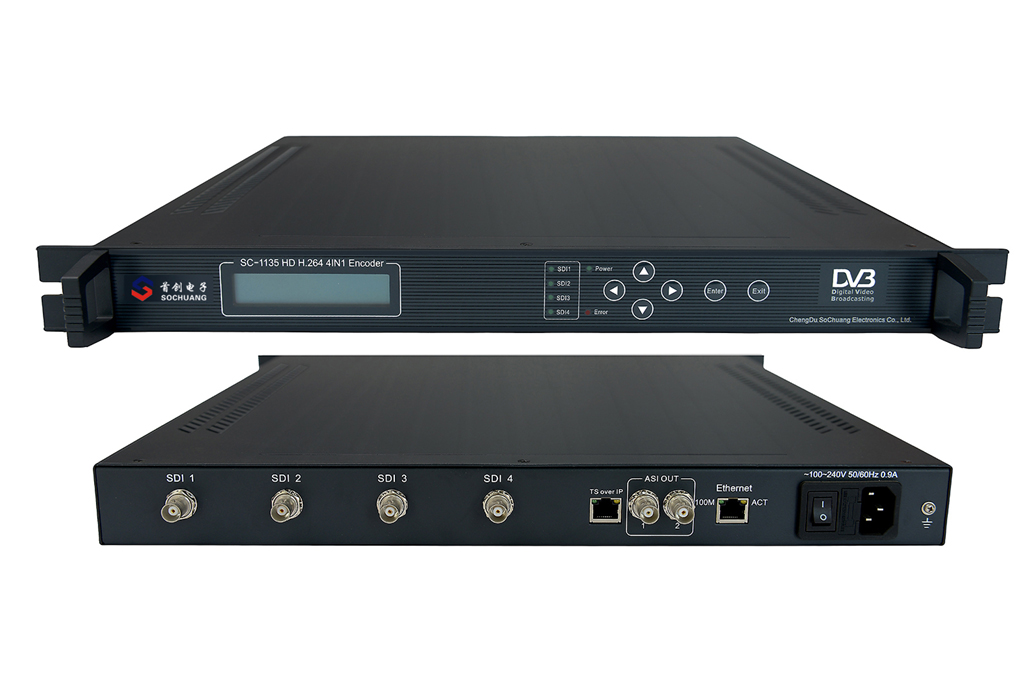

SC-1135 4IN1 HD-SDI H.264 IP Encoder has 4*SDI input and generates DVB transport stream (TS/ASI) and MPTS (TS over IP) output. It supports multiple HD formats including 1080i/p and 720p. It suits 1U rack and provides LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.
Main Feature
1. H.264/MPEG-4 AVC High Profile Level 4.0 video encoding, advanced video pretreatment algorithm, MPEG-1 audio encoding
2. 4*SDI input
3. Support multiple HD formats including 1080i/p and 720p
4. LCD/Keyboard control by front panel and network management by Ethernet

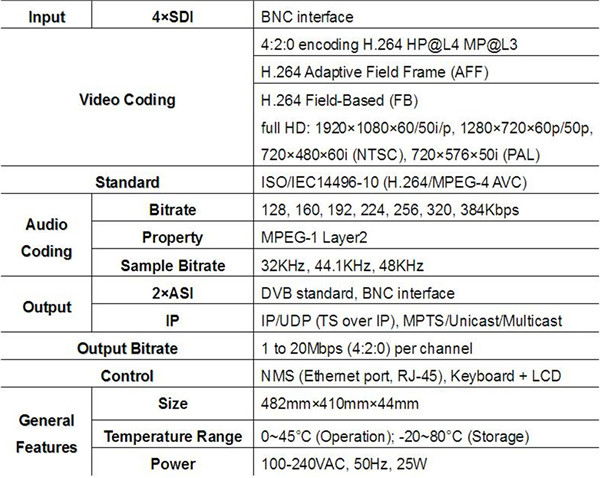

Technical Specification
Network Management

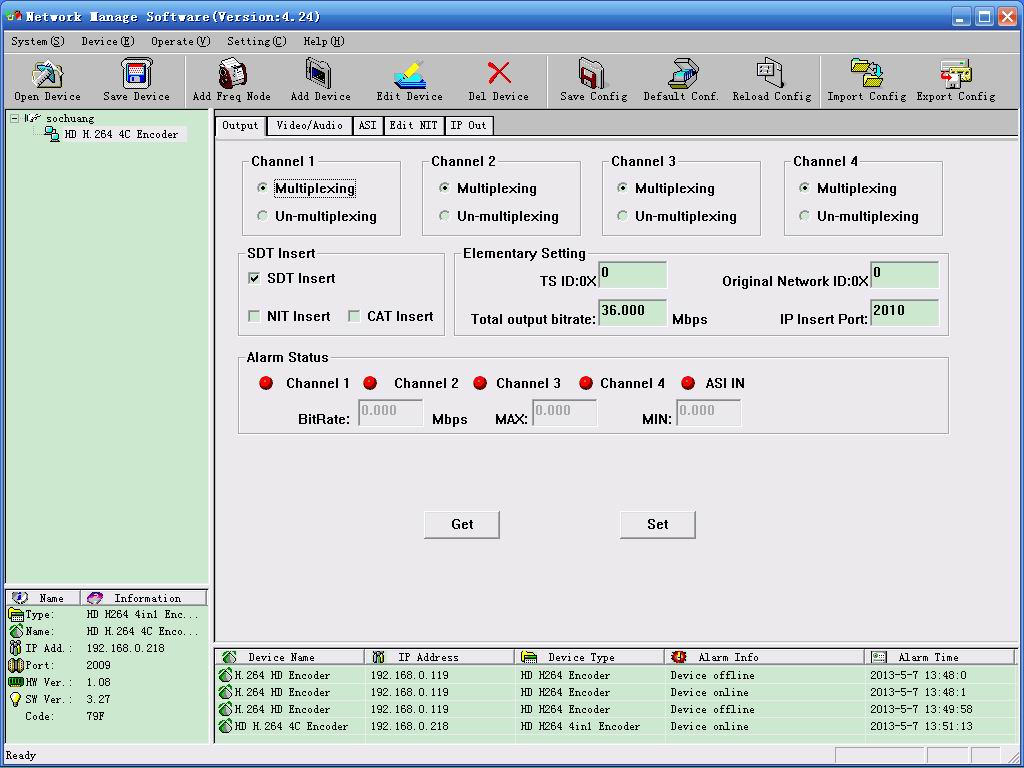

1. Output

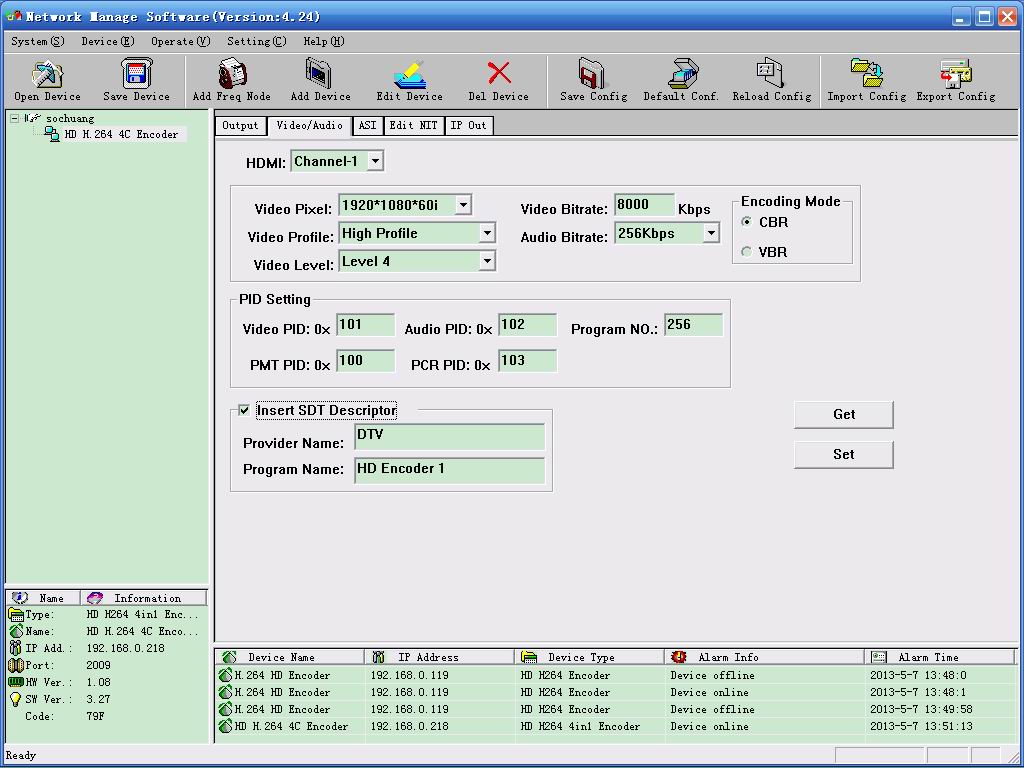

2. Video/Audio

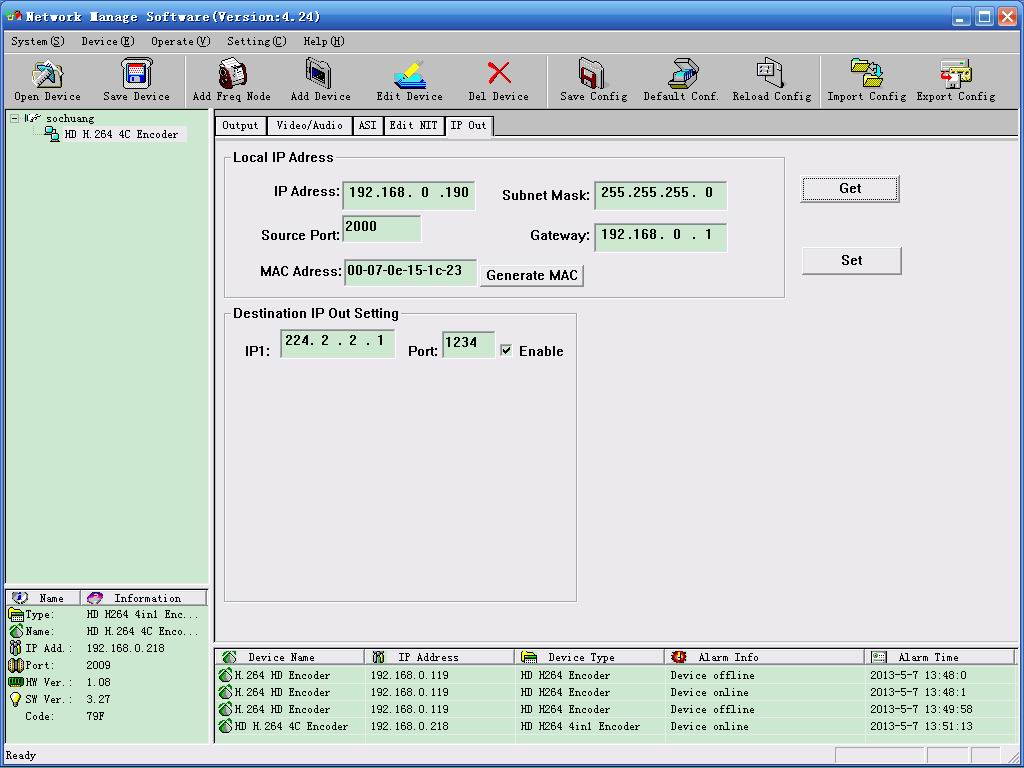

3. IP OUT
