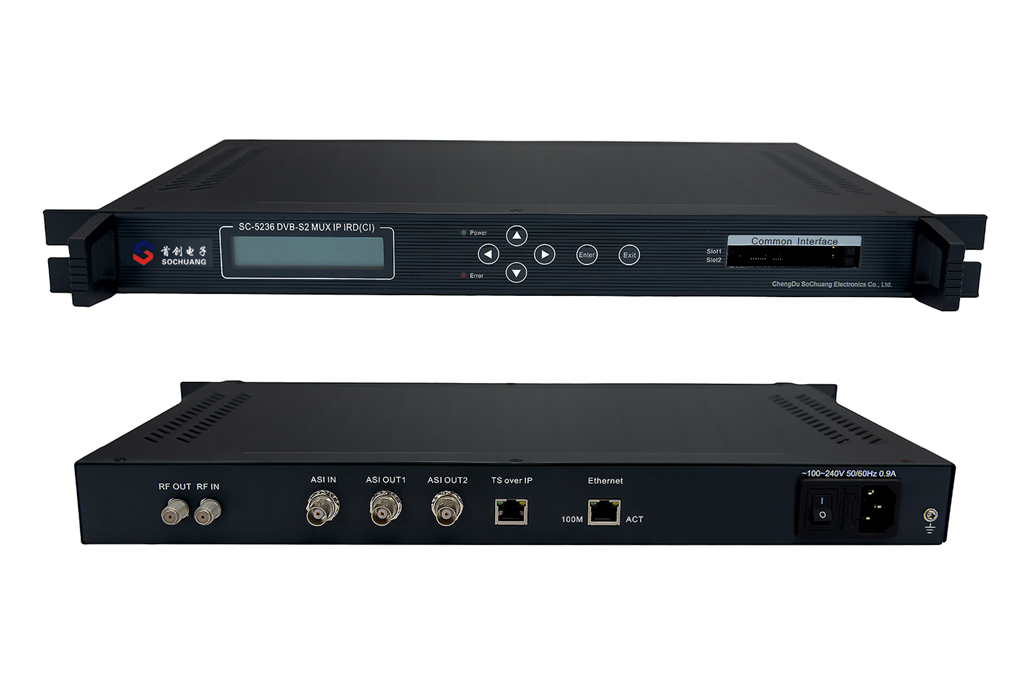

SC-5236 DVB-S2 MUX CI-IRD(RF+ASI multiplex,ASI+IP(MPTS/unicast/multicast)out)

DVB-S2 MUX CI-IRD

Overview

SC-5236 DVB-S/S2 IP MUX IRD supports 1*DVB-S/S2 RF and 1*ASI (mux) input. It has 2*CI interfaces and supports multi-type of CAM cards. It can output ASI and IP (MPTS, TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.

Main Feature

1. Support DVB-S/DVB-S2/ASI (mux) input

2. Support ASI/TS over UDP output

3. Common interface with 2 slots (PCMCIA) supports multi-type of CAM cards

4. 2 slots of PCMCIA module could descramble multi-program stream

5. Frequency Range: 950~2150Mhz

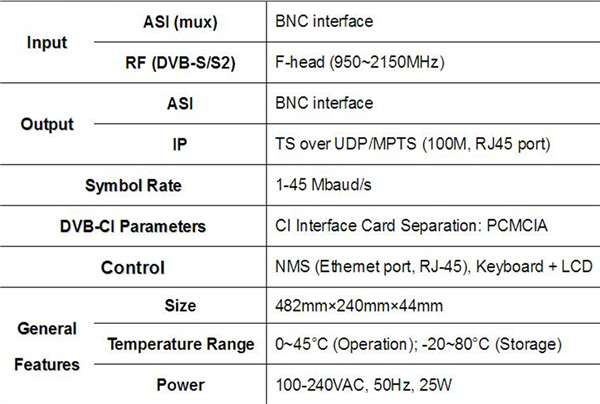

Technical Specification

Network Management

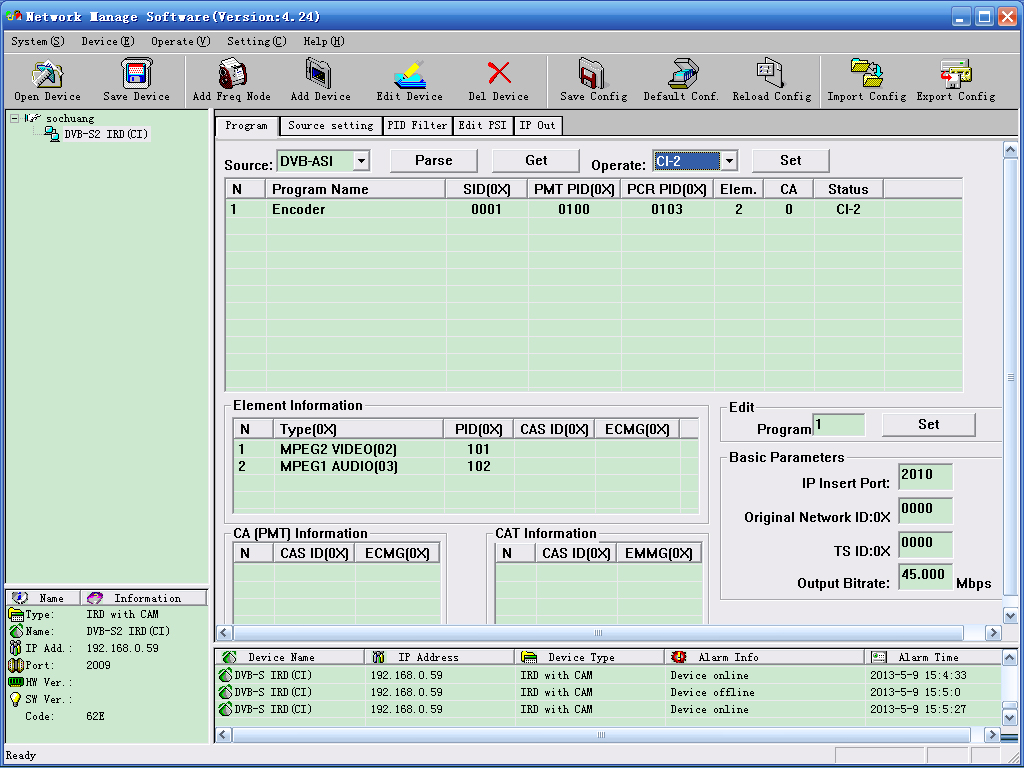

1. Program

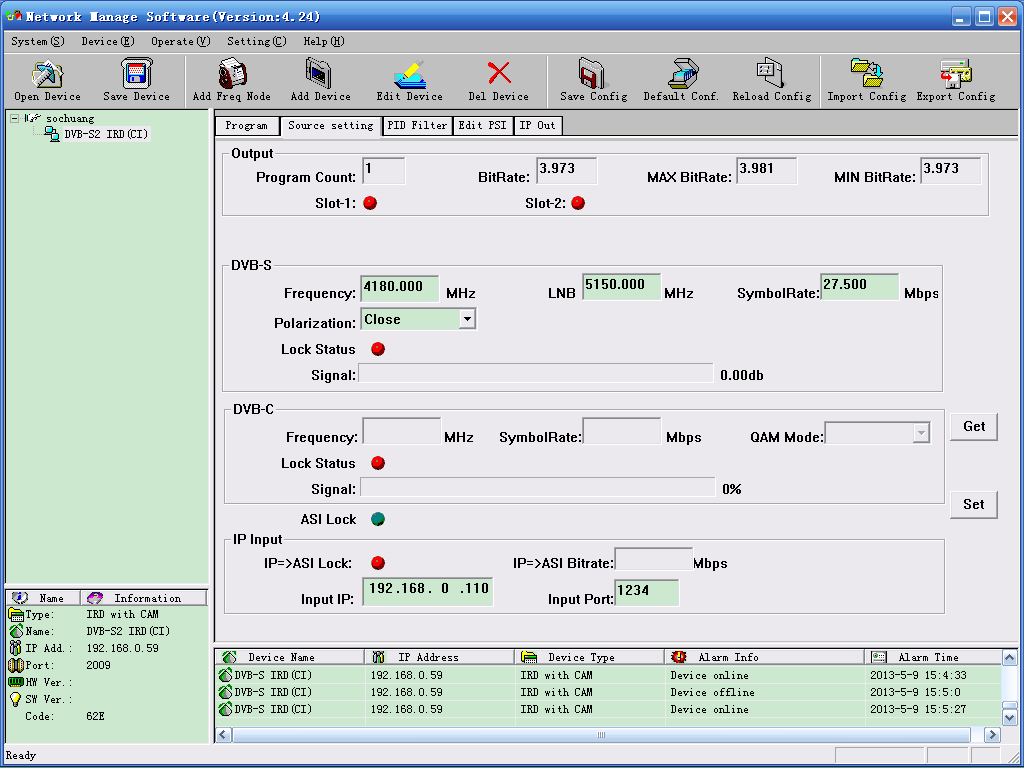

2. Source Setting

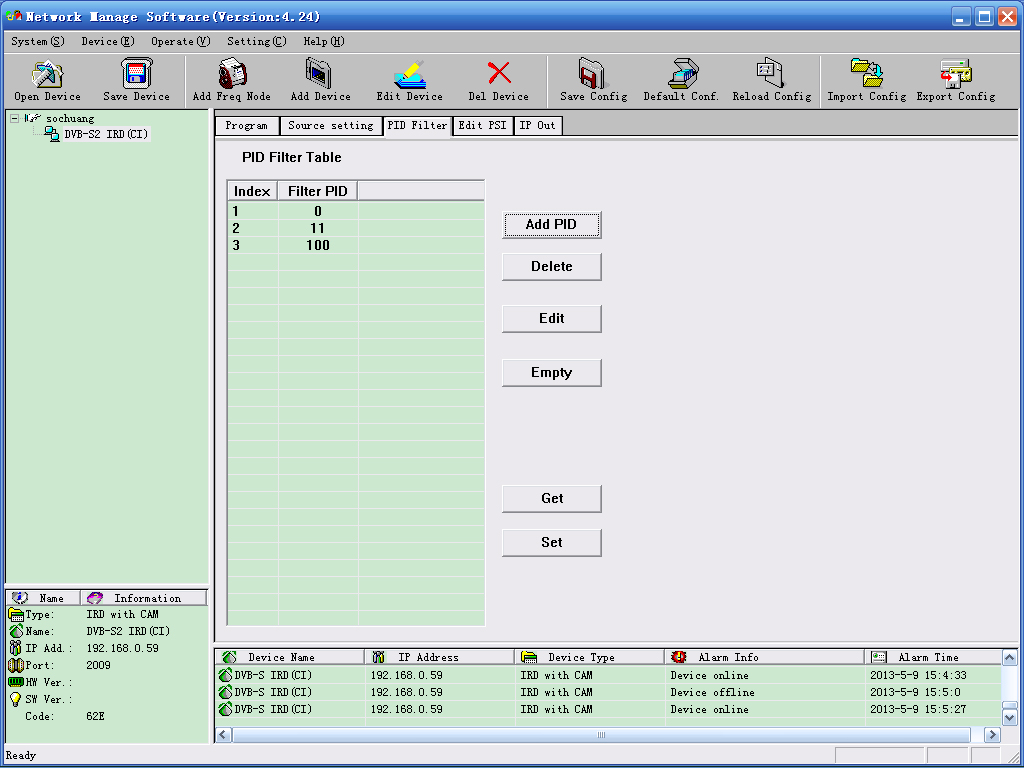

3. PID Filter

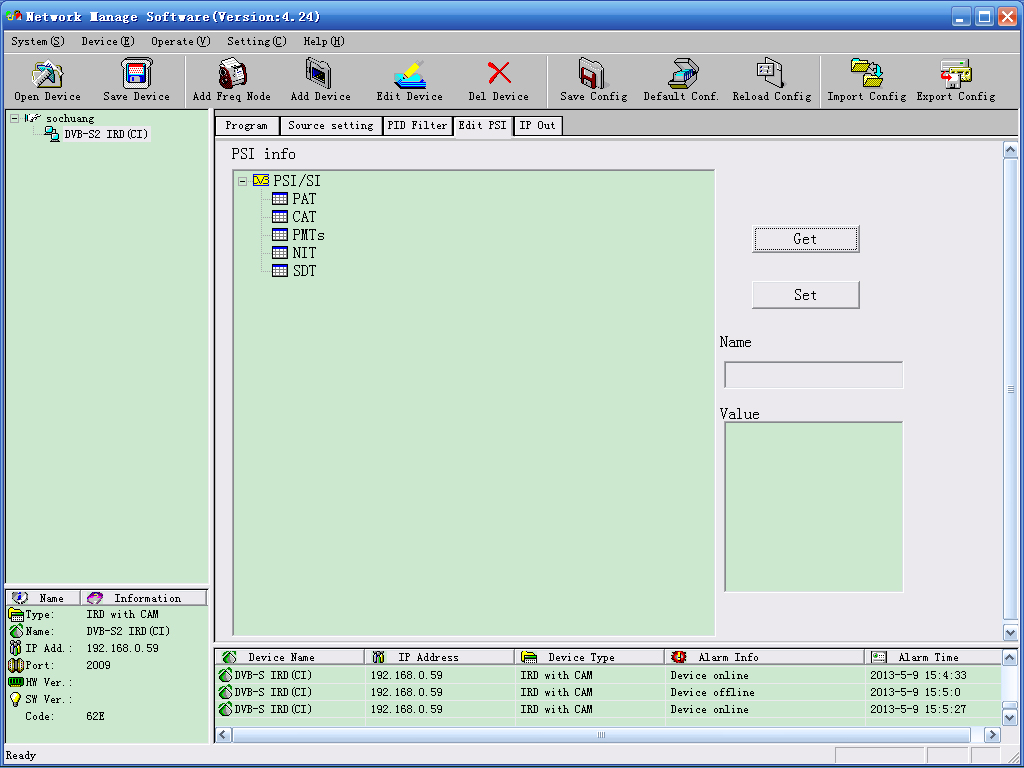

4. Edit PSI

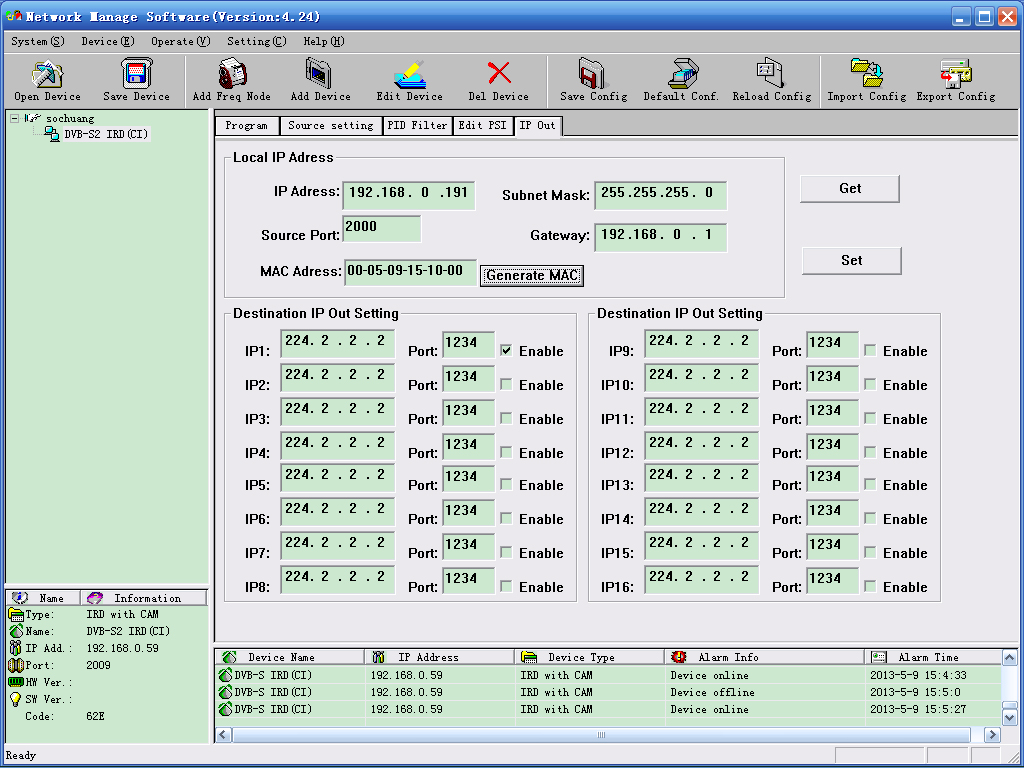

5. IP OUT
