HD H.264 IP Encoder
Overview

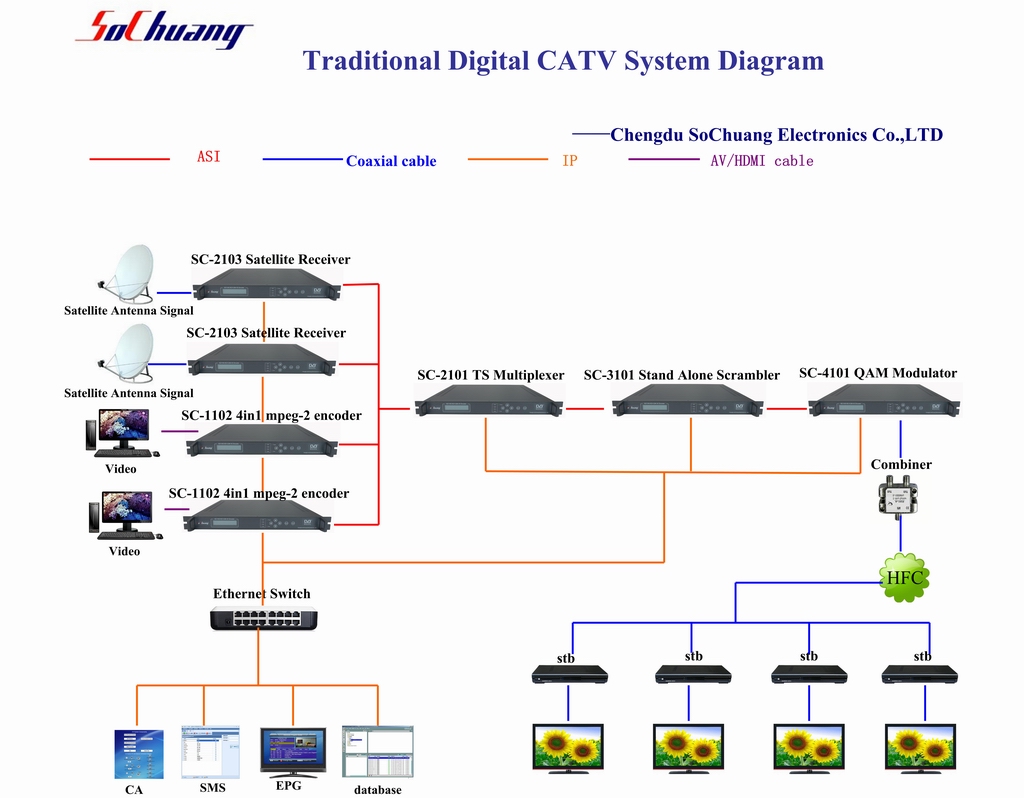

SC-1105 MPEG-4 AVC/H.264 high definition (HD) Encoder has 1*HD SDI, 1*HDMI, 1*HD YPbPr, 1*SD CVBS and one pair of unbalanced audio input interfaces and DVB Transport Stream (TS/ASI) and IP (TS over IP) output interfaces, supporting multiple HD formats including 1080i/p and 720p. It suits 1U rack and can be remotely controlled by Network Management Software. Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.
Main Feature
1. H.264/MPEG-4 AVC High Profile Level 4.0 video coding, advanced video pretreatment algorithm, and MPEG-1 audio encoding
2. HDMI/YPbPr/SDI/CVBS + audio input
3. Support HDCP
4. Support PAL and NTSC video formats
5. Support multiple HD formats including 1080i/p and 720p
6. LCD/Keyboard control by front panel and NMS management by Ethernet

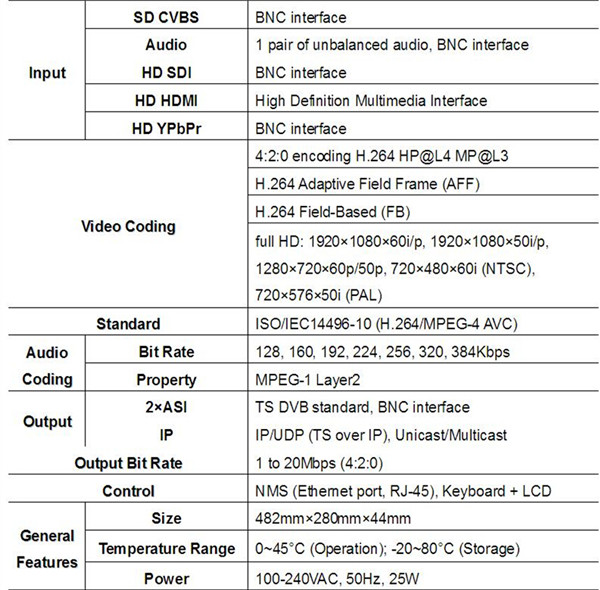

Technical Specification
Network Management
1. Video/Audio
