SC-2125 DVB-S/S2*8-8*MPTS IRD(8*DVB-S2 in,UDP/multicast/Gigabit out)


Specification Word Download


Specification PDF Download


User Manual Download


8*DVB-S/S2-8*MPTS IP Gateway

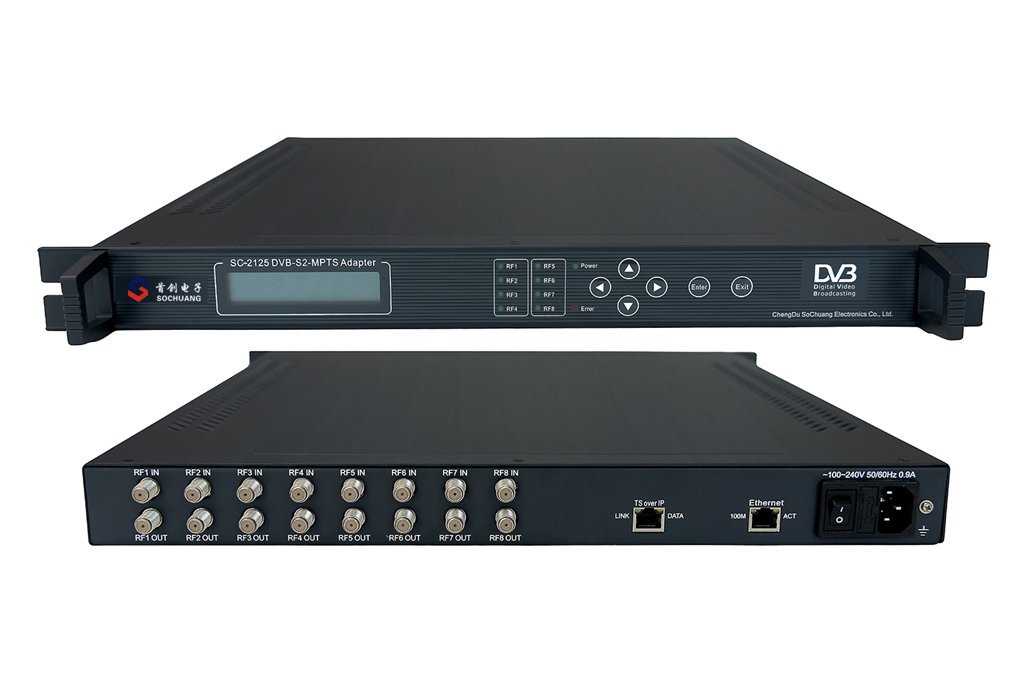

SC-2125 8*DVB-S/S2 to 8*MPTS IP Gateway can receive 8*DVB-S/S2 signal (RF) transponders and output 8*MPTS IP transport stream (TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.


Main Feature

1. 8*DVB-S or 8*DVB-S2 RF (optional) input
2. 8*MPTS (Gigabit, Multicast, TS over UDP) output
3. Maximum 188*7 package supported
4. LCD/Keyboard control by front panel and network management by Ethernet

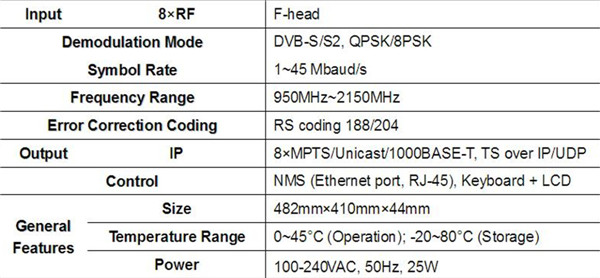

Technical Specification
Network Management
1. Signal Monitor
2. Satellite Setting
