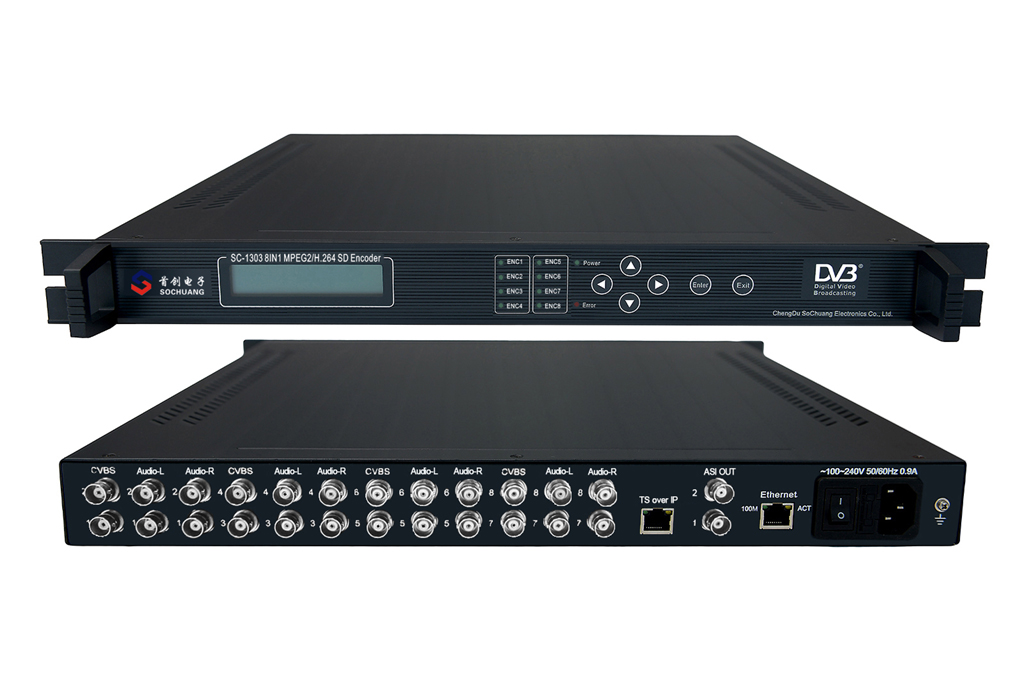

SC-1303 SD MPEG2/H.264 Magnum 8IN1 Super Encoder
Overview
SC-1303 SD 8IN1 MPEG-2/H.264 encoder has 8 channels analog composite video and 8 pairs of unbalanced audio (mono or stereo) input, supporting MPEG-2/H.264 video and MPEG-1 audio encoding, to generate DVB transport stream (TS/ASI) and MPTS (TS over IP) output. It uses Magnum chipset, supporting low bitrate. This encoder suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.
Main Feature
1. Magnum chipset, supporting low bitrate
2. H.264/MPEG-2 video and MPEG-1/HE-AAC audio encoding
3. 8*CVBS and 8 pairs of unbalanced audio (8*AV) input
4. PID, program name and program number edit
5. LCD/Keyboard control by front panel and network management by Ethernet

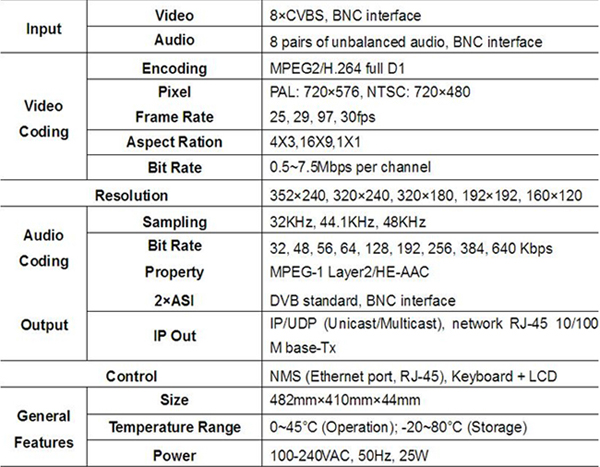

Technical Specification
Network Management

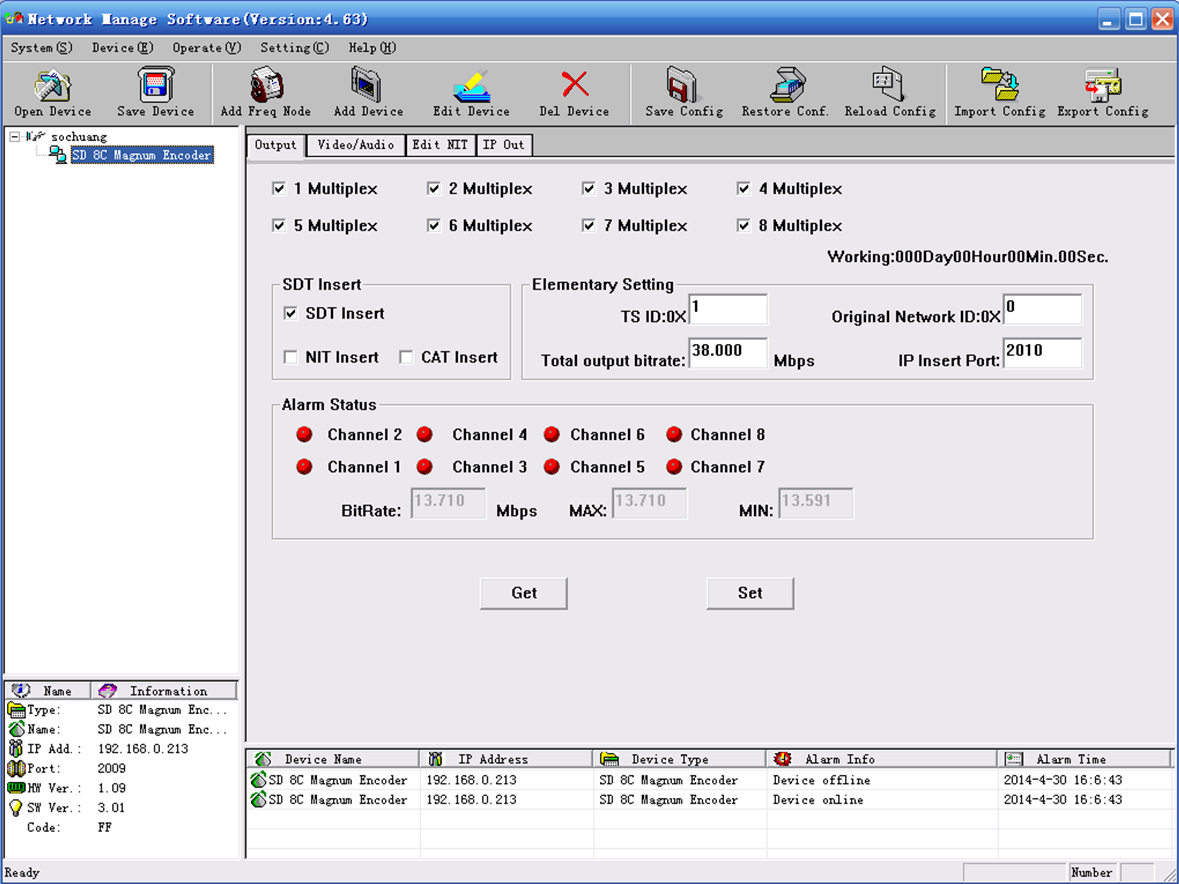

1. Output Setting

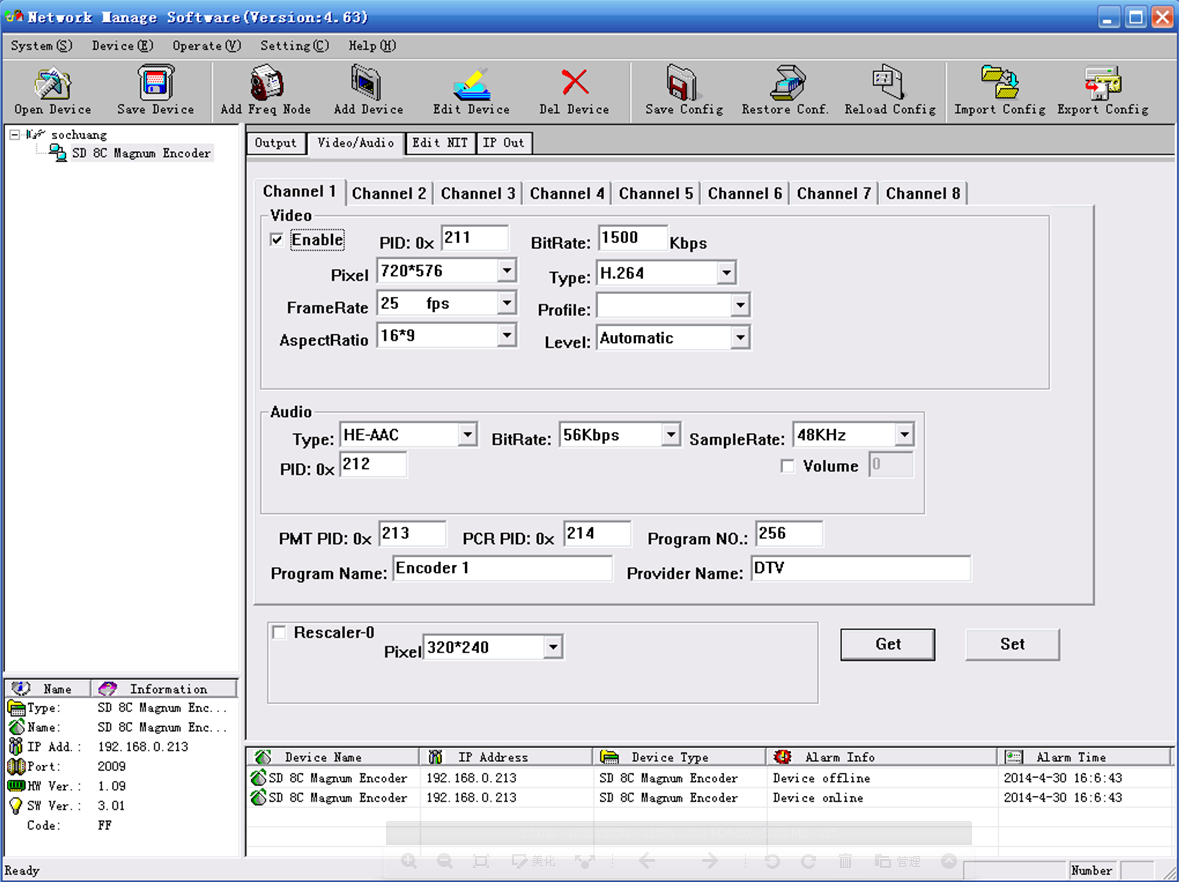

2. Video Audio

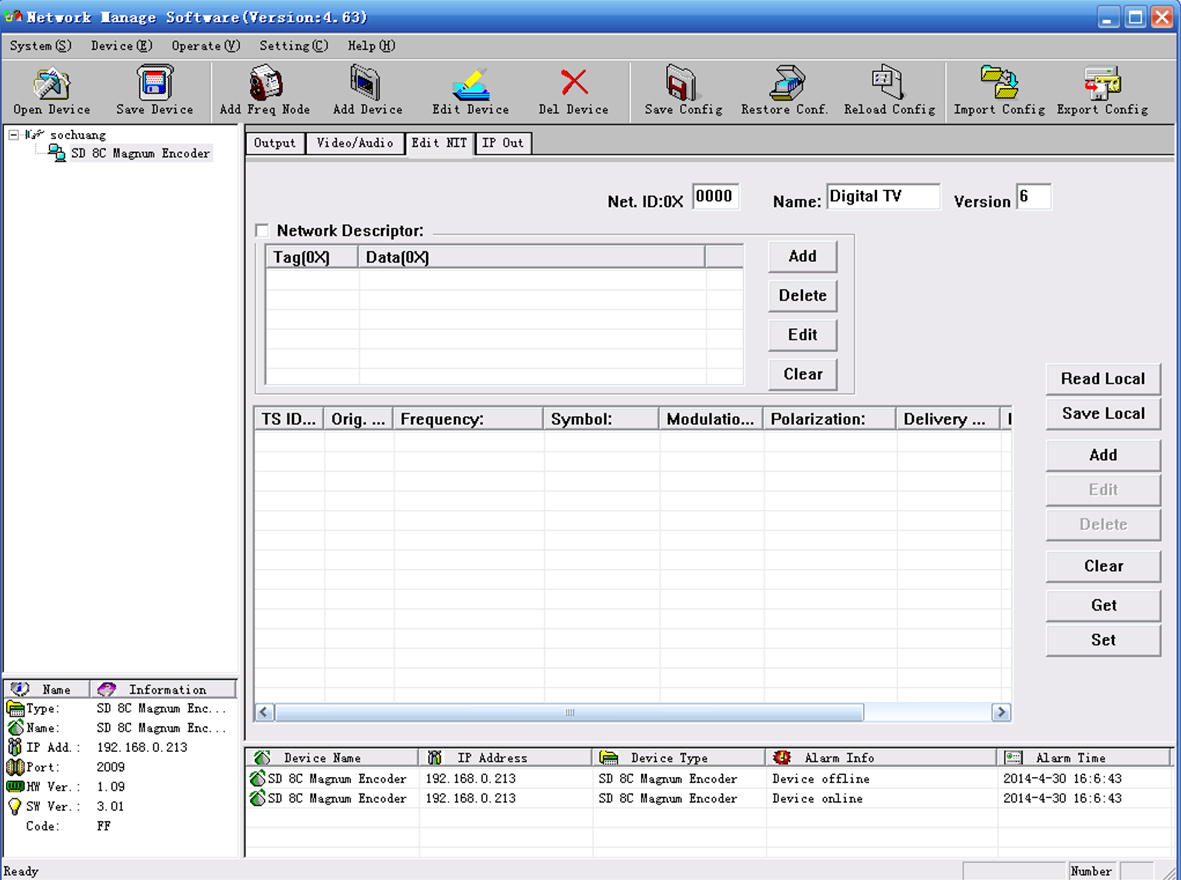

3. Edit NIT

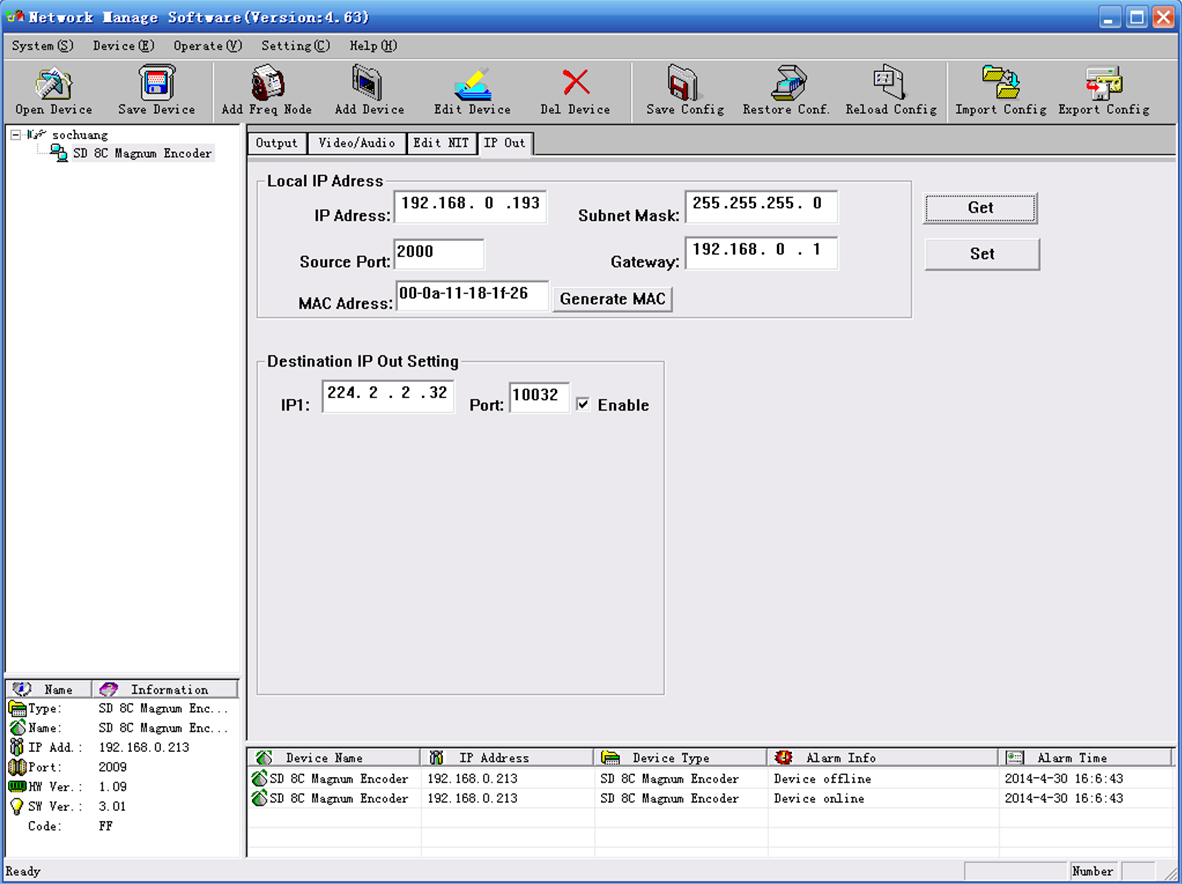

4. IP OUT
