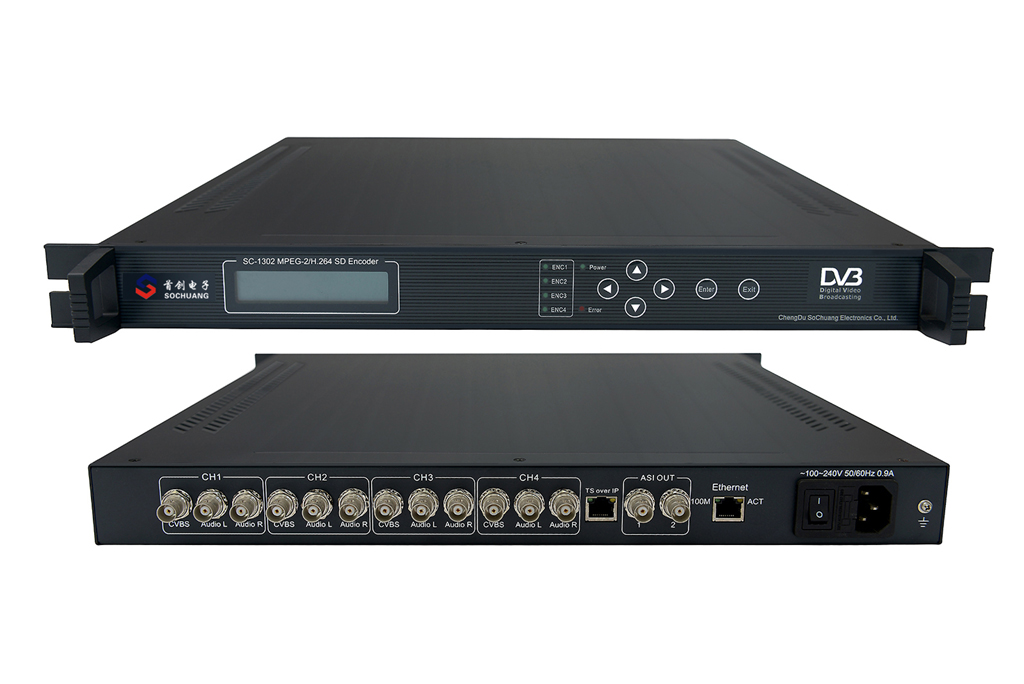

SC-1302 SD MPEG2/H.264 Mangnum 4-Channel Super IPTV Encoder


Specification Word Download


Specification PDF Download


User Munual Download


SD 4-Channel Magnum Low Bitrate MPEG2/H.264 Encoder

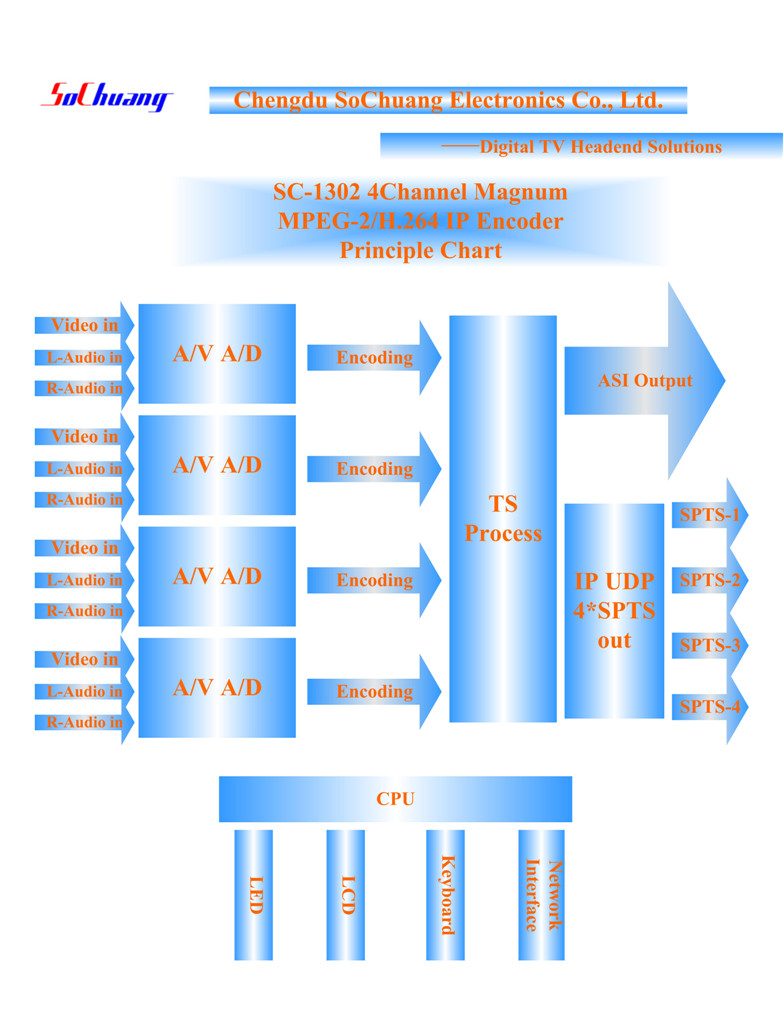

SC-1302 SD MPEG-2/H.264 Magnum 4-Channel Super IPTV Encoder has 4 channels analog composite video and 4 pairs of unbalanced audio (mono or stereo) input, supporting MPEG-2/H.264 video and MPEG-1 audio encoding, to generate DVB transport stream (TS/ASI) and 4*SPTS (TS over IP) output. It uses Magnum chipset and can support low bitrate. Besides, it suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.


Main Feature

1. Magnum chipset, supporting low bitrate
2. MPEG-2/H.264 video and MPEG-1 /HE-AAC audio encoding
3. 4*CVBS and 4 pairs of unbalanced audio input
4. PID, program name and program number edit

5. LCD/Keyboard control by front panel and network management by Ethernet

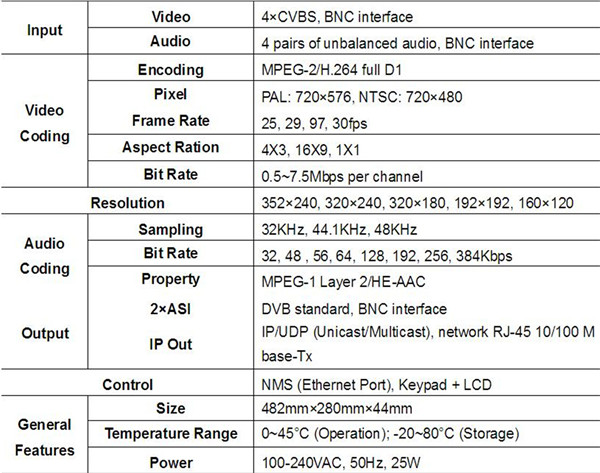

Technical Specification


Network Management

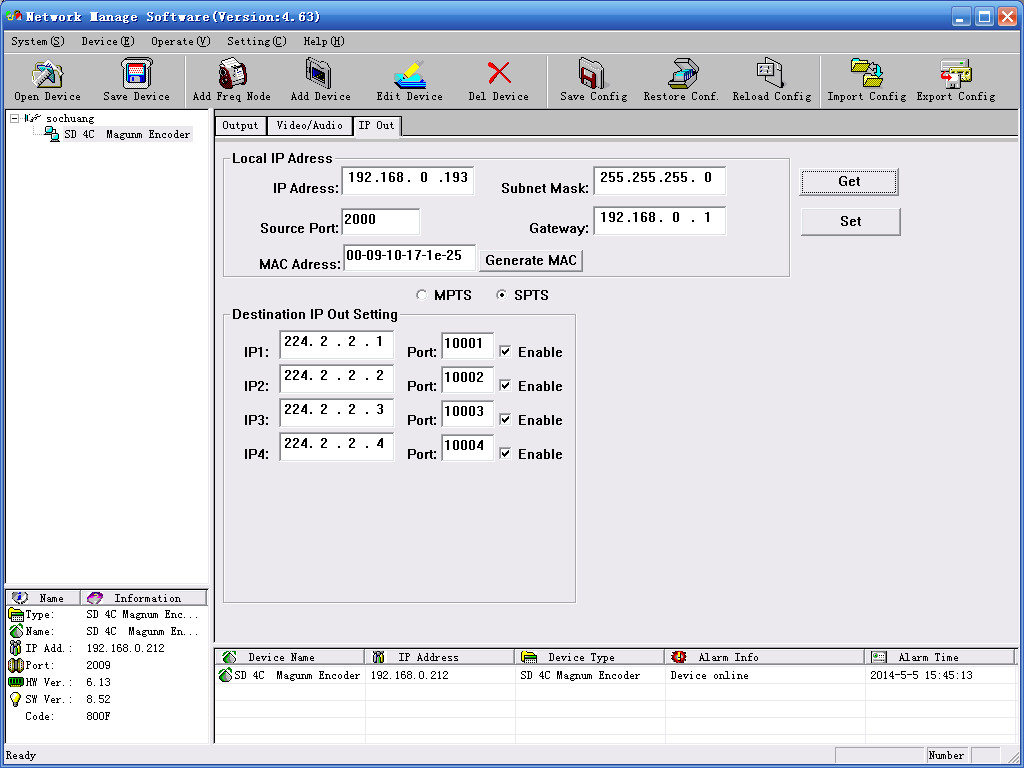

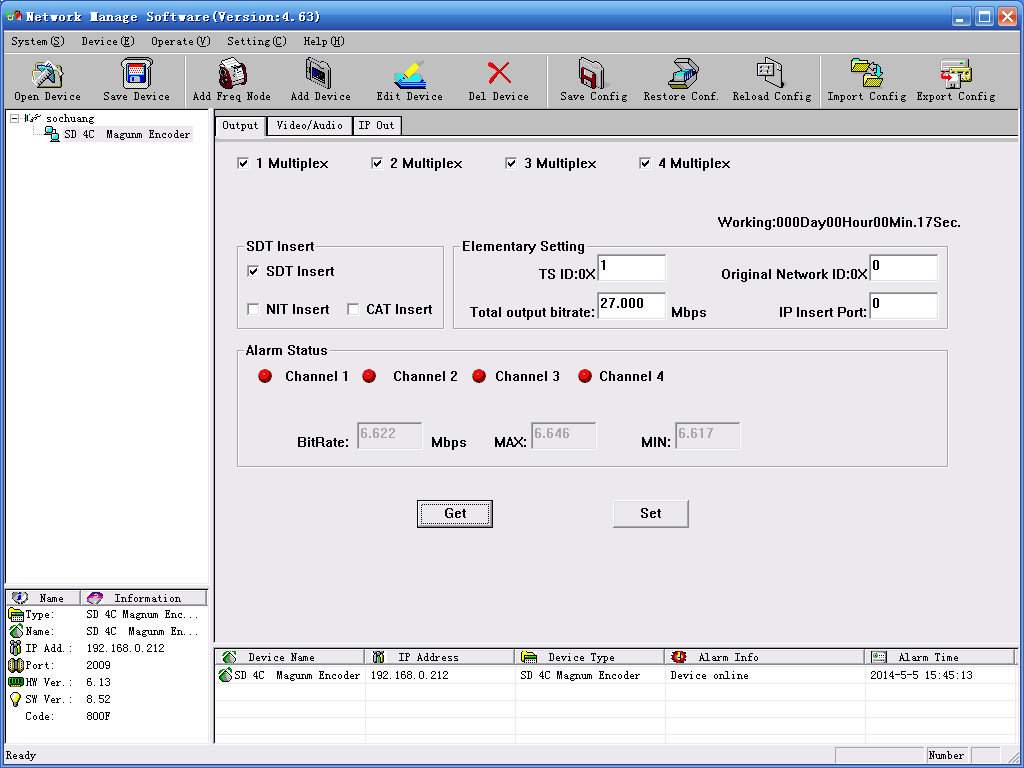

1. Output

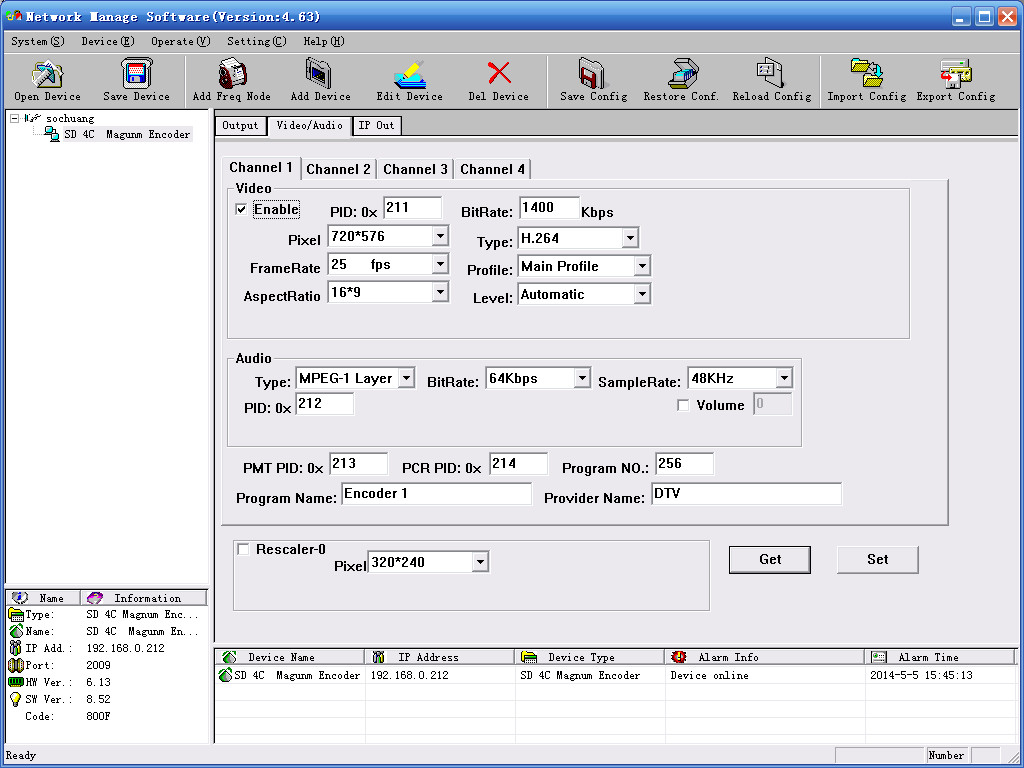

2. Video/Audio
