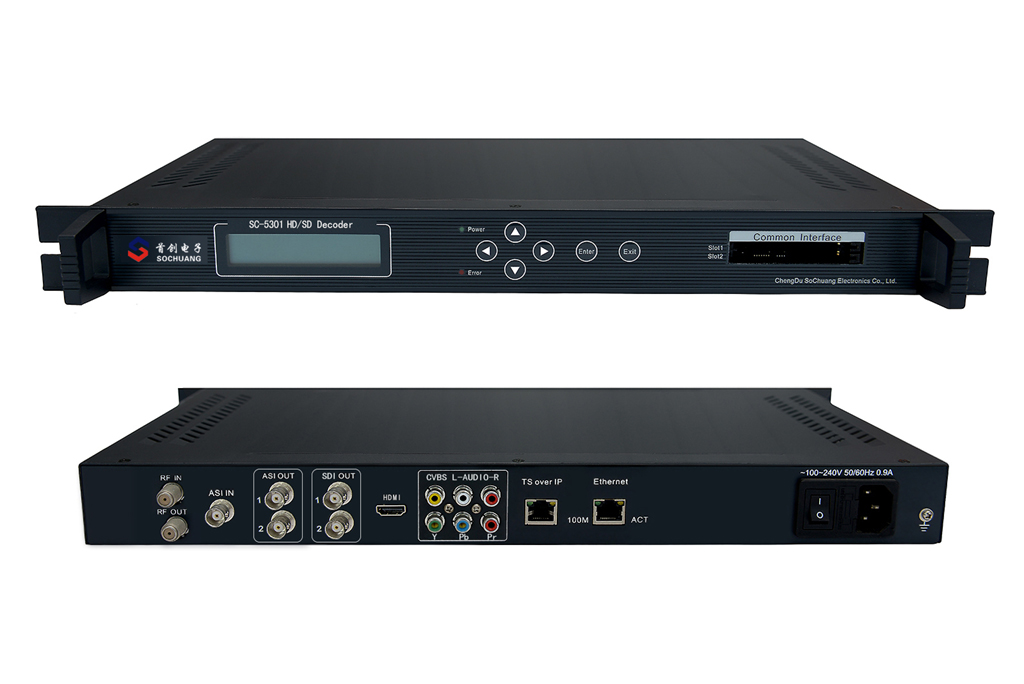

SC-5301 DVB-S SD/HD Decoder with 2CI (DVB-S/ASI in, ASI/AV/HDMI/YPbPr/SDI/IP out)


Specification Word Download


Specification PDF Download


User Manual Download


DVB-S SD/HD Decoder with 2CI


SC-5301 SD/HD satellite decoder with CI slot has 1*DVB-S RF and 1*ASI input interfaces and supports MPEG4 AVC/H.264 and MPEG2 video encoding. The input DVB-S signal will be demodulated to TS stream and output by AV, ASI, SDI, HDMI, YPbPr, or IP interface. It has 2 CI slots, supporting 2 CAM cards. It provides powerful signal receiving, descrambling and decoding, which meets a variety of application requirements. It's one of the main digital head-end equipments for receiving and encrypted satellite programs.


Main Feature

1. Support DVB-S or ASI input
2. Support 2 CI slots
3. Support AV, ASI, SDI, HDMI, YPbPr, IP output
4. Support audio resample (32KHz, 44.1KHz, 48KHz)
5. Real-time monitoring of input and output signal
6. LCD/Keyboard control by front panel and network management by Ethernet

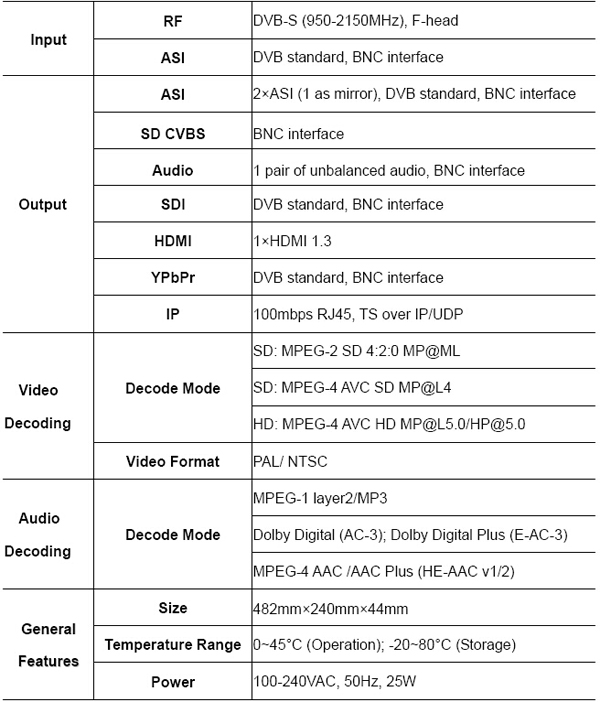

Technical Specification
Network Management
1. Source Setting
2. Program
3. Decoder
4. PID Filter
5. Edit PSI
