SC-5304 4in1 DVB-S/S2 SD/HD Decoder (4*DVB-S/S2 in, 4*AV+4*HDMI out)


Specification Word Download


Specification PDF Download


User Manual Download


4in1 DVB-S/S2 SD/HD Decoder

SC-5304 4-Channel SD/HD satellite decoder has 4*DVB-S/S2 RF input interfaces and supports MPEG4 AVC/H.264 and MPEG2 video encoding and MPEG-1, AAC audio encoding. The input satellite signal will be demodulated to TS stream and output by HDMI or AV interface. It provides powerful signal receiving, descrambling and decoding, which meets a variety of application requirements. It's one of the main digital head-end equipments for receiving and encrypted satellite programs.
1. Support DVB-S/S2 input
2. Support HDMI and AV output
3. Support H.264/MPEG4 AVC and MPEG-2 video and MPEG-1 and AAC audio coding
4. Support PAL/NTSC
5. Real-time monitoring of input and output signal
6. LCD/Keyboard control by front panel and network management by Ethernet

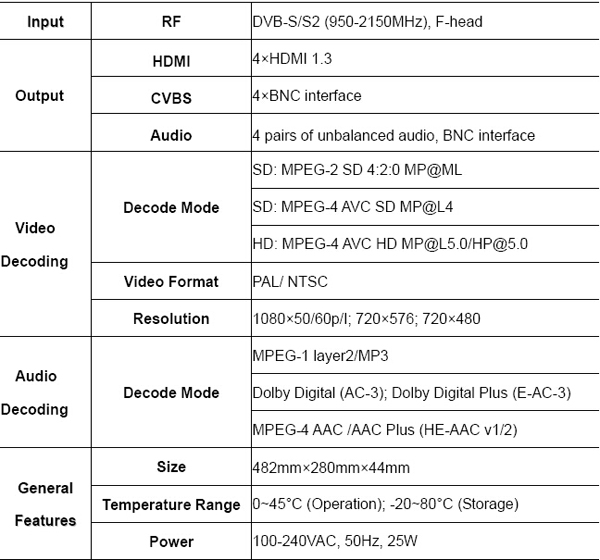

Technical Specification
Networ Management

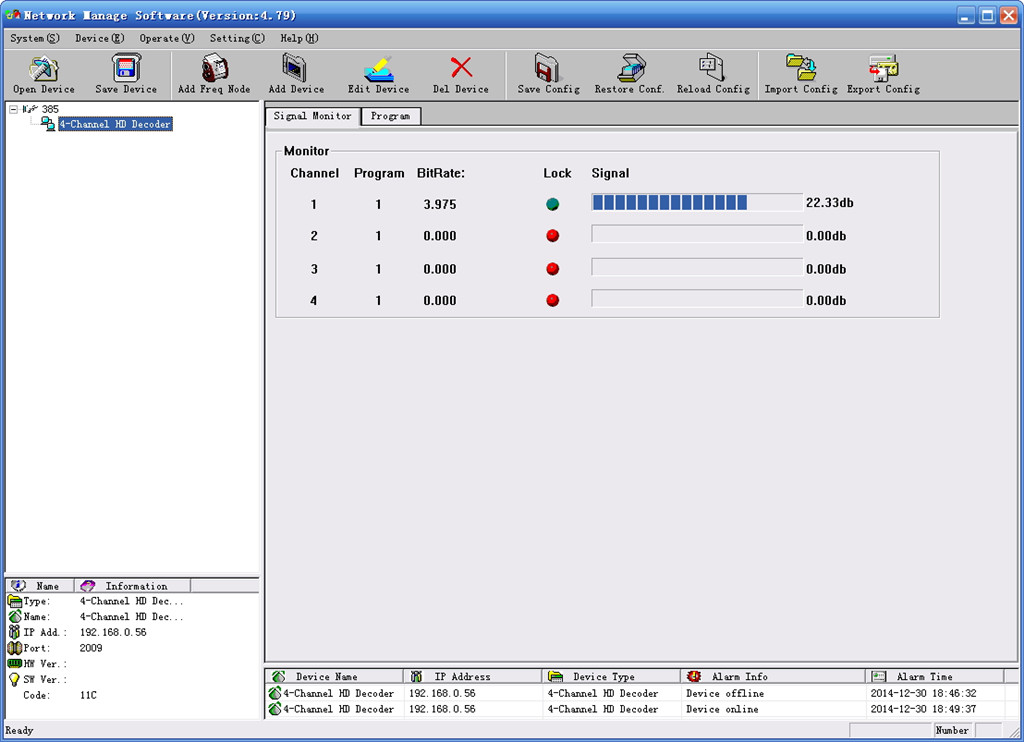

1. Signal Monitor

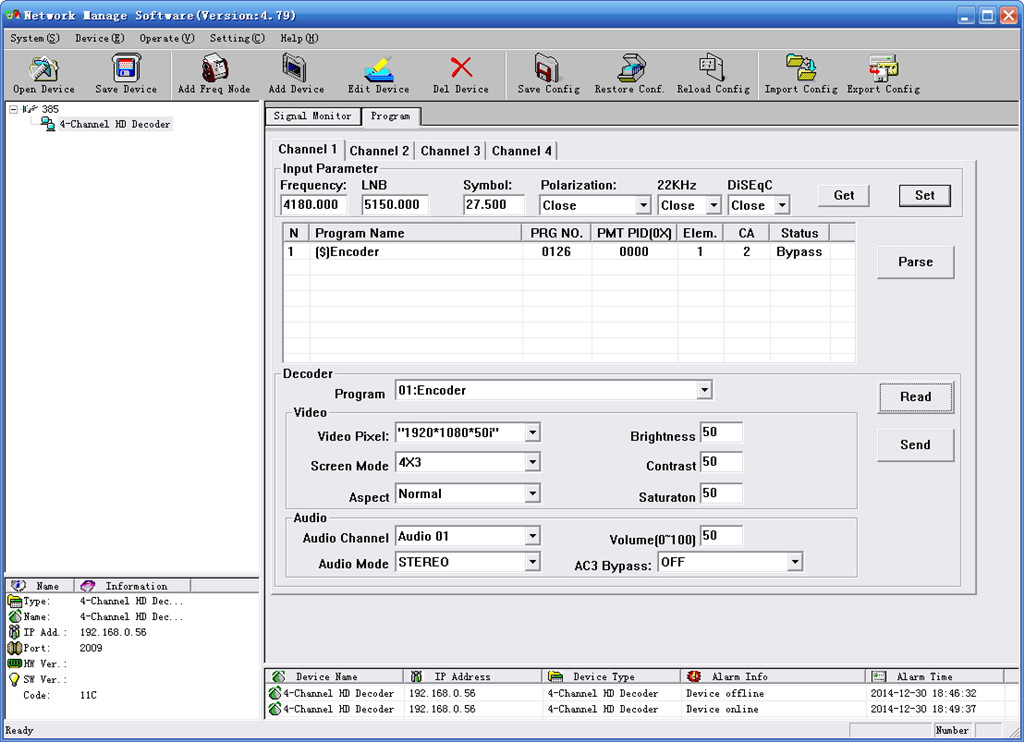

2.  Program
