SC-1815 8IN1 HDMI H.264 Encoder (8HDMI+ASI in, ASI+IP out)

8IN1 HDMI H.264 Encoder

Overview

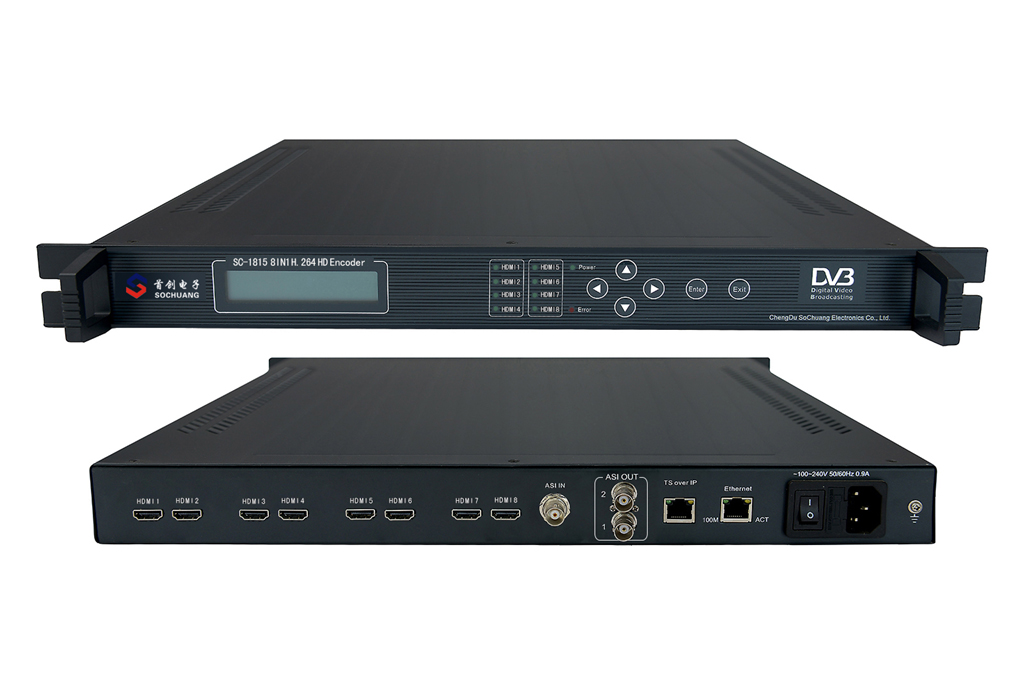

SC-1815 8IN1 MPEG-4 AVC/H.264 HD (High Definition) Encoder (with IP output) supports 8*HDMI and ASI input, and generates DVB transport stream (TS/ASI) and IP (TS over IP) output. It suits 1U rack and supports1080i/p, 720p and HDCP. Besides, SC-1815 can be operated by both LCD/Keyboard and NMS (Network Management Software). Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.

Features

1. H.264/MPEG-4 AVC High Profile Level 4.0 video encoding, advanced video pretreatment algorithm, MPEG-1 audio encoding

2. 8*HDMI+ASI input

3. Support HDCP

4. Support multiple HD formats including 1080i/p and 720p

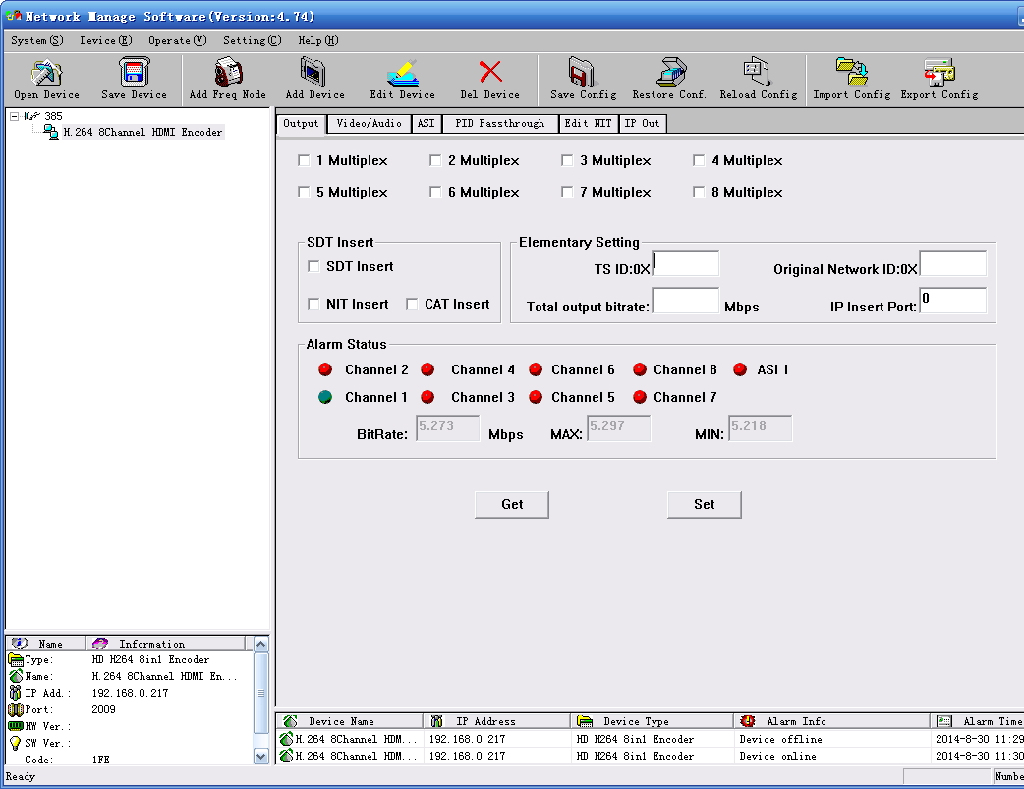

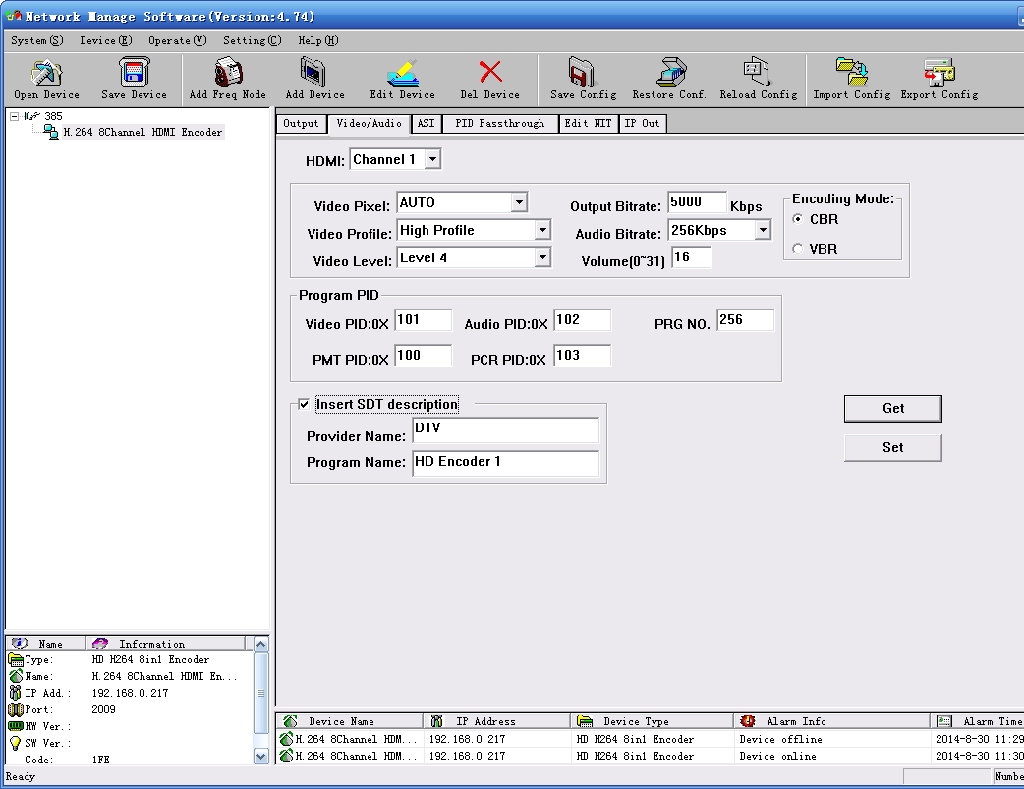

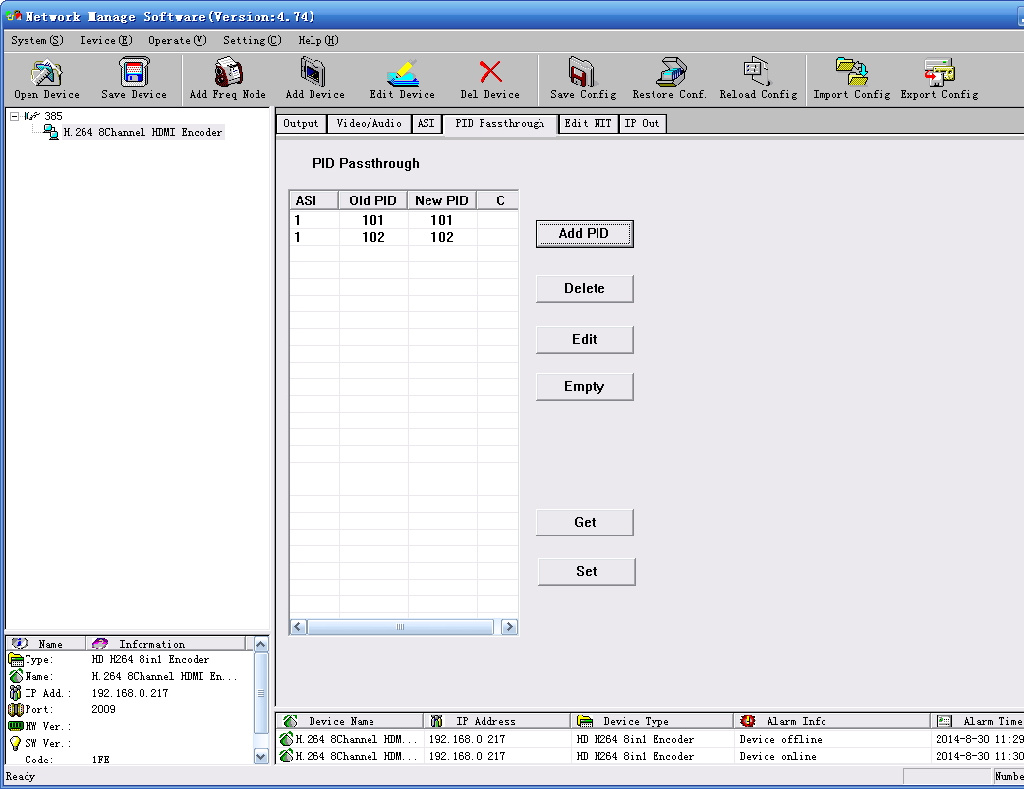

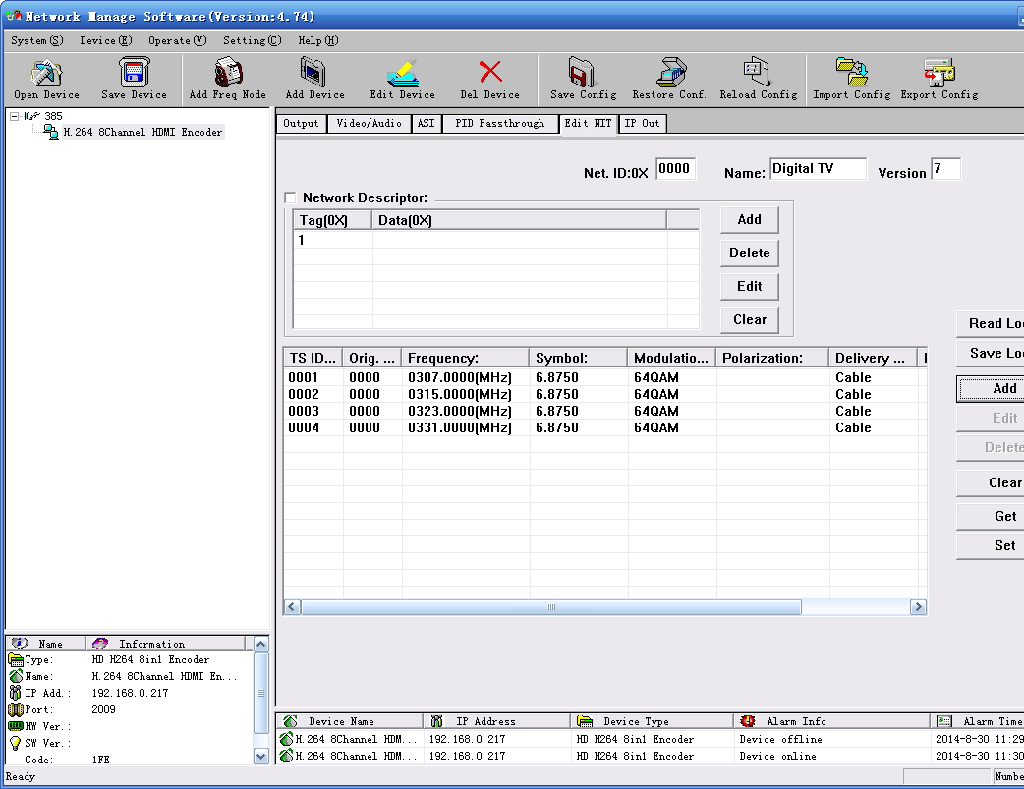

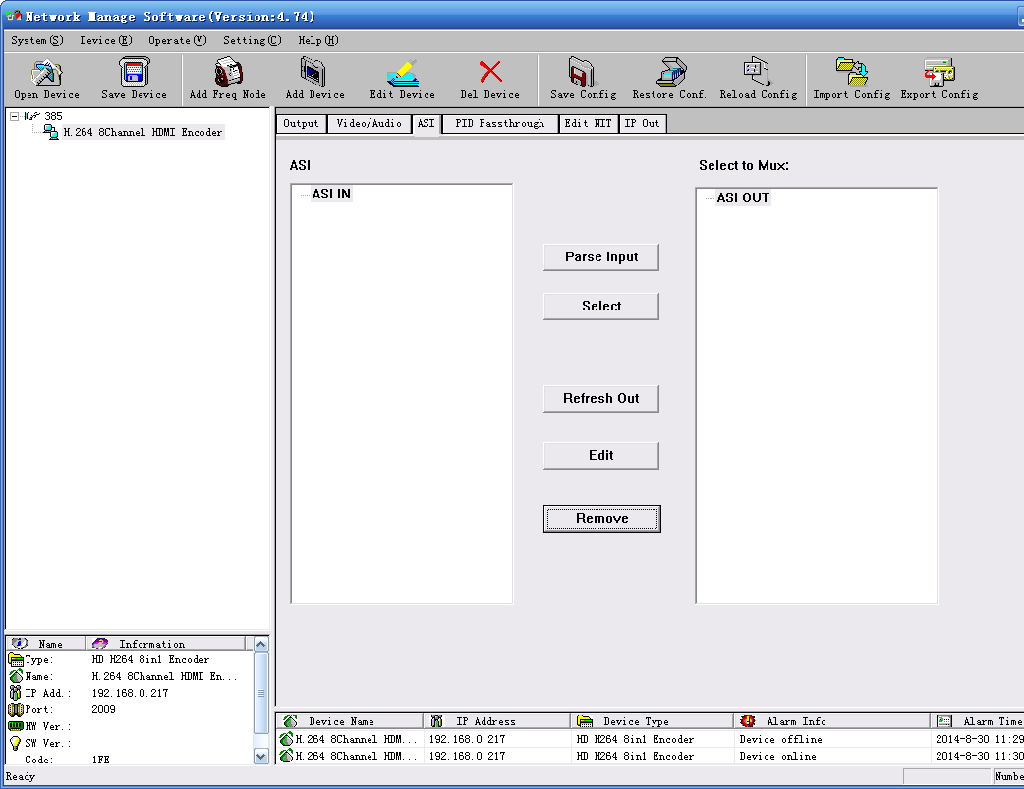

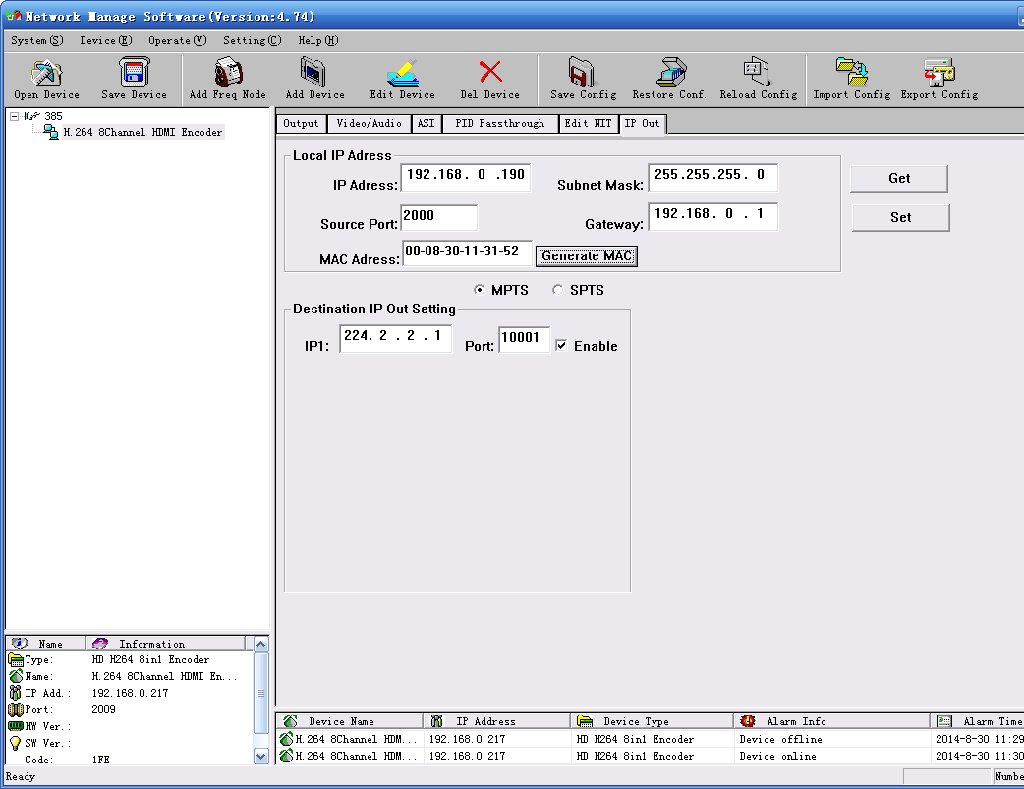

5. LCD/Keyboard control by front panel and network management by Ethernet

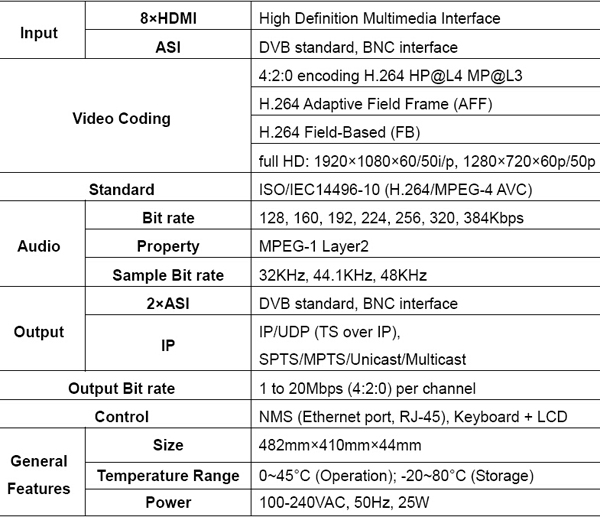

Technical Specification
