SC-4125 6*DVB-S/S2+6*ASI to 4*DVB-C Transmodulator (6RF+6ASI in, 4RF out)


Specification Word Download


Specification PDF Download


User Manual Download


DVB-S/S2 to DVB-C Transmodulator with mux-Scarmbler

SC-4125 6*DVB-S2 to 4*QAM Trans-modulator support 6*DVB-S/S2 (QPSK/8PSK) transponders and 6*ASI input, then multiplex and scramble the input signal to output selected programs through 4*QAM RF channels. It provides a cost-effective and stable solution for TV operators to re-distribute programs via HFC network. It suits 1U rack and can be configured by front panel LCD and NMS (network management software). Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.
1. 6DVB-S/S2 RF and 6*ASI input
2. Input frequency: 950~2150 MHz
3. Input symbol rate: 1~45 Msps
4. 4*QAM RF output
5. Output frequency: 47~870 MHz
6. Output symbol rate: 5~9 Msps
7. Support 4CAS/SMS
8. LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
Network Management

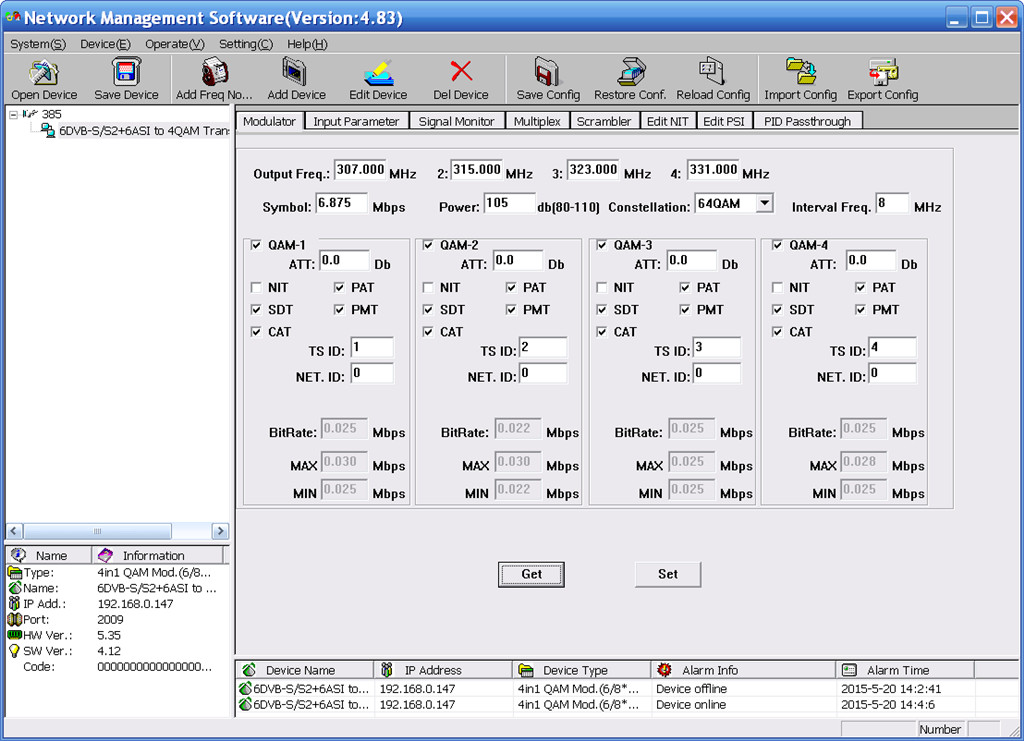

1. Modulator
2. Input Paremeter

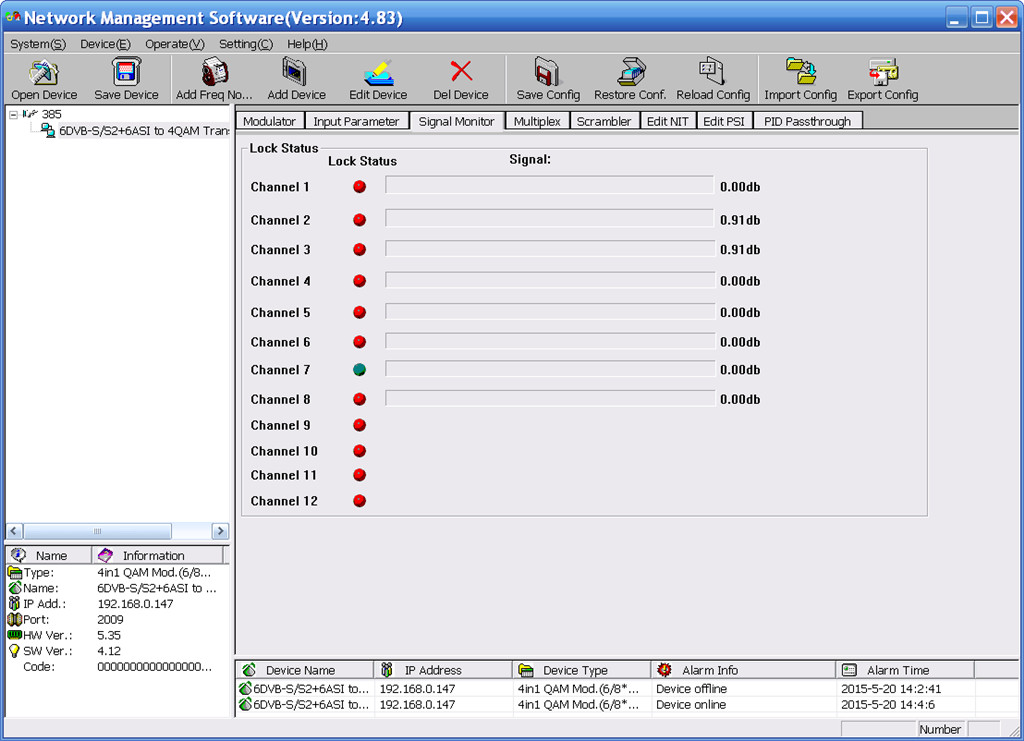

3. Signal Monitor

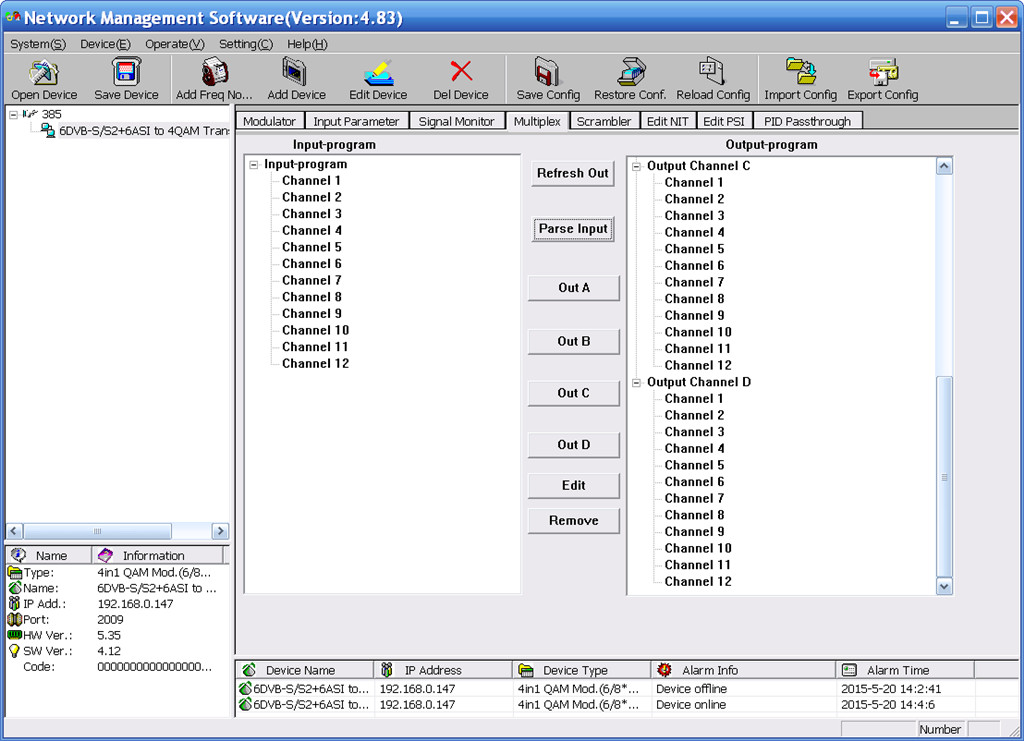

4. Multiplex

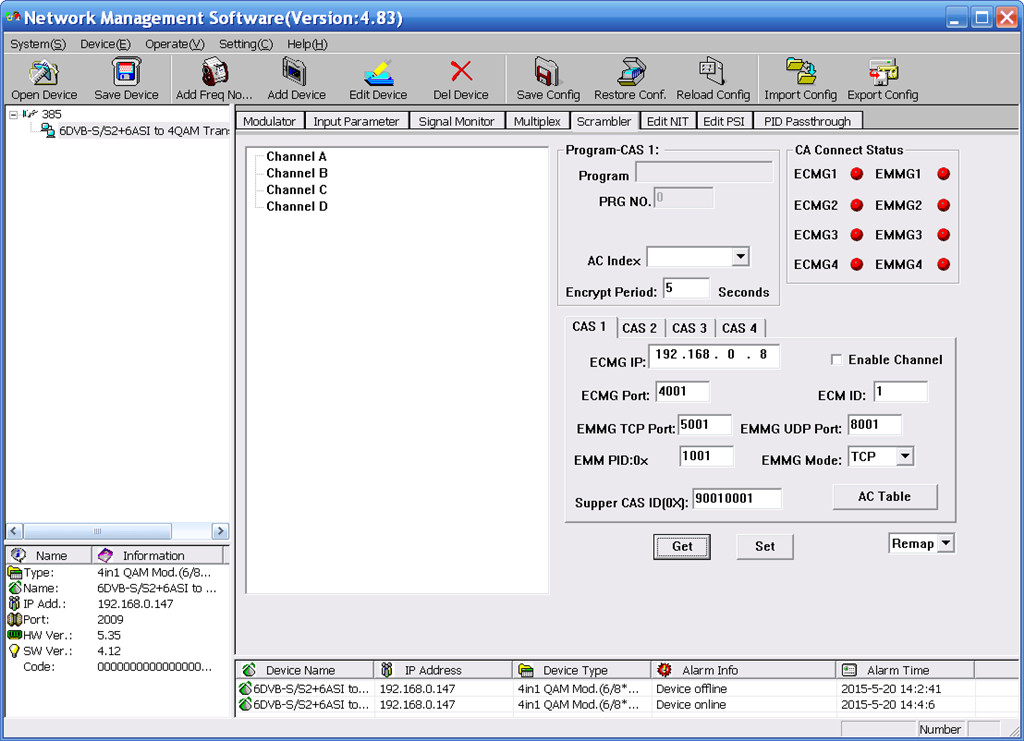

5. Scrambler

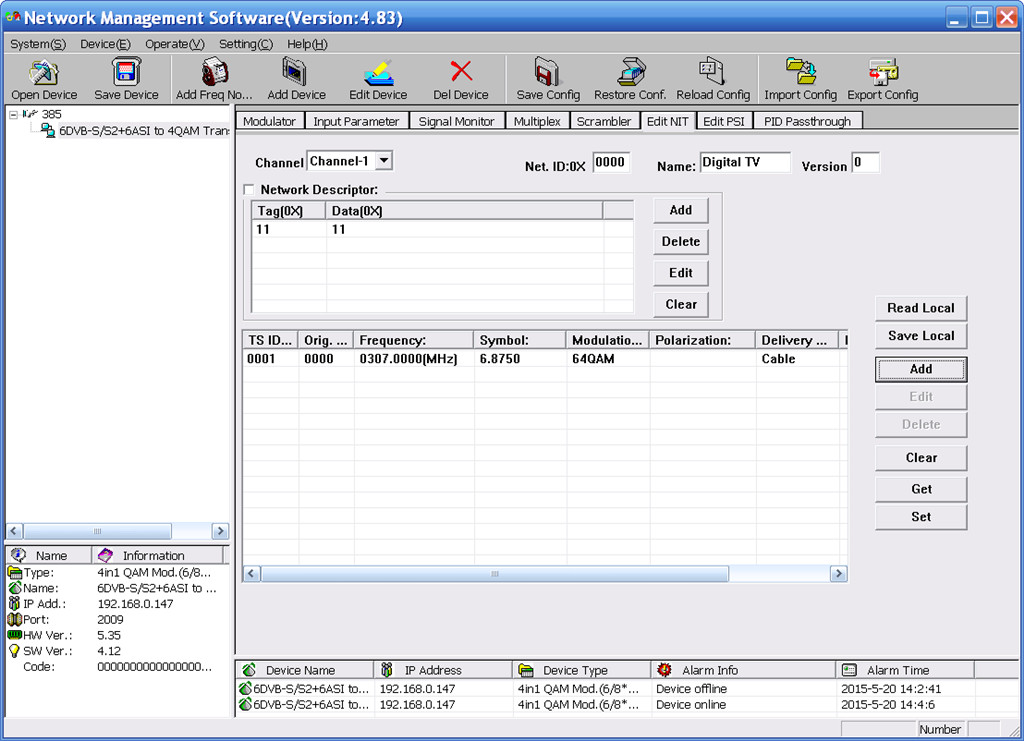

6. Edit NIT

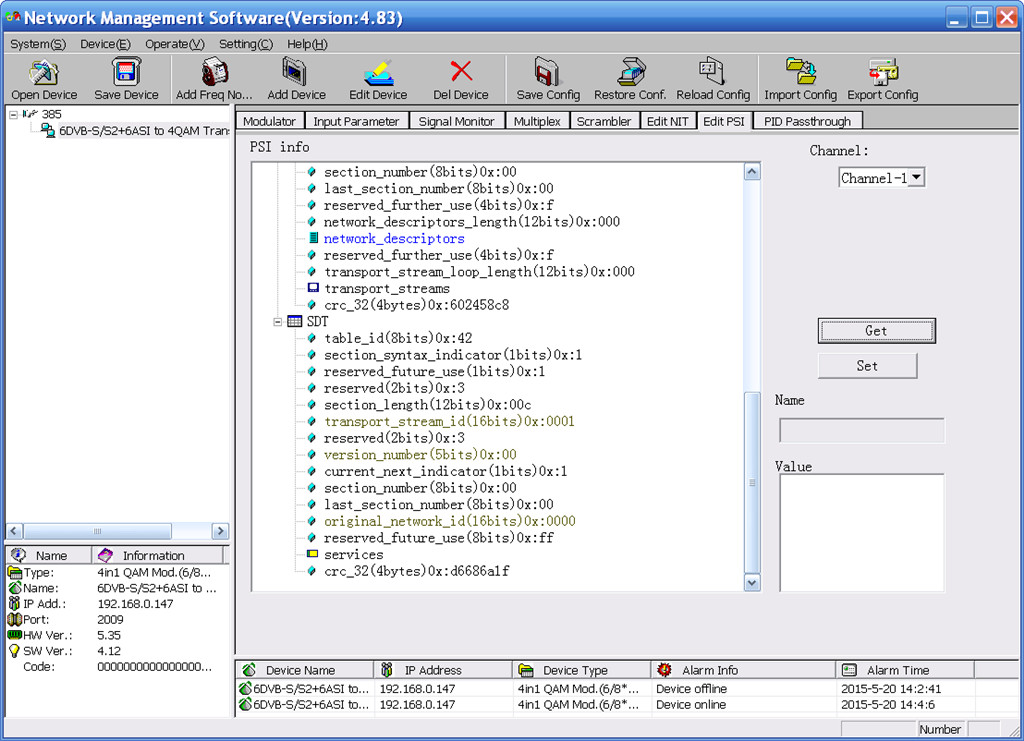

7. Edit PSI

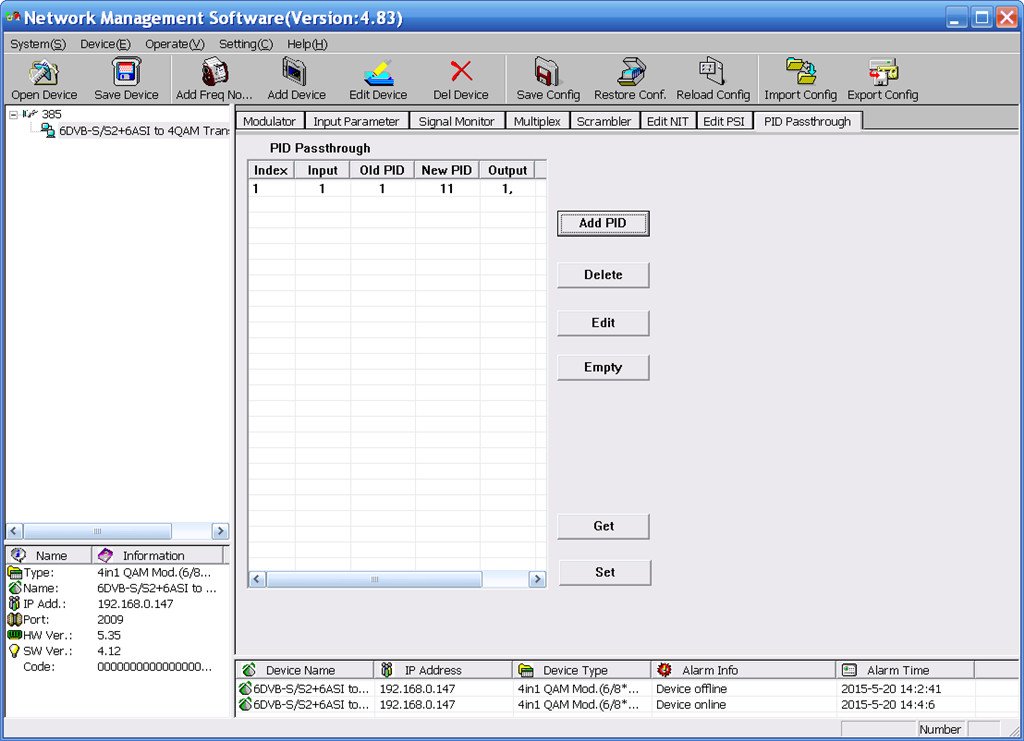

8. PID Passthrough
