4Channel DVB-S/S2 IP IRD with CI
Overview

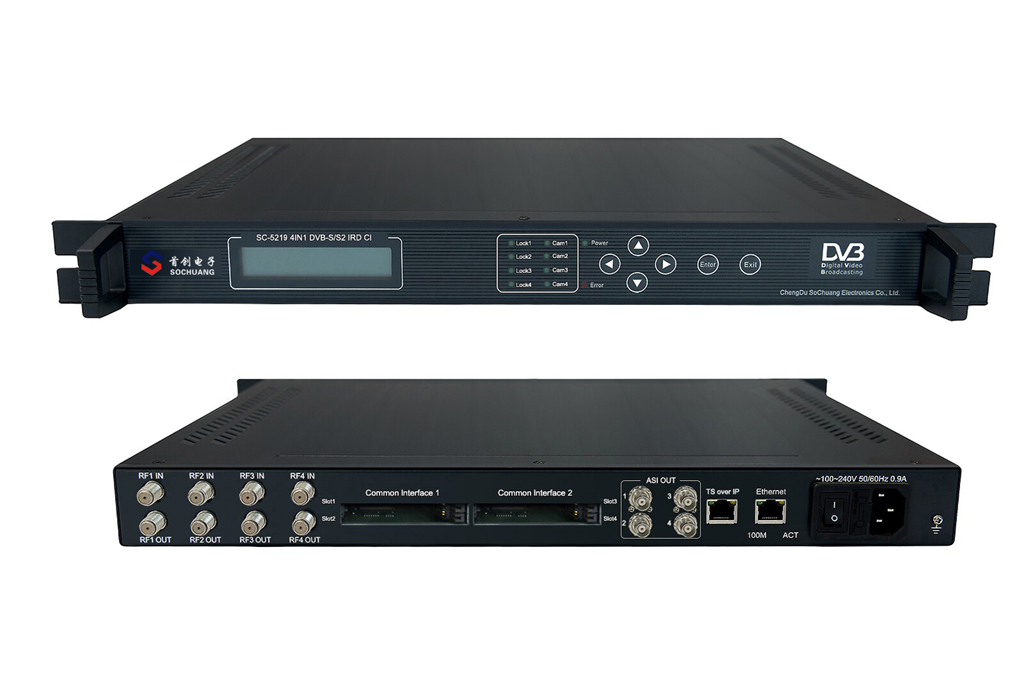

SC-5219 DVB-S/S2 4-channle IRD with CI supports 4*DVB-S/S2 RF input. It has 4*CI interfaces and supports multi-type of CAM cards. It can output 4*ASI and IP (32*SPTS, TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.
Features
1. Support DVB-S/DVB-S2 input
2. Support 4*CI slots
3. Support ASI/IP (32*SPTS, TS over UDP) output
4. Common interface with 4 slots (PCMCIA) supports multi-type of CAM cards
5. 4 slots of PCMCIA module could descramble multi-program stream
6. Frequency Range: 950~2150Mhz

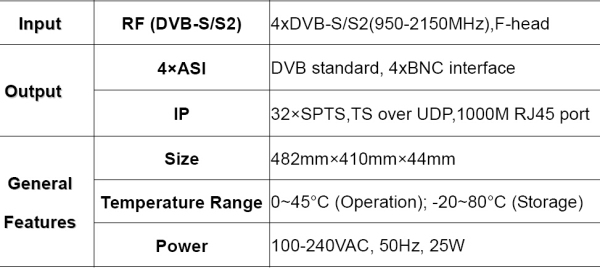

Technical Specification
Network Management

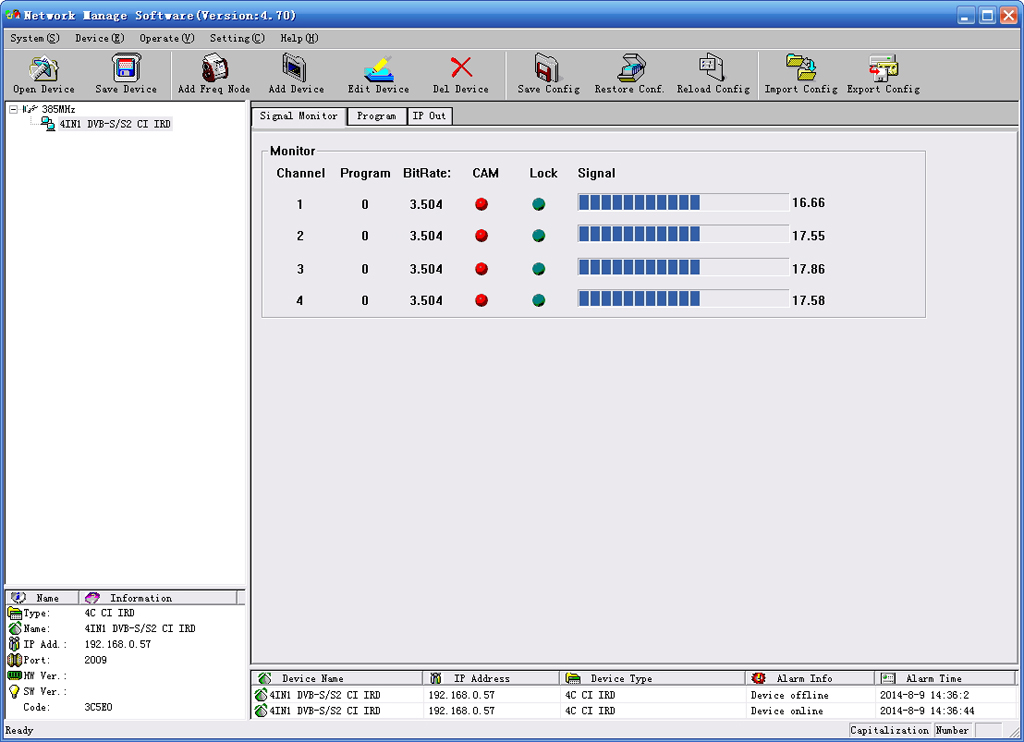

1. Signal Monitor

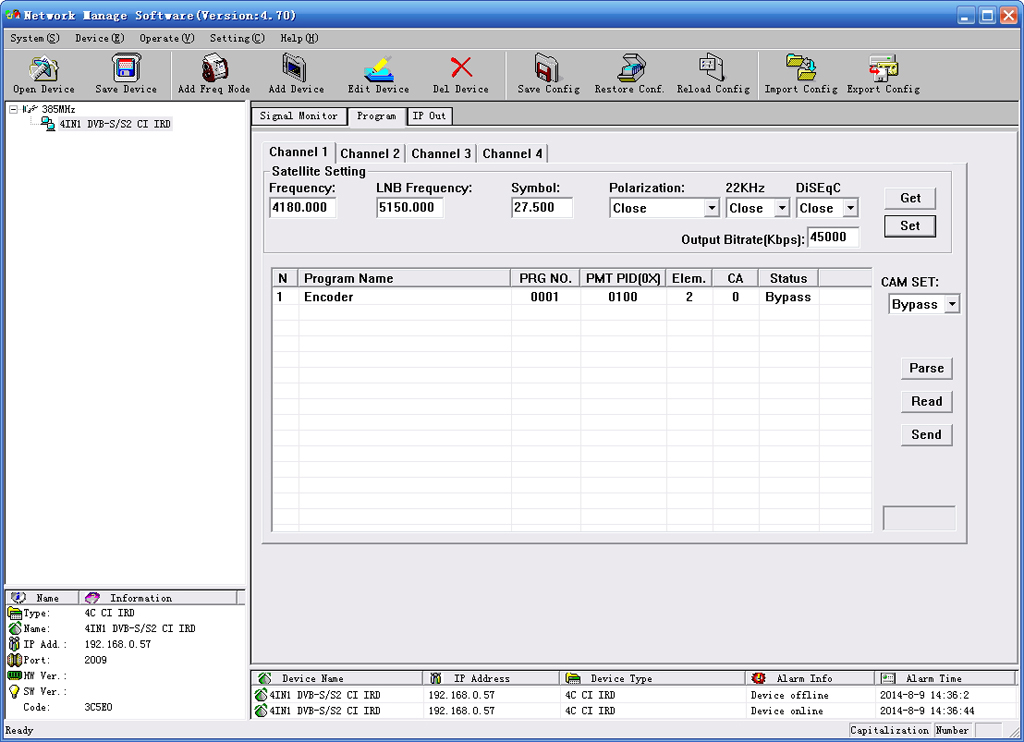

2. Program Setting

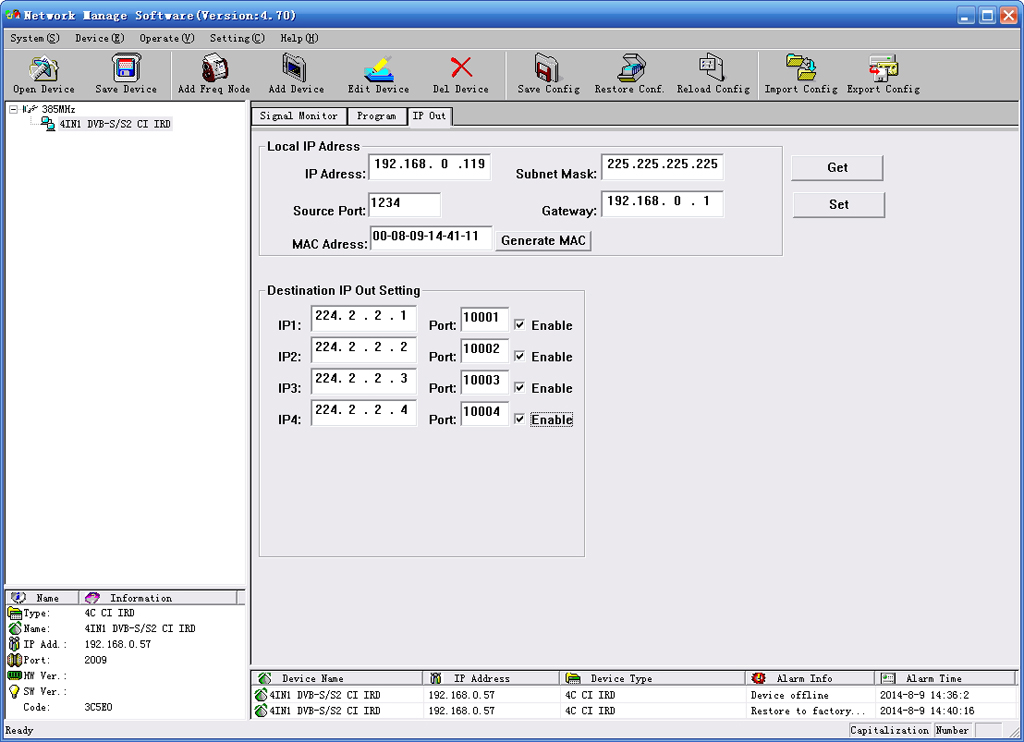

3. IP Out
