SC-4207 8IN1 DVB-C SD Encoder Modulator with Scrambler (8AV in, DVB-C out)


Specification Word Download


Specification PDF Download


USer Manual Download


8IN1 DVB-C SD Encoder Modulator with Scrambler

SD Encoder Modulator supports 8*CVBS and 8 pairs of unbalanced audio and IP input and 1*RF output. After coded, scrambled and modulated, the input signal can be directly output or mixed output with original TV signal. It can be widely used in home entertainment, security and protection monitoring, hotel LCD panels, shopping mall advertising and other similar places.
1. Integrated encoder, scrambler and modulator
2. 8CVBS+Audio and IP input
3. DVB-C RF out
4. RF Range: 47-870Mhz
5. Keyboard+LCD control and network management

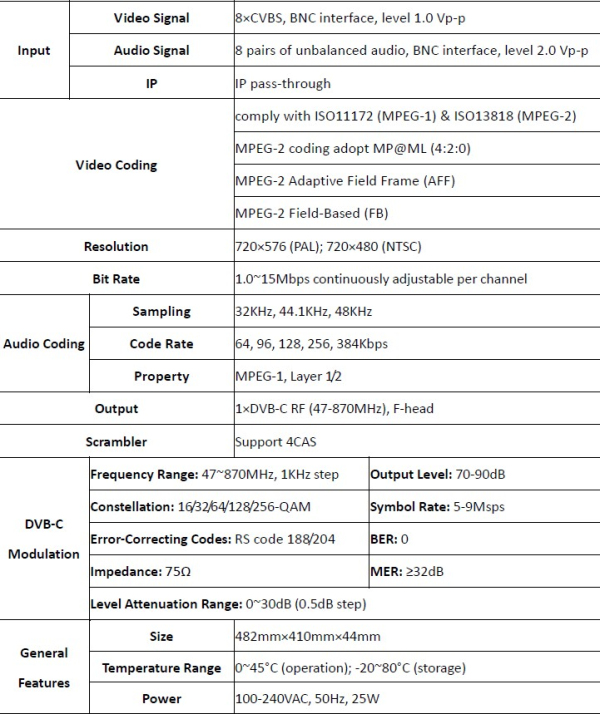

Technical Specification
Netwok Management

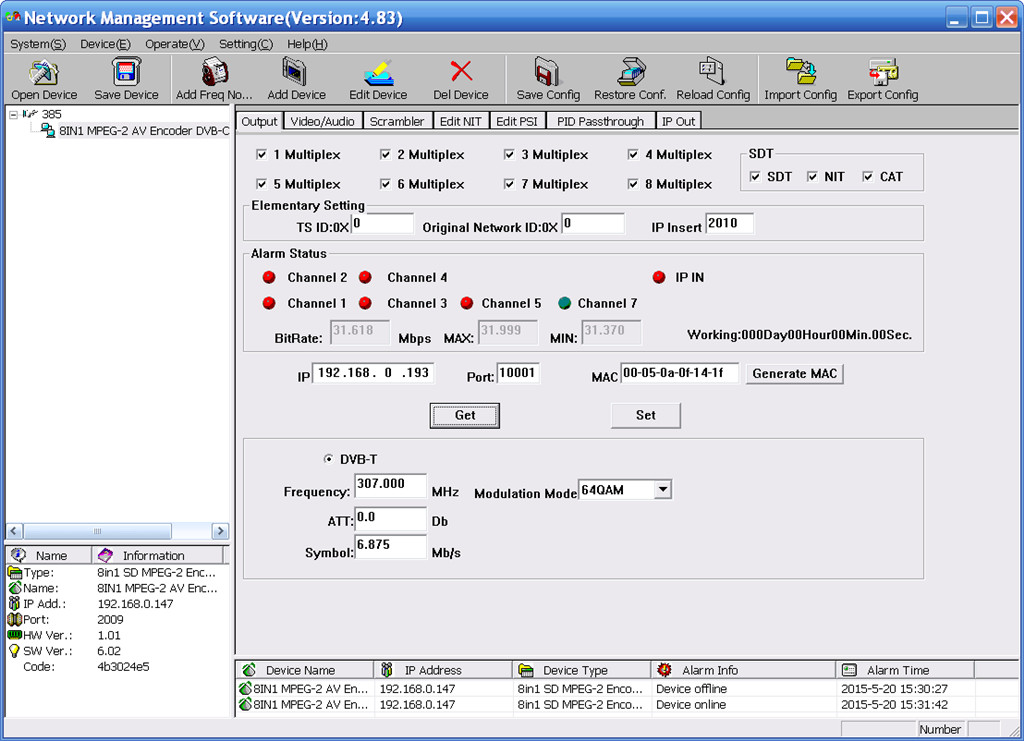

1. Output

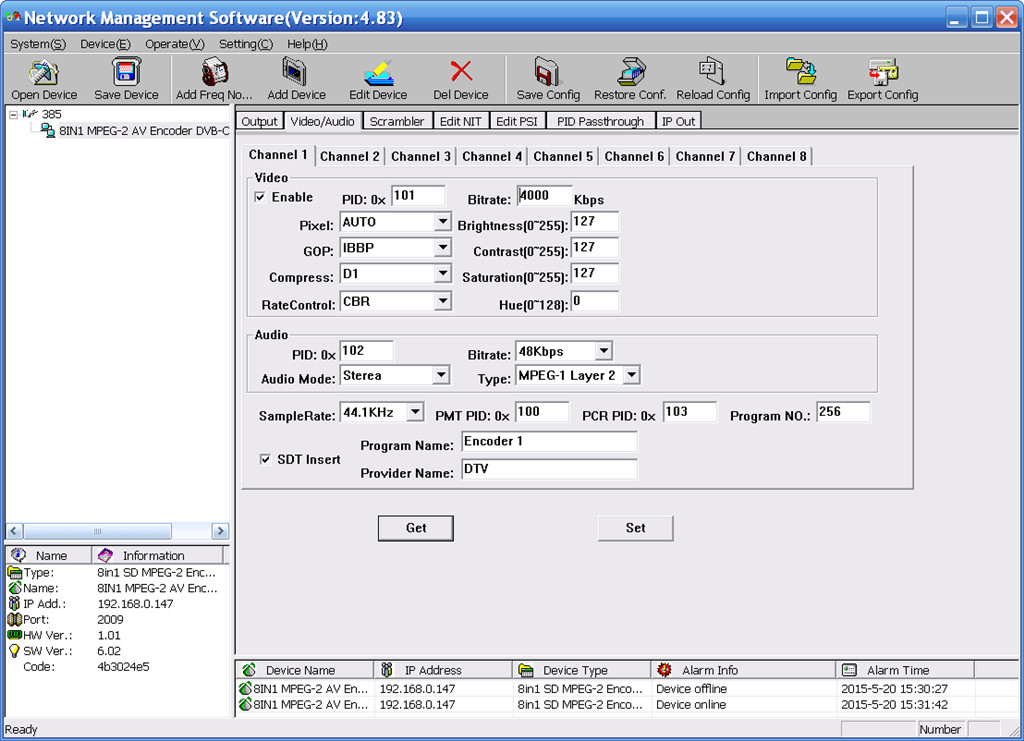

2. Video/Audio

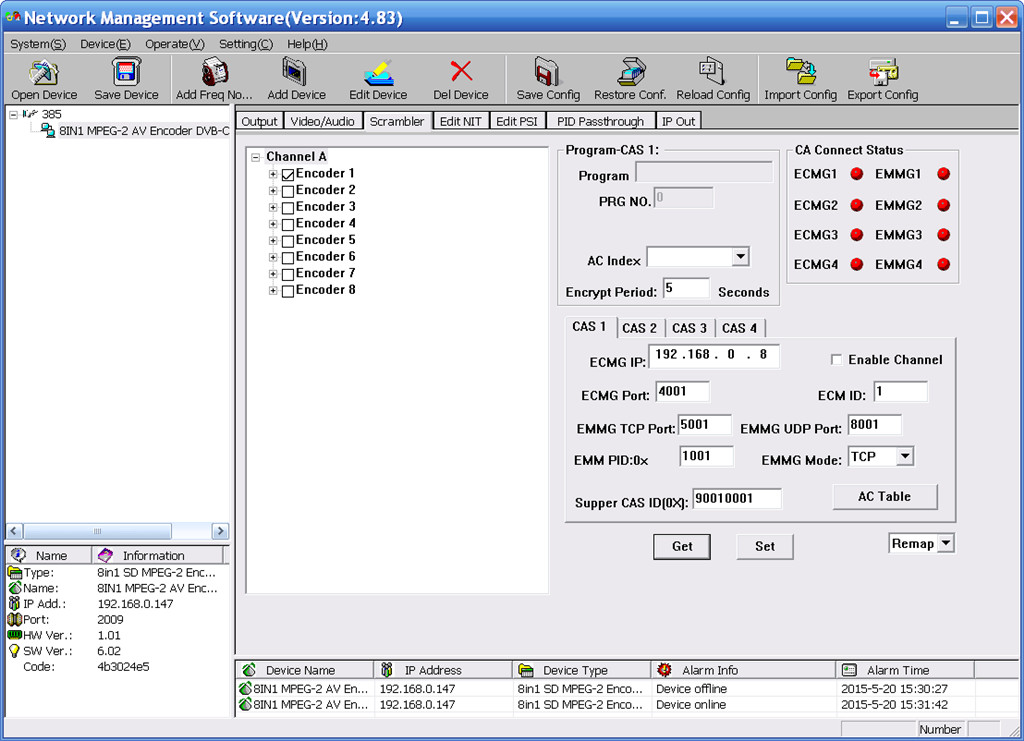

3. Scrambler

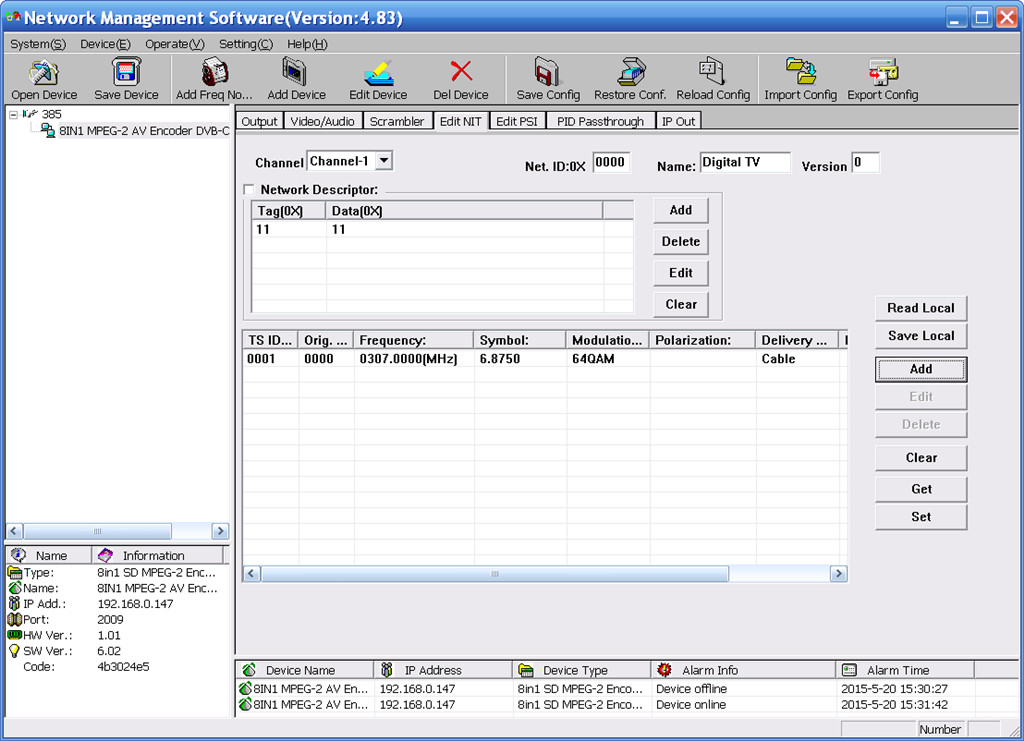

4. Edit NIT

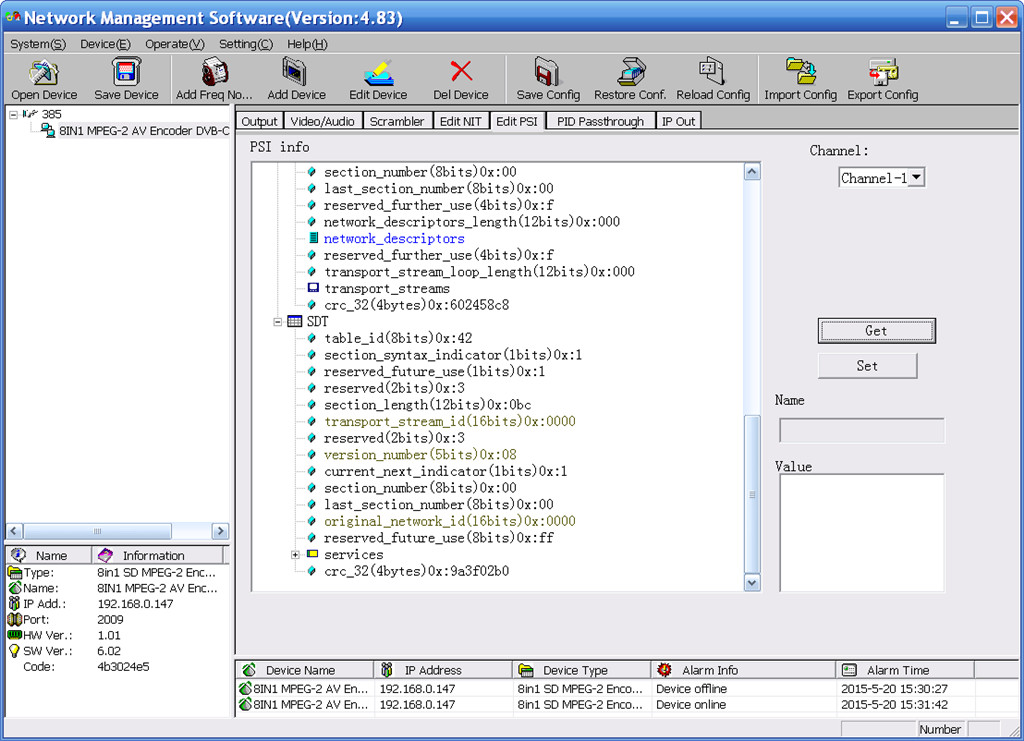

5. Edit PSI

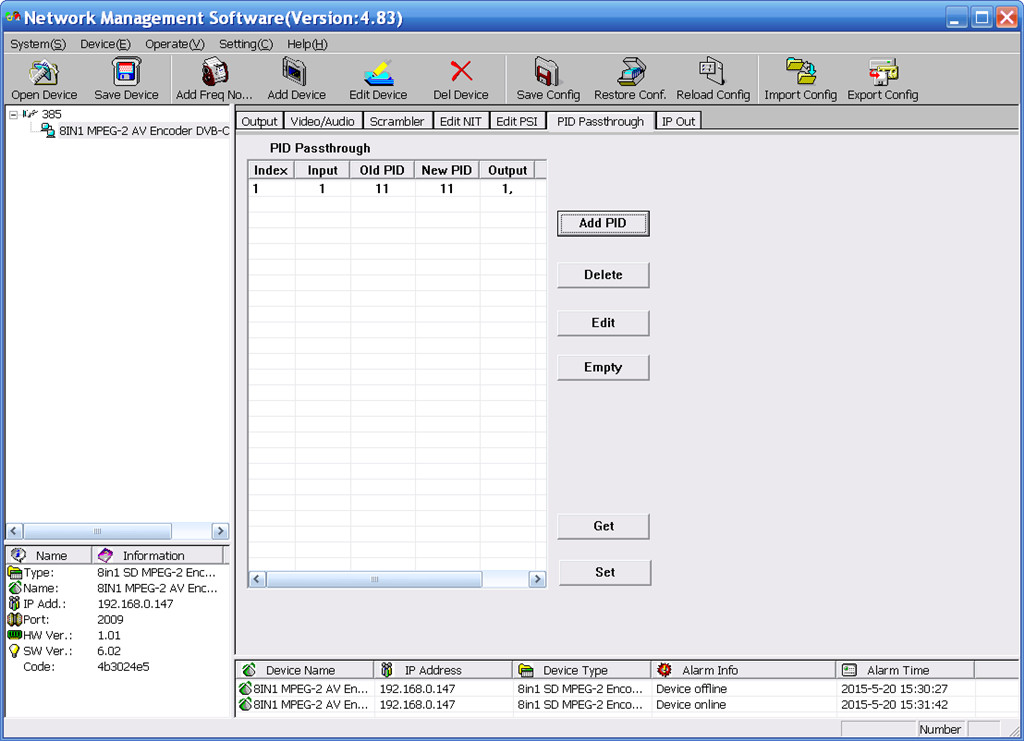

6. PID Passthrough
