Hotel IPTV Solution
Hits: 13147    Update: 2016-06-24

             Chengdu SoChuang Electronics Co.,Ltd

                            Hotel IPTV Solution





Introduction

SoChuang Hotel IPTV system is a compact, high-integrated and flexible solution for hotel TV, it is based on the Android TV or Android STB, provides multiple features, such as live TV, VOD, TV record and playback, and it also provides customized services like hotel logo shown on TV, hotel introduction, welcome message, multiple language service, video door bell, service call, tourist map, consumption details, etc., all these features can be easy customized by hotel requirements.



Features



Low bandwidth:  All service are running on LAN network, compare with internet TV and web TV, no any internet bandwidth occupied.

Easy operation: One universal TV remote controller instead of using multiple remote controller in traditional hotel TV system, succinct and fashionable, no any third-party advertisement.

Customized aspect: Hotel logo, hotel pictures, hotel video introduction, etc., giving deep impression to customers, contribute to raise hotel brand recognition and advertise the hotel culture.

Simple management:  All service can be managed in head-end computer room, no need configure each TV in room one by one, efficient and saving time and cost.

High-integrated and Stable: All digital signal integrated in a computer room, easy to maintain.

Full HD support: Full HD TV provide a excellent picture quality to customer, support from D1 to 1080P full HD TV.

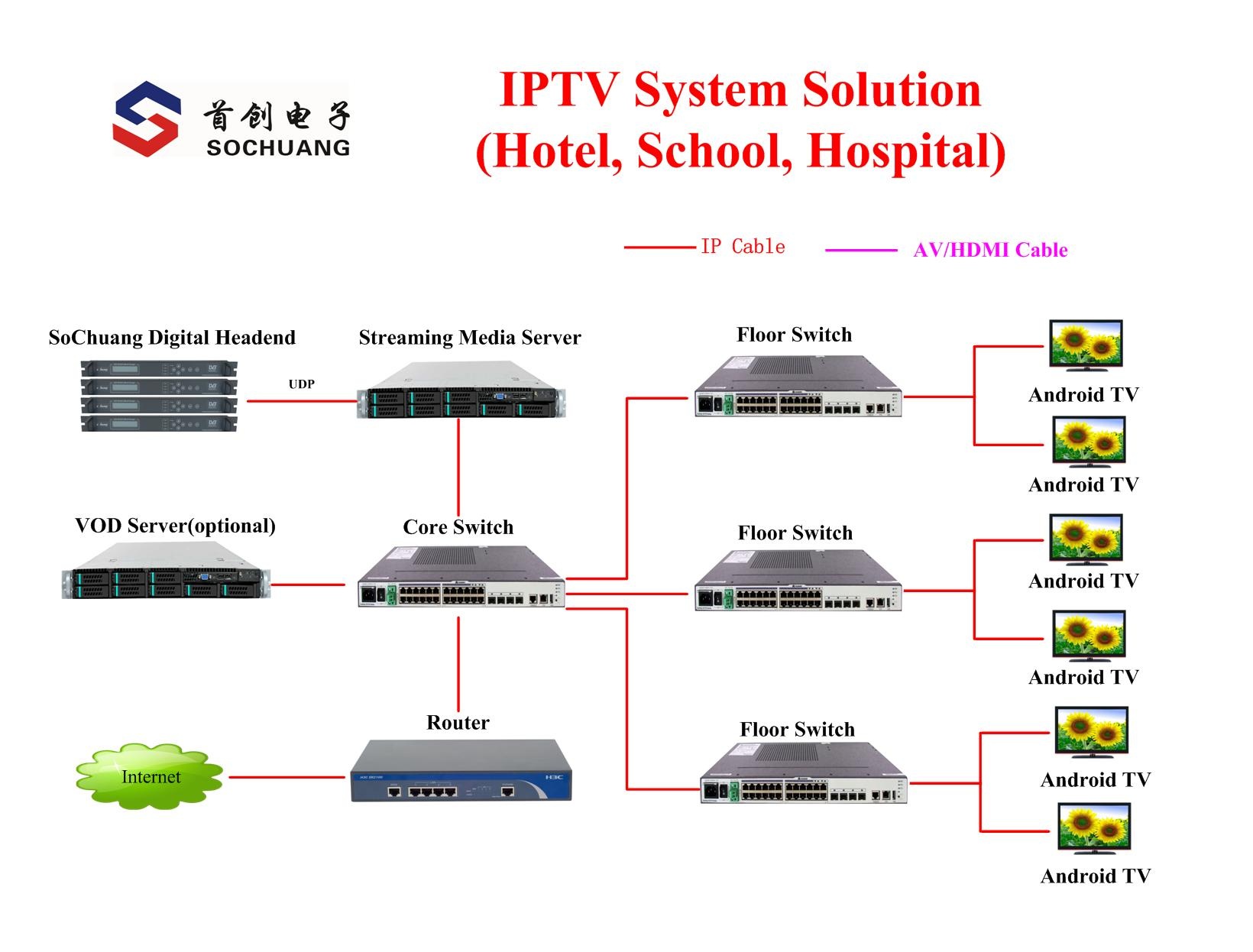

System architecture





SoChuang Hotel IPTV system build on the RJ-45 cable LAN or coaxial cable RF(DTMB/DVB-T), hotel can provide both live TV, VoD, internet service via one cable.The system include live TV head-end system, VoD server/Stream server, live TV management system, VOD management system, core switch, floor switch, android TV or android STB in each room; the floor switch should support IP multicast protocol to control the live TV for each TV;


Function Introduction


Logo

Display the hotel logo and image when power on TV /STB;

Advertising Video

­Display the hotel advertising video. Introduce the hotel service. (support press any key to continue.)

Welcome message and Language select

Display the welcome information according to different guest gender and name.

OSD Message

Sending message to the specified room or all rooms through the management platform.

Hotel introduction

To improve the hotel brand, attract clients, promote the hotel service, we provide various media like picture, video and music to introduce the hotel service.

Live TV

We provide two optional Live TV:

1.    DTMB/DVB-T RF live TV;

2.    LAN UDP multicast / http(hls) unicast live TV;

All these are come from head-end device(such as DVB-C, DVB-S/S2, DVB-T/T2, HD/SD Encoder,etc.).

Live TV support playback (optional);

VOD

Now to meet more entertainment requirement of clients, VoD is required by many hotel, clients can watch favorite movie or interesting TV by VoD system; hotel can easy build their own VOD movie storage and classify them by the web menu provided by our VoD server.

Misc Function

Hotel IPTV system support various function extension such as billing details checking, video door bell, service calling, etc.

Main Products

Head-end Products
SC-1312  MPEG-2/H.264 8IN1 IP Encoder  (8*AV+ASI in, ASI/IP/MPTS/SPTS out, RCA port)
SC-1314  MPEG-2/H.264 16IN1 IP Encoder  (16*AV in, ASI/IP/MPTS/SPTS out, RCA port)
SC-1855  SD/HD H.264 8*HDMI Encoder  (8*HDMI+ASI in, ASI+IP (UDP)/MPTS/SPTS out, max support 1080i)
SC-1866  SD/HD H.264 8*HDMI Encoder  (8*HDMI+ASI in, ASI+IP (UDP)/MPTS/SPTS out, max support 1080p)

SC-1845  SD/HD H.264 12*HDMI Encoder  (12*HDMI in, ASI+IP (UDP)/MPTS/SPTS out, max support 1080i)
SC-1846  SD/HD H.264 12*HDMI Encoder  (12*HDMI in, ASI+IP (UDP)/MPTS/SPTS out, max support 1080p)
SC-2105  16*DVB-S/S2-128*SPTS IP Gateway  (16*DVB-S/S2 in,128*SPTS/UDP/multicast/Gigabit out)
SC-5219  4in1 DVB-S/S2 CI IRD  (4 DVB-S/S2 RF in,4 ASI+IP/32SPTS out)

Supporting Products

Live TV and VOD app for hotel  with  backstage web management
HTTP(HLS) streaming server and VOD server
Android box for hotel/hospital/school with live TV and VOD
