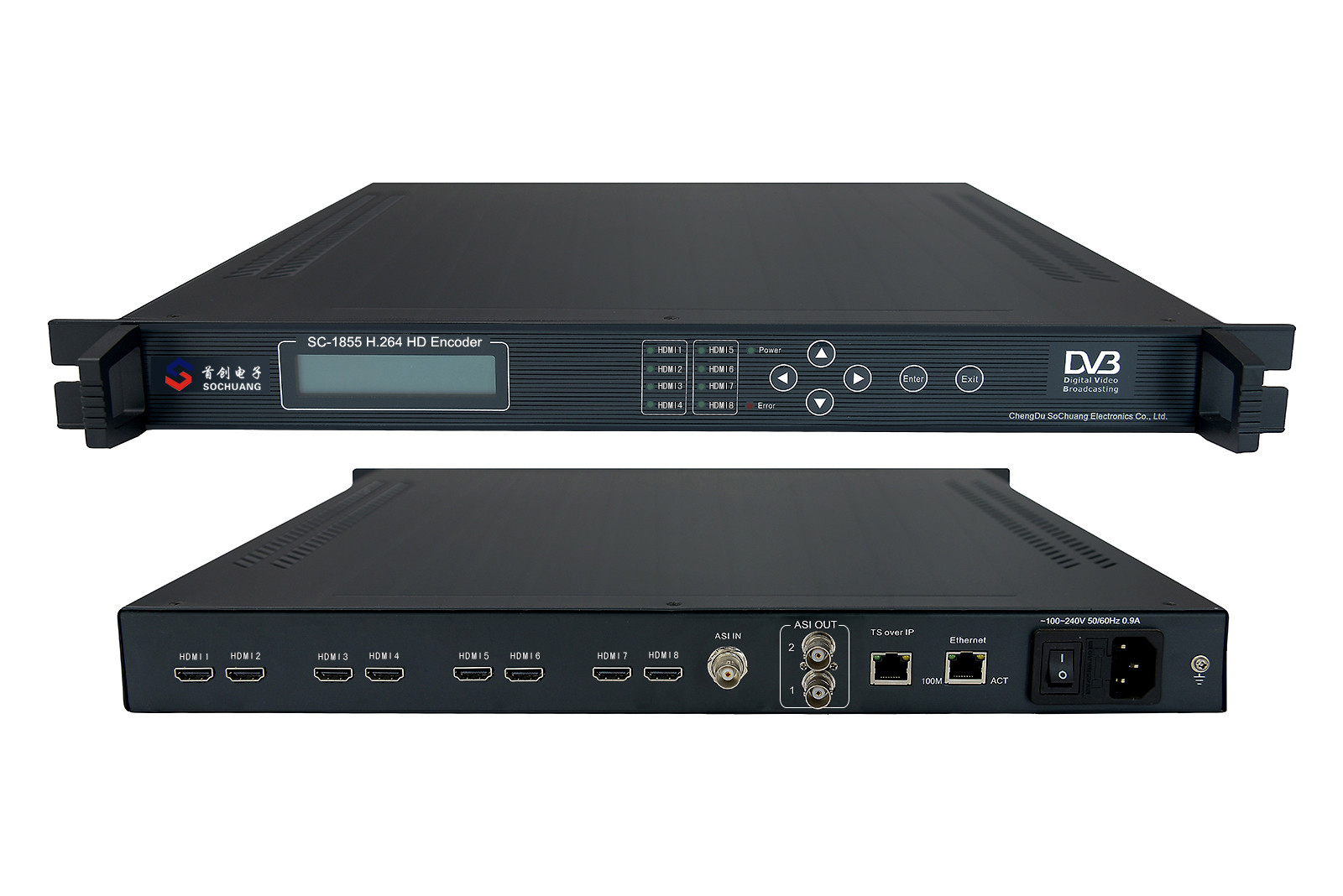

SC-1855 8 Channels H.264 HDMI Video HD Encoder For Hotel IPTV System(8HDMI+ASI in, ASI+IP out)
SC-1855 8 Channels H.264 HDMI Video Encoder For Hotel IPTV
Overview
SC-1855 8IN1 MPEG-4 AVC/H.264 HD (High Definition) Encoder (with IP output) supports 8*HDMI and ASI input, and generates DVB transport stream (TS/ASI) and IP (TS over IP) output. It suits 1U rack and supports1080i, 720p and HDCP. Besides, SC-1855 can be operated by both LCD/Keyboard and NMS (Network Management Software). Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.
Features
1. H.264/MPEG-4 AVC High Profile Level 4.0 video encoding, advanced video pretreatment algorithm, MPEG-1 audio encoding
2. 8*HDMI+ASI input
3. Support HDCP
4. Support multiple HD formats including 1080i and 720p
5. LCD/Keyboard control by front panel and network management by Ethernet
|
Input |
8*HDMI |
High Definition Multimedia Interface |
|
ASI |
DVB standard, BNC interface |
|
Video Coding |
4:2:0 encoding H.264 HP@L4 MP@L3 |
|
H.264 Adaptive Field Frame (AFF) |
|
H.264 Field-Based (FB) |
|
|
|
Standard |
ISO/IEC14496-10 (H.264/MPEG-4 AVC) |
|
Audio |
Bit rate |
64, 128, 192, 256, 384Kbps |
|
Property |
MPEG-1 Layer2 |
|
Sample Bit rate |
32KHz, 44.1KHz, 48KHz |
|
Output |
2*ASI |
DVB standard, BNC interface |
|
IP |
IP/UDP (TS over IP), SPTS/MPTS/Unicast/Multicast |
|
Output Bit rate |
1 to 20Mbps (4:2:0) per channel |
|
Control |
NMS (Ethernet port, RJ-45), Keyboard + LCD |
|
General Features |
Size |
482mm*410mm*44mm |
|
Temperature Range |
0~45'C (Operation); -20~80'C (Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
