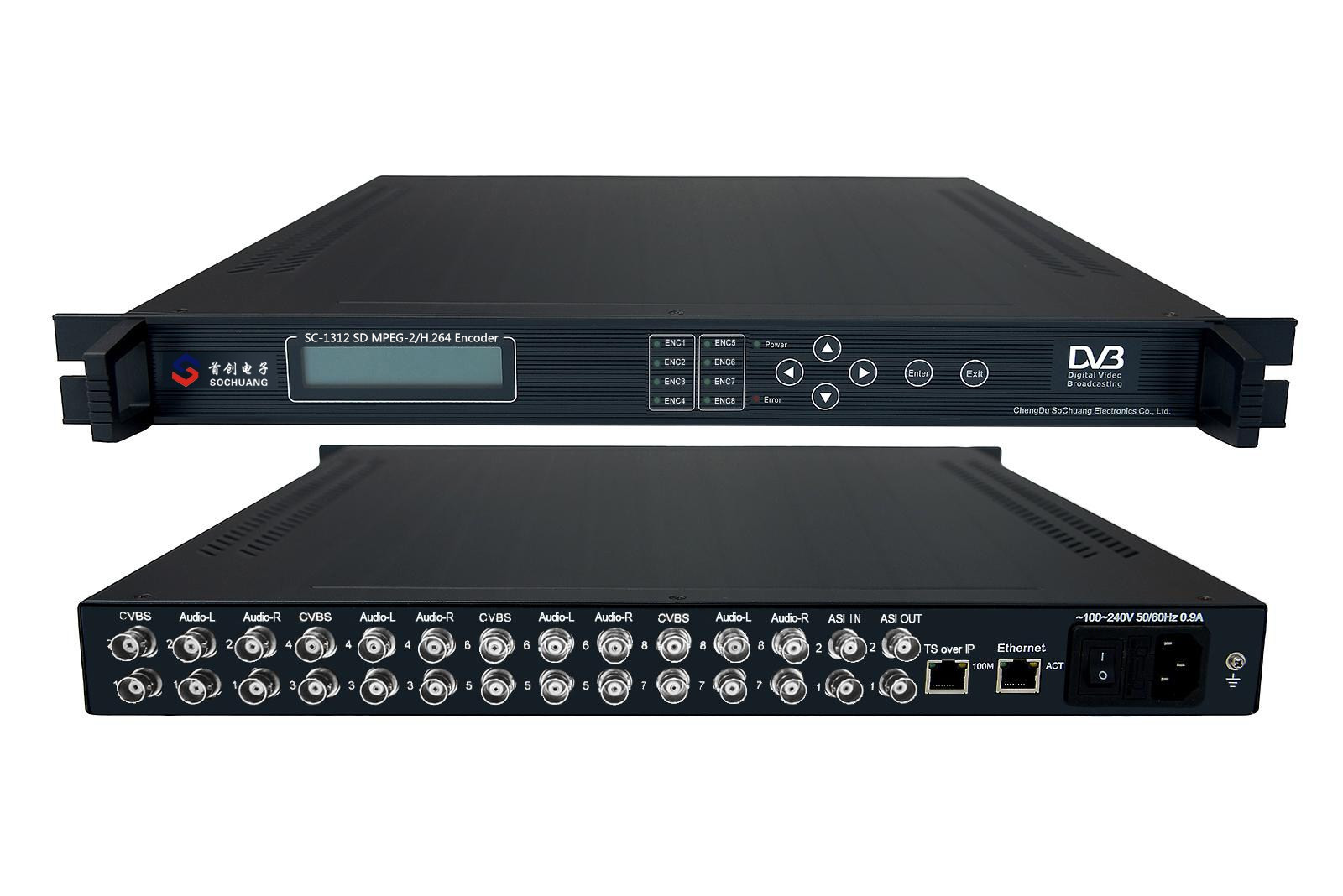

SC-1312 8IN1 MPEG-2/H.264 SD Encoder
SC-1312 MPEG-2/H.264 8IN1 SD Encoder (8*AV+ASI IN, ASI/IP OUT)
Overview
SC-1312 8IN1 MPEG-2/H.264 SD Encoder supports SD MPEG-2/H.264 video and MPEG-1 audio encoding. It has 8*CVBS video, 8 pairs of unbalanced audio and 1*ASI (BNC (MUX)) input interfaces, and can multiplex the input signal (TS) to generate DVB transport stream (TS/ASI) and IP (TS over UDP) output. The encoder suits 1U rack and can be configured by front panel LCD and NMS (network management software). Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.
Main Feature
MPEG-2/H.264 video and MPEG-1 audio encoding
8*CVBS video and 8 pairs of unbalanced audio (high-fidelity mono/stereo) input
1xASI (MUX) input
Support PAL and NTSC video formats
Support ASI/IP (TS over UDP, multicast/unicast) output
LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
|
Input |
Video Signal |
8*CVBS, BNC interface, level 1.0 Vp-p |
|
Audio Signal |
8 pairs of unbalanced audio, BNC interface, level 2.0 Vp-p |
|
ASI |
TS, DVB standard (mux), BNC interface |
|
Video Coding |
MPEG-2/H.264 |
|
Resolution |
Standard |
support 1/2D1, 2/3D1, 3/4D1,9/16D1 |
|
Format |
PAL/NTSC |
|
Audio Coding |
Sampling |
32KHz, 44.1KHz, 48KHz |
|
Code Rate |
32, 48, 56, 64, 128, 192, 256, 384, 448Kbps |
|
Property |
MPEG-1 Layer2, 1 stereo or dual-channel |
|
Output |
2ASI |
1 as mirror, DVB standard, BNC interface |
|
IP |
100mbps RJ45, TS over IP/UDP/MPTS/SPTS |
|
Output BitRate |
1.0~15Mbps continuously adjustable per channel |
|
Control |
NMS (Ethernet port, RJ-45), Keyboard + LCD |
|
General Features |
Size |
482mmx410mmx44mm |
|
Temperature Range |
0~45'C (Operation); -20~80'C (Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
