SC-1314 16IN1 MPEG-2/H.264 SD Encoder
SC-1314 16IN1 MPEG-2/H.264 SD Encoder (16*AV+ASI IN, ASI/IP OUT)
Overview

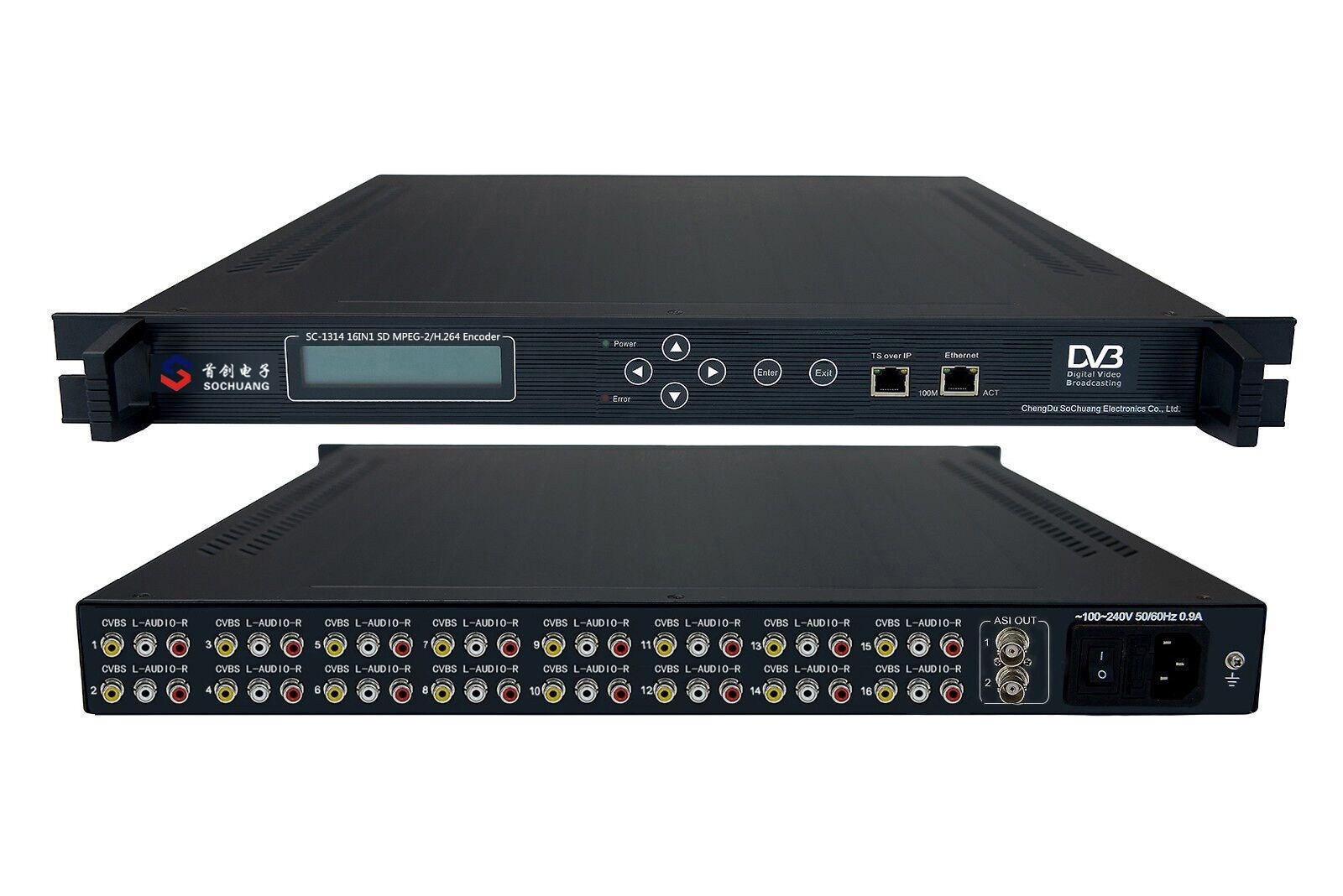

16IN1 MPEG-2/H.264 SD Encoder supports SD MPEG-2/H.264 video and MPEG-1 audio encoding. It has 16*CVBS video, 16 pairs of unbalanced audio input, ASI and IP (TS over UDP) output. The encoder suits 1U rack and can be configured by front panel LCD and NMS (network management software). Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.
Main Feature
1. MPEG-2/H.264 video and MPEG-1 audio encoding
2.16*CVBS video and 16 pairs of unbalanced audio (high-fidelity mono/stereo) input
3. Support PAL and NTSC video formats
4. Support ASI/IP (TS over UDP, multicast/unicast) output
5. LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
|
Input |
Video Signal |
16*CVBS |
|
Audio Signal |
16 pairs of unbalanced audio |
|
Video Coding |
MPEG-2/H.264 |
|
Resolution |
Standard |
NTSC(720*480, PAL(720*576) |
|
Audio Coding |
Sampling |
32KHz, 44.1KHz, 48KHz |
|
Code Rate |
32, 48, 56, 64, 128, 192, 256, 384, 448Kbps |
|
Property |
MPEG-1 Layer2, 1 stereo or dual-channel |
|
Output |
2*ASI |
1 as mirror, DVB standard, BNC interface |
|
IP |
1000mbps RJ45, TS over IP/UDP/MPTS/SPTS |
|
Output BitRate |
1.0~15Mbps continuously adjustable per channel |
|
Control |
NMS (Ethernet port, RJ-45), Keyboard + LCD |
|
General Features |
Size |
482mm*410mm*44mm |
|
Temperature Range |
0~45'C (Operation); -20~80'C (Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
