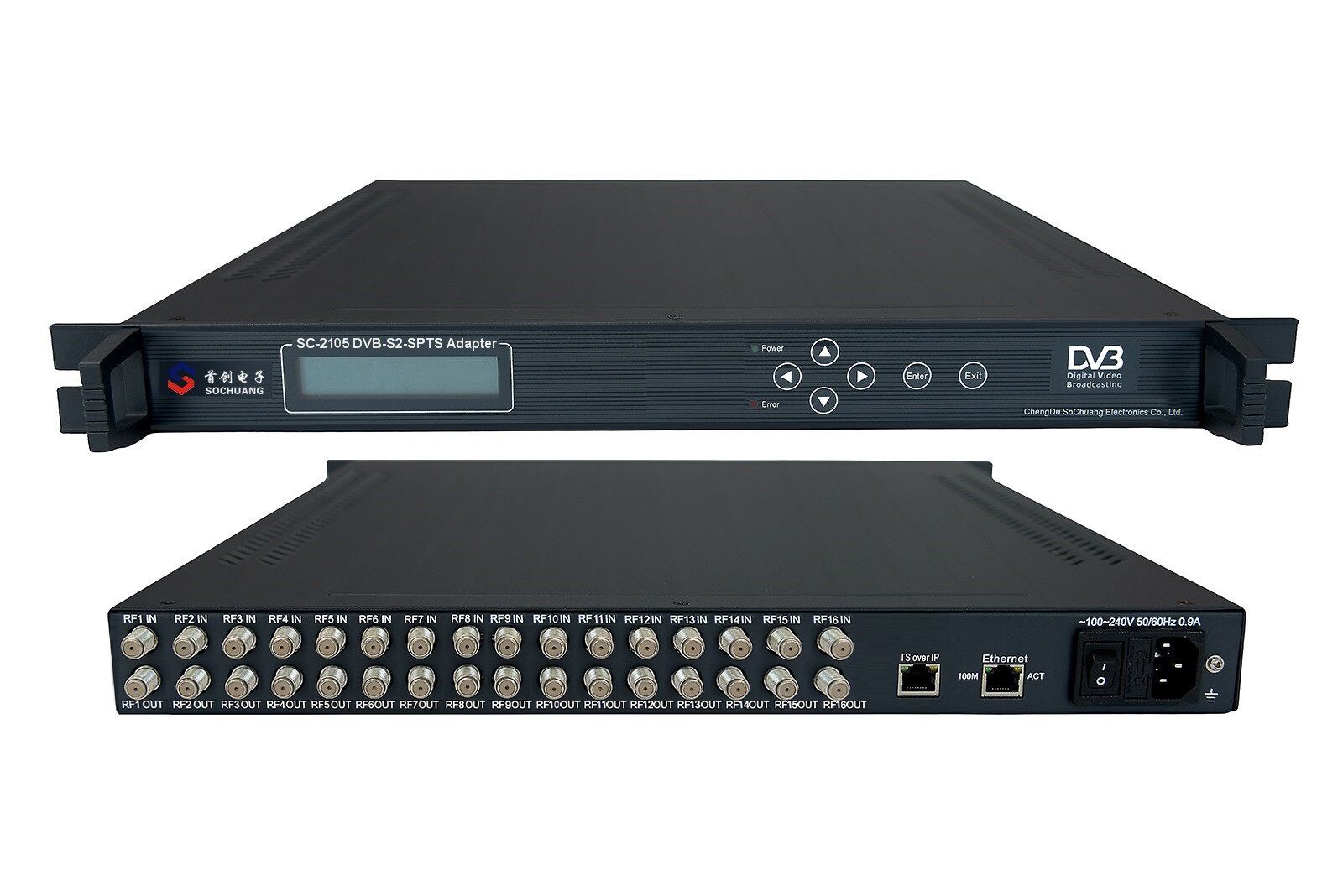

SC-2105 16*DVB-S/S2-128*SPTS IP Gateway
Overview
16*DVB-S/S2 to 128*SPTS IP Gateway can receive 16*DVB-S/S2 signal (RF) transponders and output 128*SPTS IP transport stream (TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.
Main Feature
1. 16*DVB-S or 16*DVB-S2 (optional) input
2. 128*SPTS (Gigabit/Unicast/TS over IP/UDP) output
3. Support max 188*3 package
4. LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
|
Input |
16*RF |
F-head |
|
Demodulation Mode |
DVB-S/S2, QPSK/8PSK |
|
Symbol Rate |
1~45 Mbaud/s |
|
Frequency Range |
950MHz~2150MHz |
|
Error Correction Coding |
RS coding 188/204 |
|
Output |
IP |
128*SPTS/Unicast/1000BASE-T, TS over IP/UDP |
|
Control |
NMS (Ethernet port, RJ-45), Keyboard + LCD |
|
General Features |
Size |
482mm*410mm*44mm |
|
Temperature Range |
0~45'C (Operation); -20~80'C(Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
