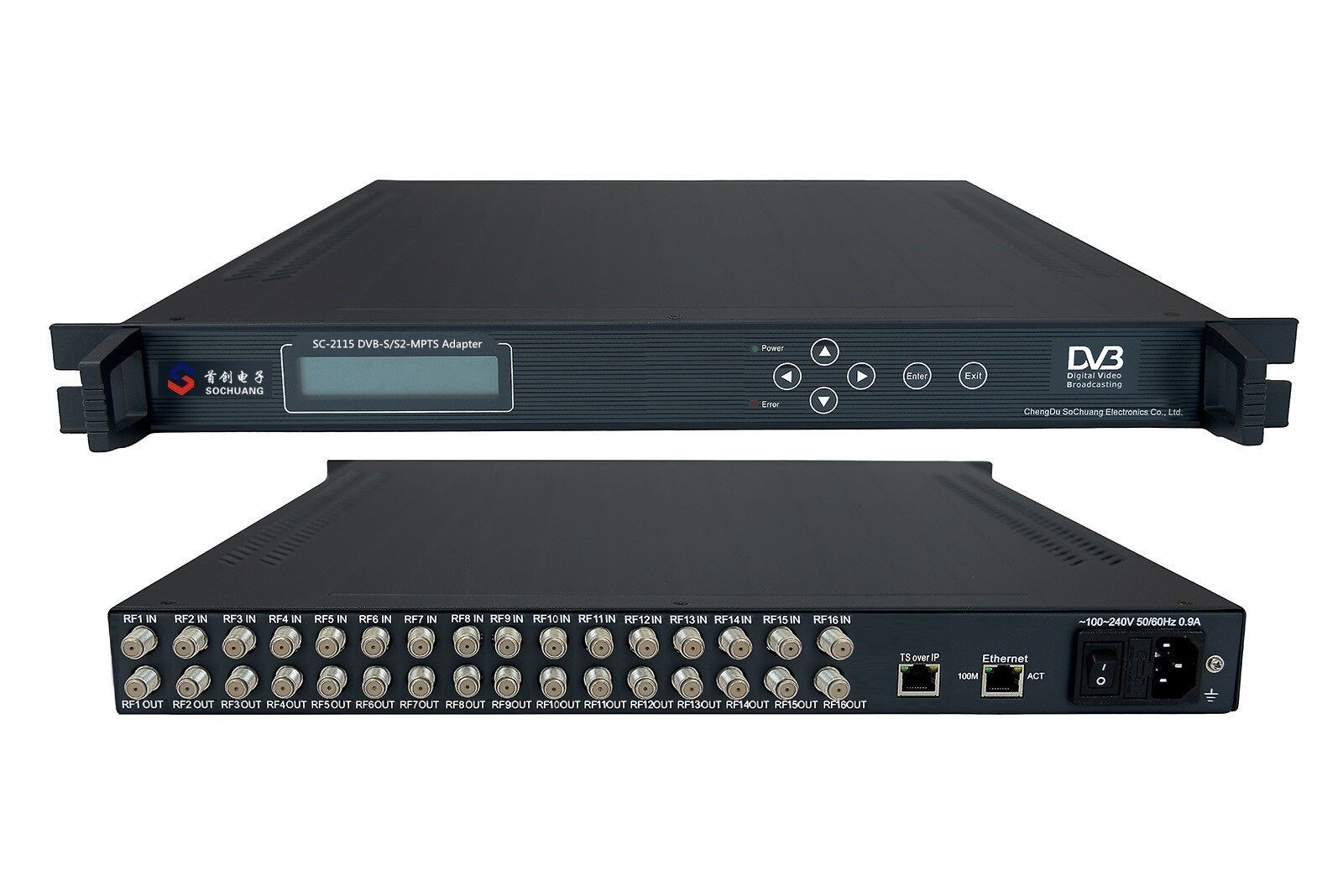

SC-2115 16*DVB-S/S2 to 16*MPTS IP Gateway











                      SC-2115 16*DVB-S/S2-16*MPTS IP Gateway





Overview

16*DVB-S/S2 to 16*MPTS IP Gateway can receive 16*DVB-S/S2 signal (RF) transponders and output 16*MPTS IP transport stream (TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.





Main Feature

1. 16*DVB-S or 16*DVB-S2 (optional) input
2. 16*MPTS (Gigabit/Unicast/TS over IP/UDP) output
3. Support max 188*7 package
4. LCD/Keyboard control by front panel and network management by Ethernet



Technical Specification

Input
16*RF
F-head
Demodulation Mode
DVB-S/S2, QPSK/8PSK
Symbol Rate
1~45 Mbaud/s
Frequency Range
950MHz~2150MHz
Error Correction Coding
RS coding 188/204
Output
IP
16*MPTS/Unicast/1000BASE-T, TS over IP/UDP
Control
NMS (Ethernet port, RJ-45), Keyboard + LCD
General Features
Size
482mm*410mm*44mm
Temperature Range
0~45'C (Operation); -20~80'C (Storage)
Power
100-240VAC, 50Hz, 25W
