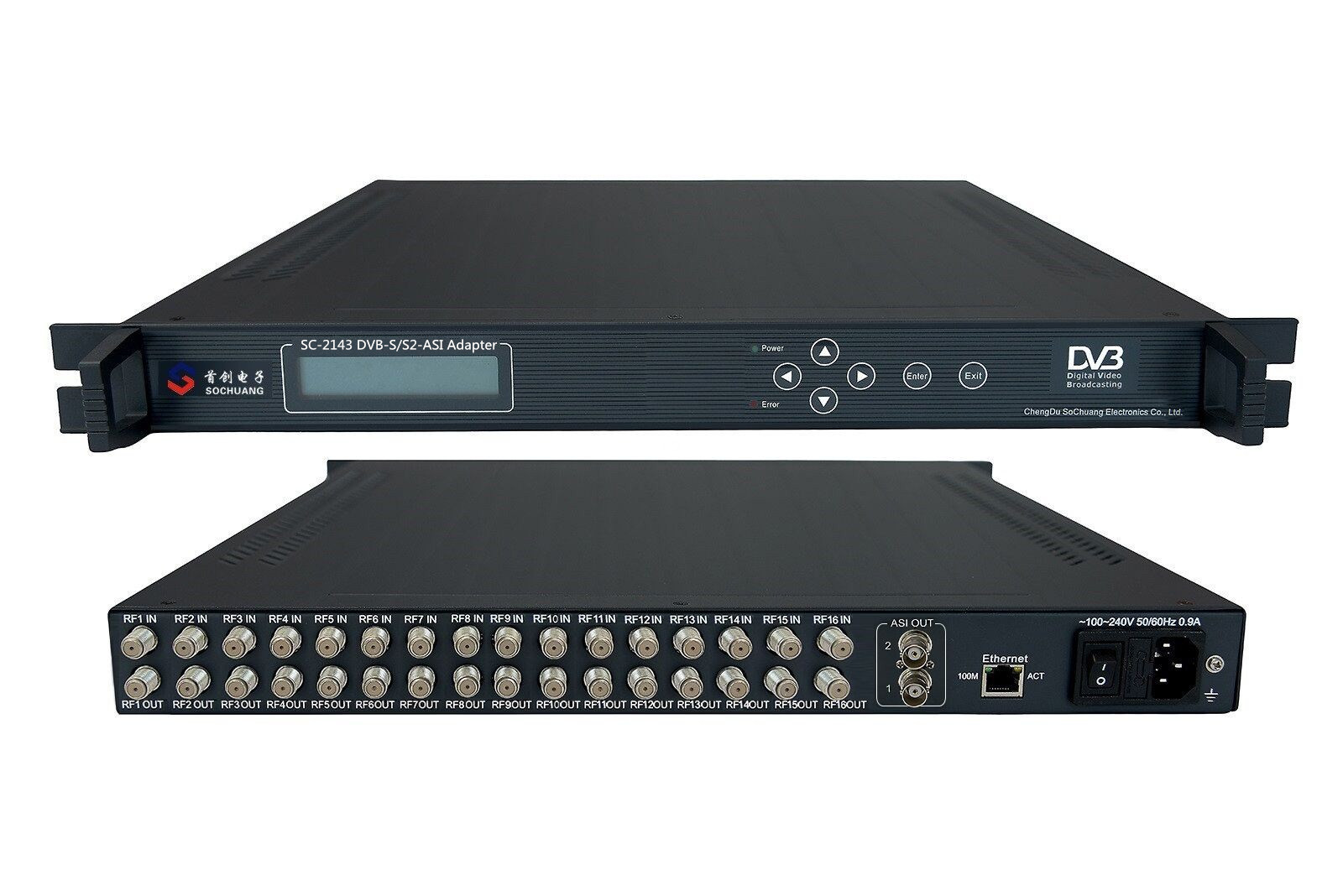

SC-2143 16IN1 DVB-S/S2 Satellite Receiver

SC-2143 16IN1 DVB-S/S2 FTA IRD

Overview

SC-2143 16IN1 DVB-S/S2 Satellite Receiver (IRD with Multiplexer) can receive 16 channels DVB-S/S2 signals (RF) and output 2*DVB transport streams (TS/ASI). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.

Main Feature

1. In-built multiplexer

2. NIT insert and PSI table edit

3. 16*DVB-S/S2 RF input

4. LCD/Keyboard control by front panel and network management by Ethernet

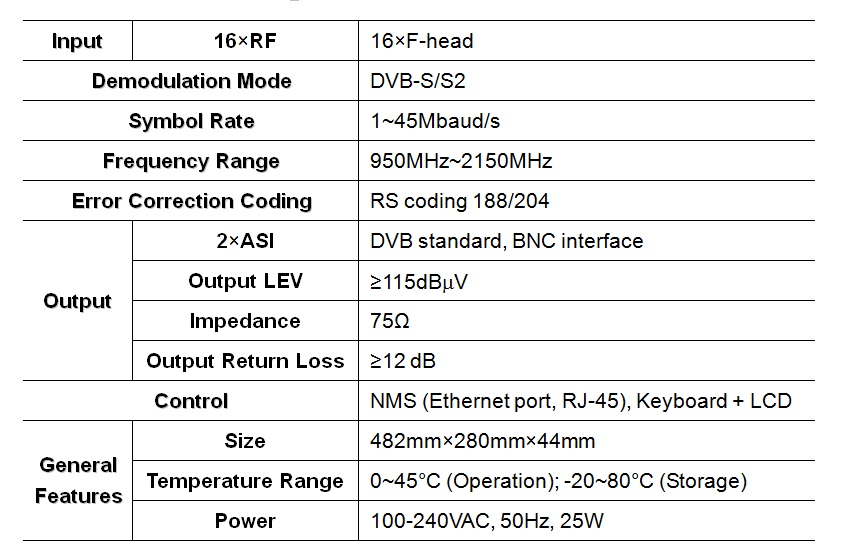

Technical Specification
