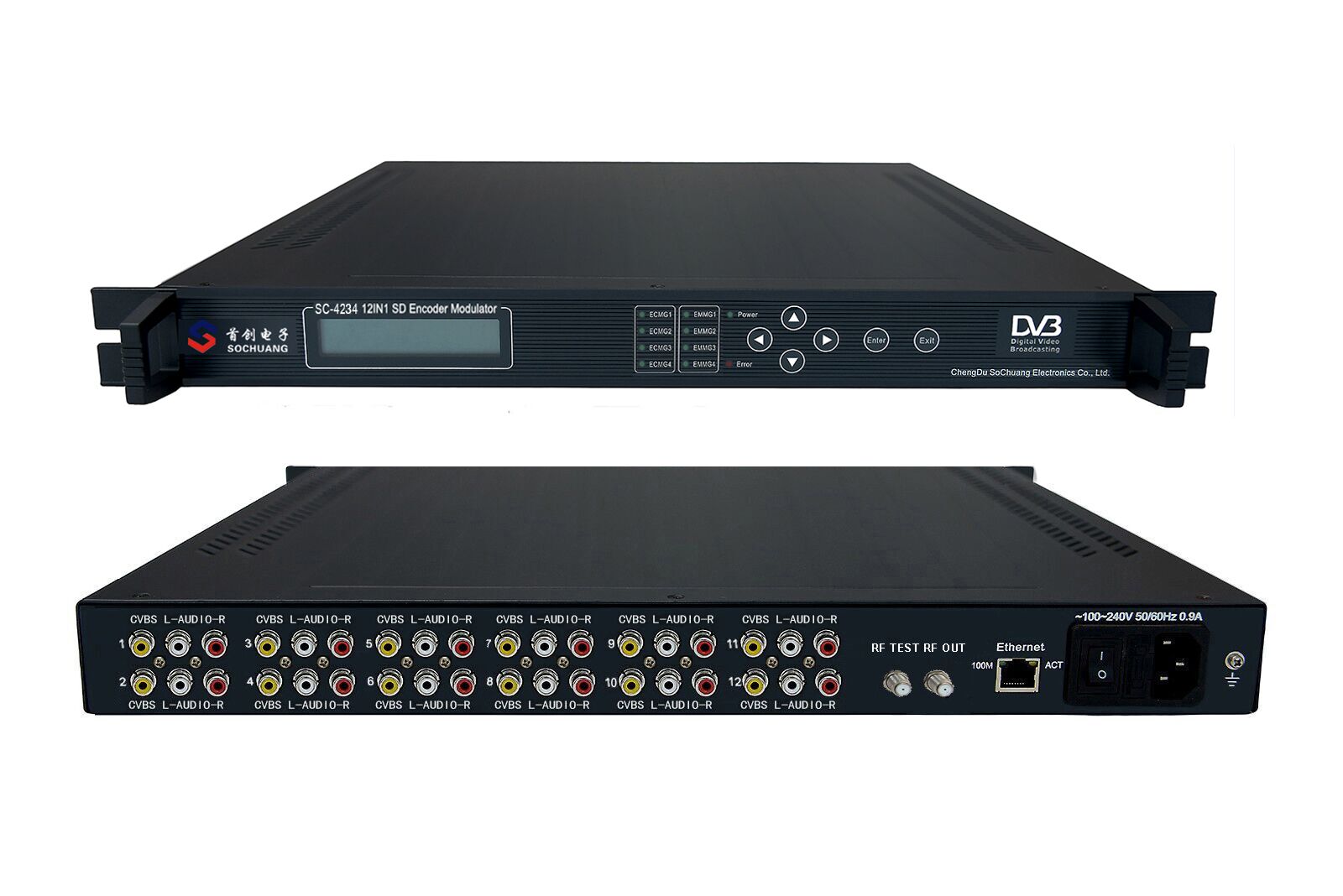

SC-4234 12IN1 DVB-C SD Encoder Modulator






            SC-4234 12IN1 DVB-C SD Encoder Modulator with Scrambler





SD Encoder Modulator supports 12*CVBS and 12 pairs of unbalanced audio and 1*RF output. After coded and modulated, the input signal can be directly output or mixed output with original TV signal. It can be widely used in home entertainment, security and protection monitoring, hotel LCD panels, shopping mall advertising and other similar places.
1. Integrated encoder, and modulator
2. 12CVBS+Audio
3. DVB-C RF out
4. RF Range: 47-870Mhz
5. Keyboard+LCD control and network management

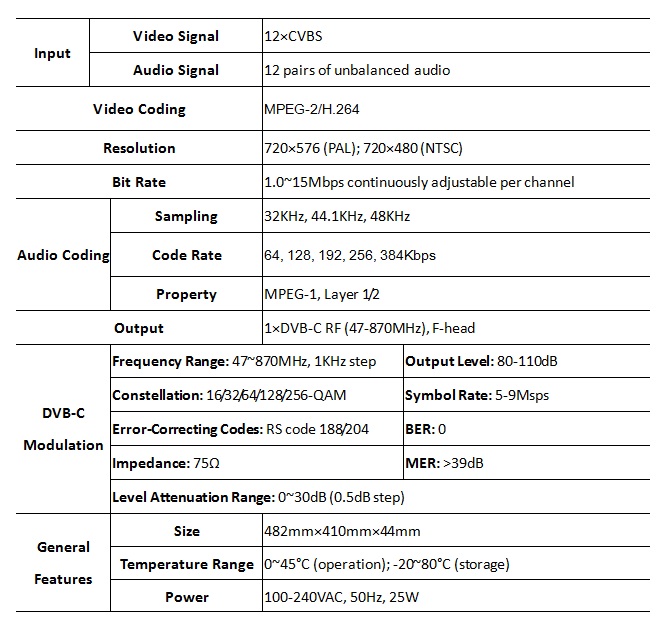

Technical Specification
