SC-4256 8IN1 H264 Mpeg4 HD Encoder DVB-T Modulator/Multi Channel HDMI to RF Converter For DVB Headend,Hotel HDTV,/Cable Digital TV
SC-4256 8IN1 DVB-T HD Encoder Modulator
Overview

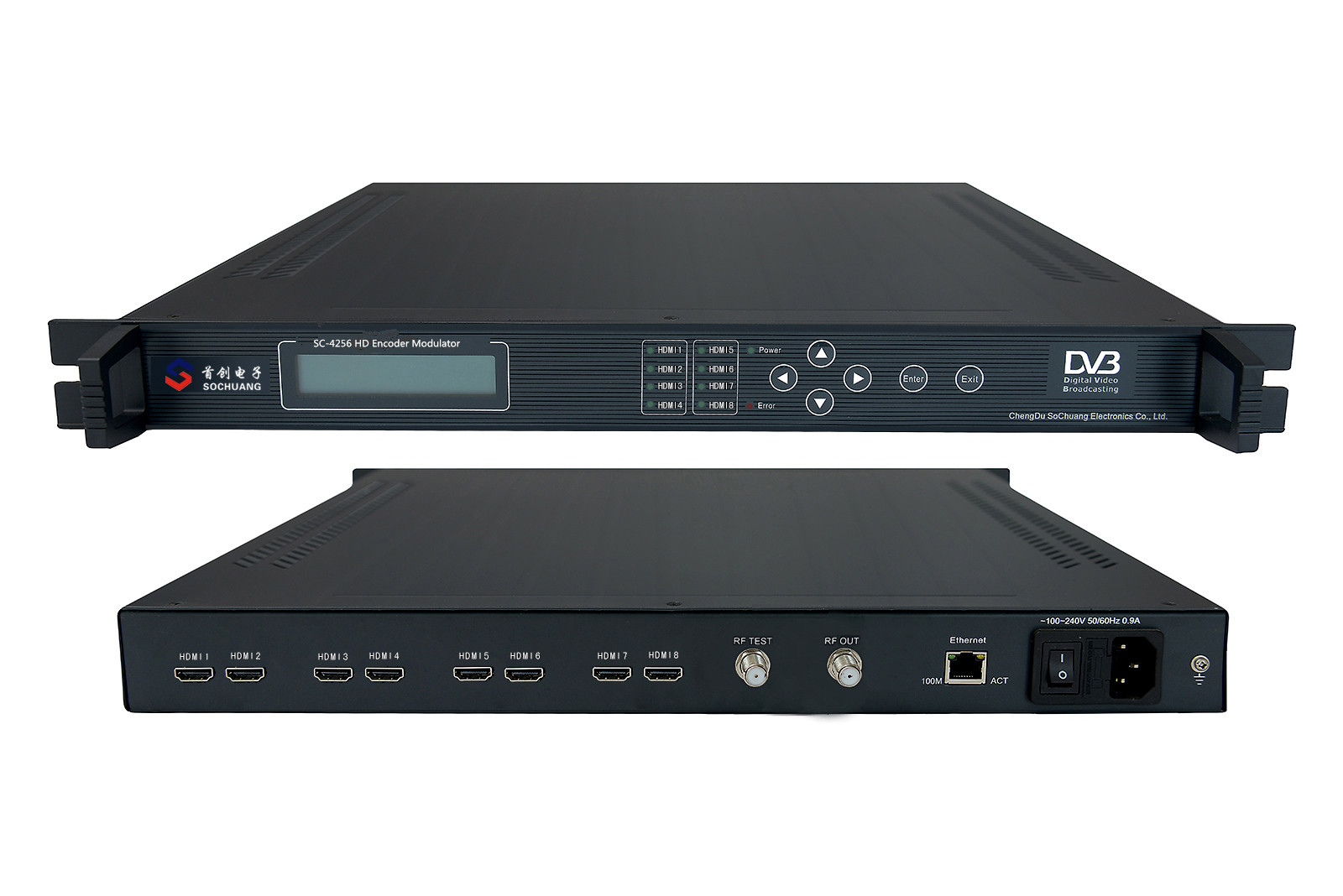

SC-4256 8IN1 HD Encoder DVB-T Modulator supports 8*HDMI input and 2*RF (DVB-T) output. After coded and modulated, the input signal can be directly output or mixed output with original TV signal. It suits 1U rack and can be configured by front panel LCD and NMS (network management software). Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.
Feature
1. Integrated encoder and modulator
2. 8*HDMI input
3. 2*DVB-T RF out
4. RF Range: 36-900Mhz
5. Keyboard+LCD control and network management

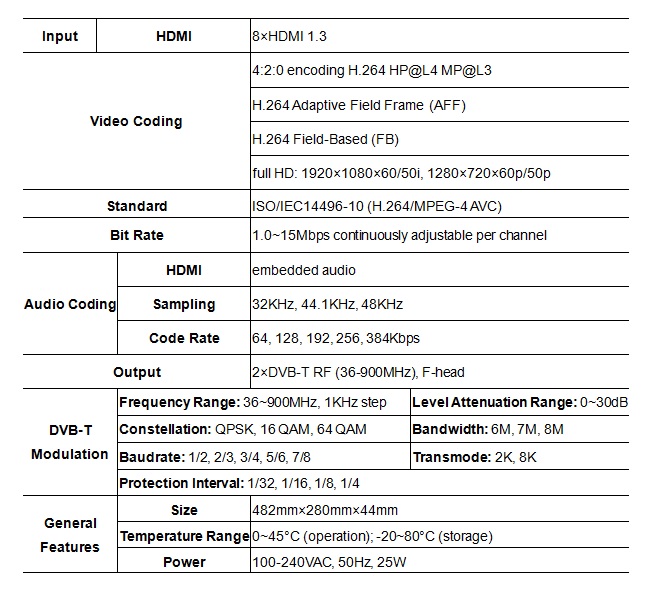

Technical Specification
