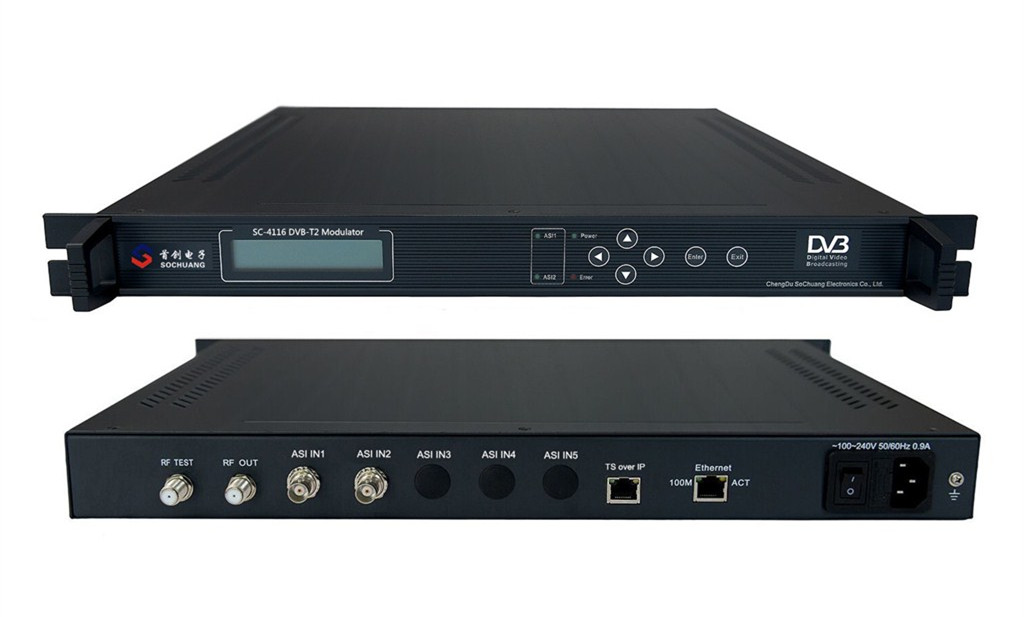

SC-4116 DVB-T2 Modulator

Overview

SC-4116 DVB-T2 Modulator complying with DVB-T2(EN302 755) standard, it supports 1*ASI+IP input and 1*DVB-T RF output, with its advanced modulating, this modulator can effectively make use of the ground spectrum resources and make it is possible to provide reliable signals for fixed, mobile and portable devices, which allows it to be widely used in setting up digital broadcasting network and suitable for HFC broadband digital MMDS system.

Comply with DVB-T2(EN302 755) standard

FFT: 1K,2K,4K,8K

Bandwidth: 5M,6M, 7M, 8M

MER: >=42db

Frequency Range: 36~900MHz, 1Khz step

Signal real-time monitor

LCD/Keyboard control by front panel and network management by Ethernet

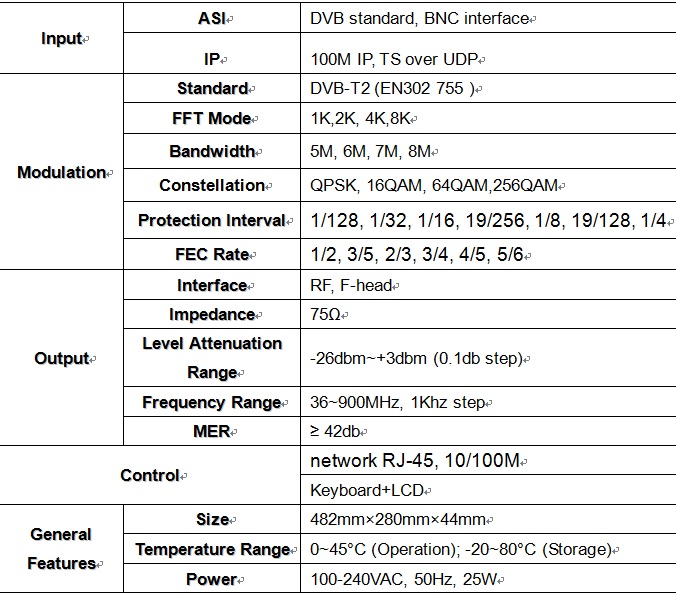

Technical Specification
