SC-4215 4*QAM to 4*QAM Transmodulator with CI

Overview

SC-4215 4*QAM to 4*QAM Trans-modulator support 4*QAM transponders and 1*ASI input, then multiplex and scramble the input signal to output selected programs through 4*QAM RF channels. It has 4*CI interfaces and supports multi-type of CAM cards. It can finish the function of trans-modulation and frequency shift for QAM/DVB-C signal and now it is widely used in digital cable TV frequency shift and AD insertion.

Main Feature

Support variable symbol rate, frequency and multi-constellation

Common interface with 4 slots (PCMCIA) supports multi-type of CAM cards

4*DVB-C RF and 1*ASI input

Support 4*CAS/SMS

Super cache, anti-burst stream

PCR correction

Real-time transport stream monitoring

LCD/Keyboard control by front panel and network management by Ethernet

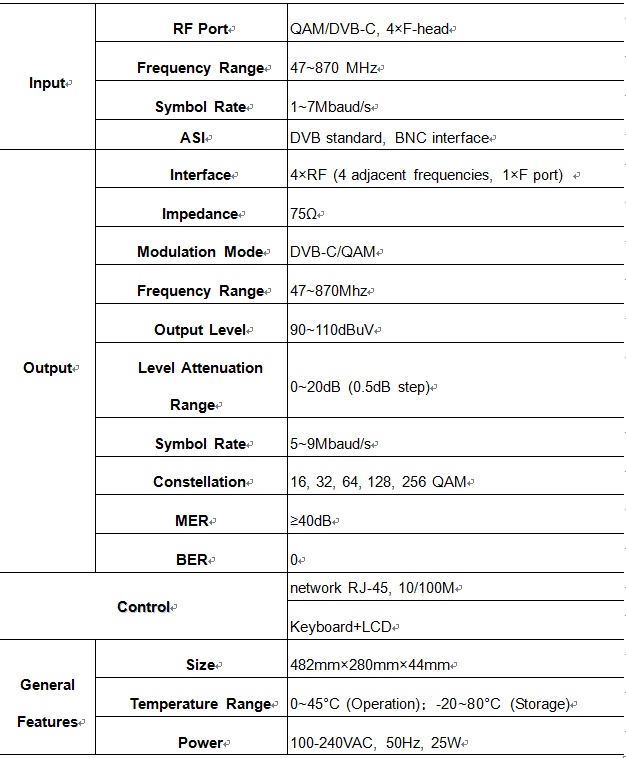

Technical Specification
