SC-1401 8IN1 ASI MPEG-2/H.264 Transcoder (ASI in, ASI/IP/MPTS/STPS out)
Overview

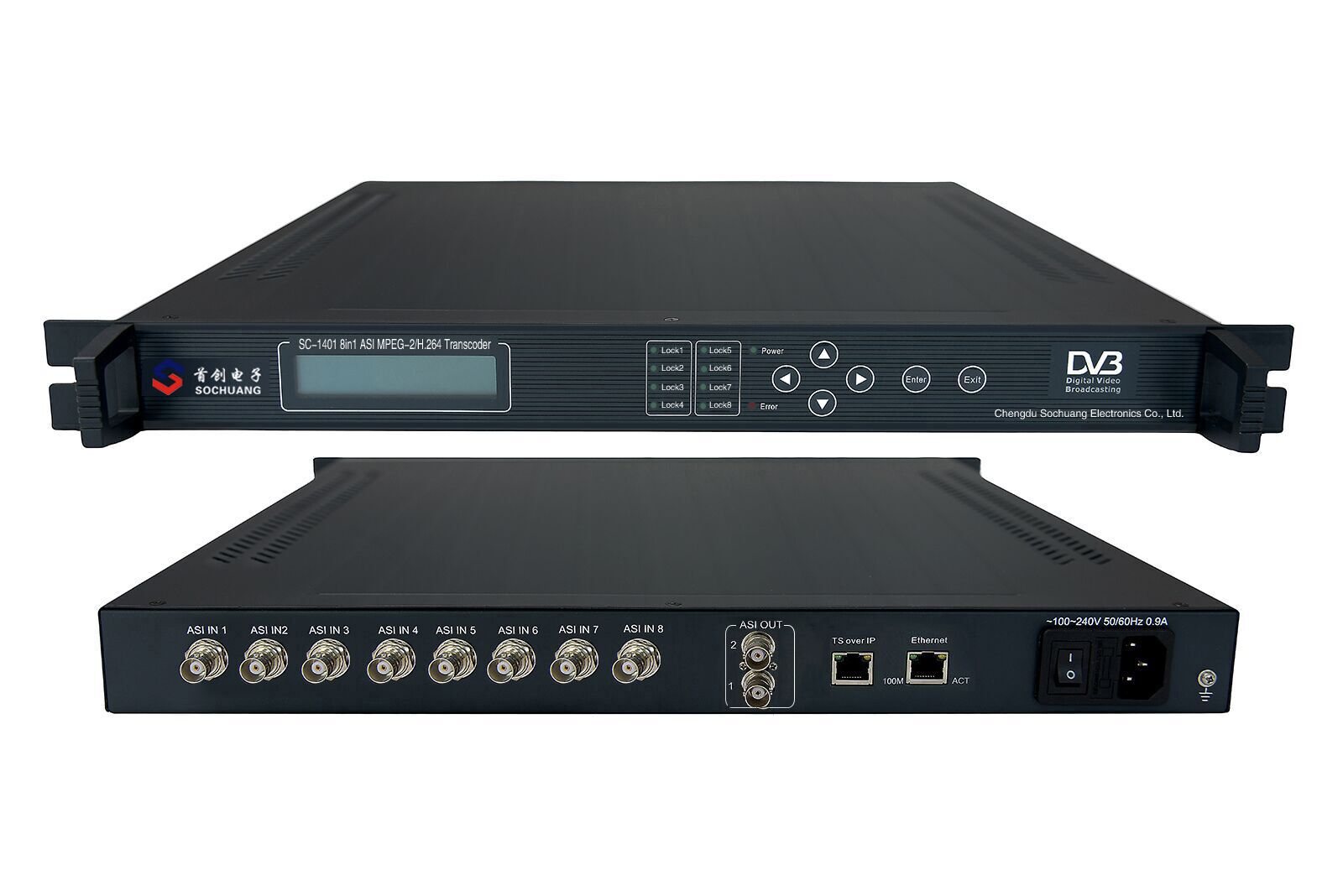

SC-1401 8IN1 SD/HD ASI Transcoder supports MPEG-2 to MPEG-4/H.264, MPEG-2 to MPEG-2, MPEG-4/H.264 to MPEG-2, and MPEG-4/H.264 to MPEG-4/H.264. It has 8*ASI input interfaces, and 1*ASI and IP (TS over UDP) output. The transcoder suits 1U rack and can be configured by front panel LCD and NMS (network management software).
Main Feature
1. Transcoder: MPEG-2 to MPEG-4/H.264, MPEG-2 to MPEG-2, MPEG-4/H.264 to MPEG-2, MPEG-4/H.264 to MPEG-4/H.264
2. 8 ASI input and ASI+IP/UDP output
3. LCD/Keyboard control by front panel and network management by Ethernet

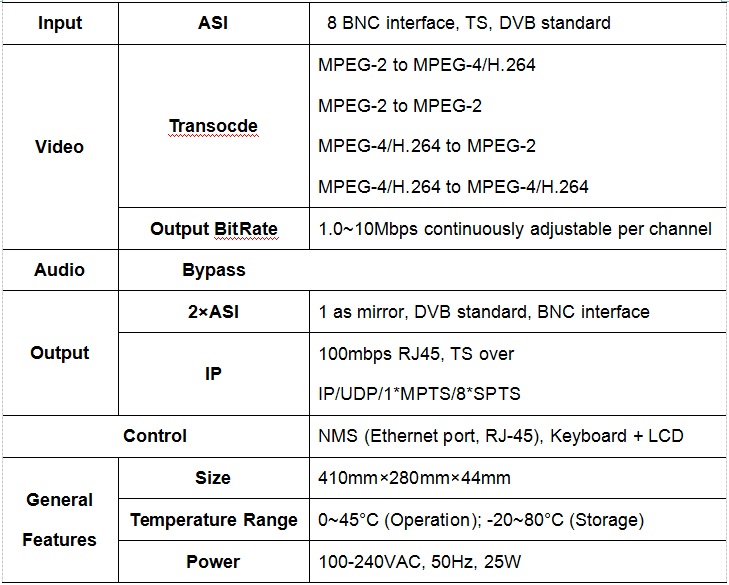

Technical Specification
