SC-4126 8DVB-S/S2-DVB-T TransModulator with MUX/FTA DVB-S/S2 to DVB-T COFDM RF Converter/ DVB Headend, Hotel HD TV/Cable Digital TV







                                             SC-4126 8DVB-S/S2-DVB-T TransModulator with MUX

Overview



8*DVB-S2 to 3*DVB-T Trans-modulator support 8*DVB-S/S2 (QPSK/8PSK) transponders and 1*ASI input, then multiplex input signal to output selected programs through 3*DVB-T RF channels. It provides a cost-effective and stable solution for TV operators to re-distribute programs via HFC network. It suits 1U rack and can be configured by front panel LCD and NMS (network management software). Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.


Feature

1. 8*DVB-S/S2 RF and 1*ASI input
2. Input frequency: 950~2150 MHz
3. Input symbol rate: 1~45 Msps
4. 3 DVB-T RF output
5. Output frequency: 36~900MHz
6. Comply with DVB-T, EN300744
7. LCD/Keyboard control by front panel and network management by Ethernet

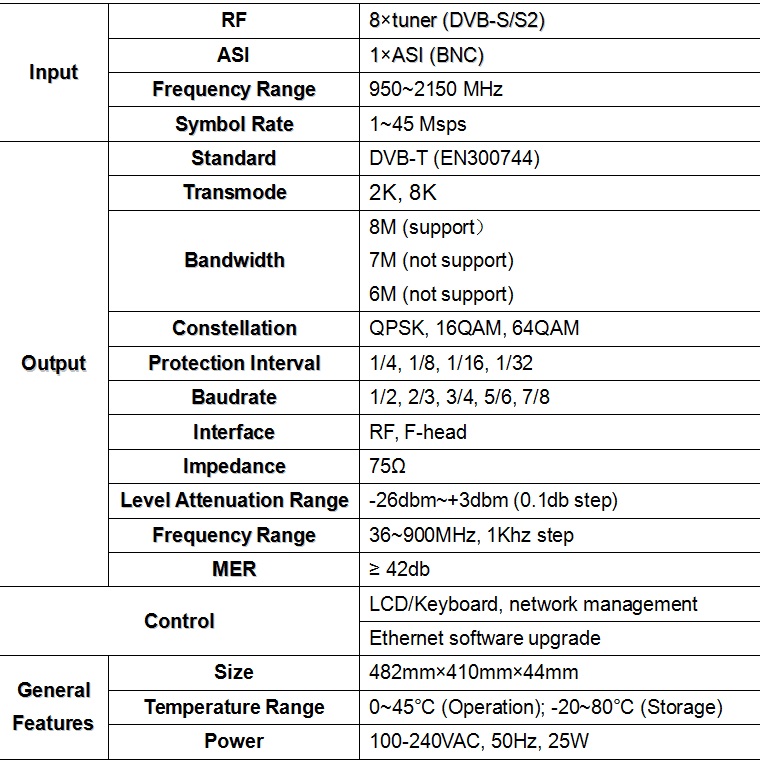

Technical Specification
