SC-4264 8IN1 CVBS DVB-C MEPG2/H.264 SD Encoder Modulator/MultiChannel AV to DVB-C QAM RF Converter/ DVB Headend, Hotel HD TV/Cable Digital TV

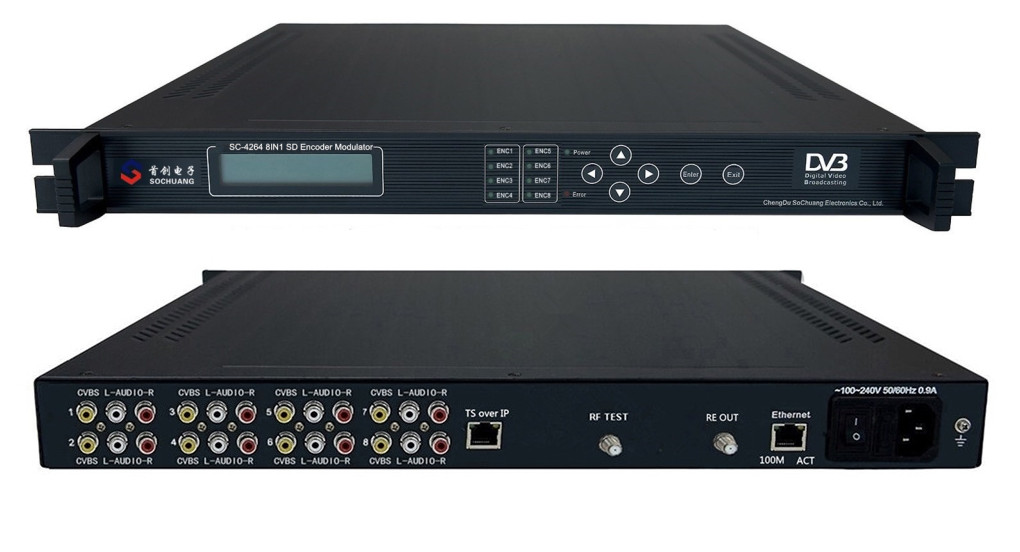

                         SC-4264 8IN1 DVB-C SD Encoder Modulator




SC-4264 SD Encoder Modulator supports 8*CVBS and 8 pairs of unbalanced audio input and 1*RF and IP (100M, TS over UDP) output. After coded, scrambled and modulated, the input signal can be directly output or mixed output with original TV signal. It can be widely used in home entertainment, security and protection monitoring, hotel LCD panels, shopping mall advertising and other similar places.




1.Integrated encoder, scrambler and modulator
2.8CVBS+Audio input
3.DVB-C RF and IP out
4.RF Range: 47-870Mhz
5.Keyboard+LCD control and network management

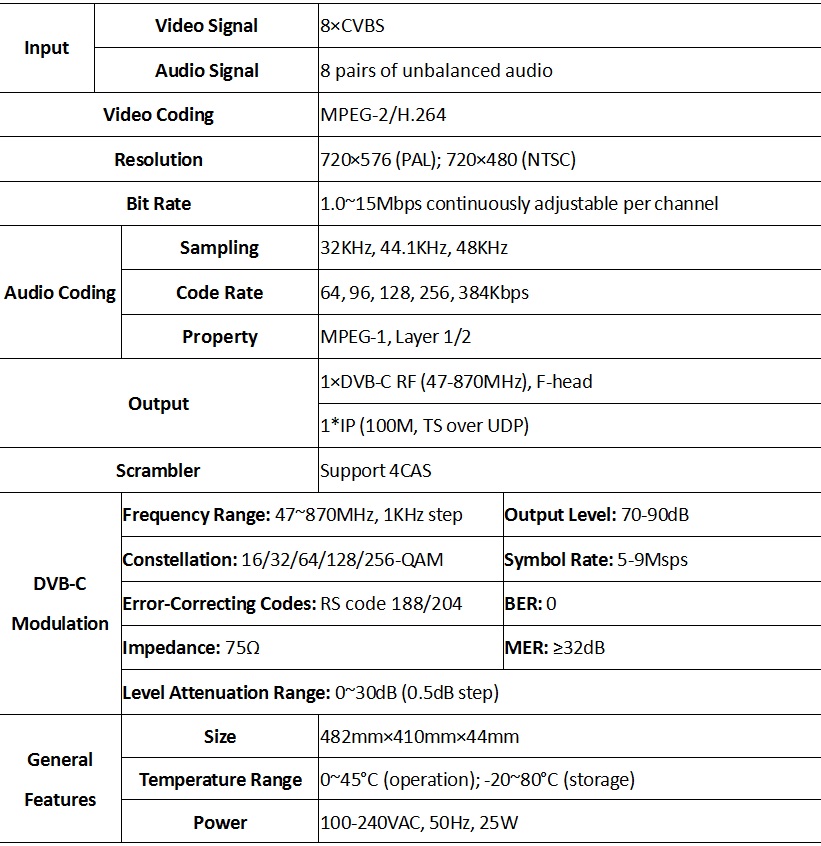

Technical Specification
